Section 1

1.4.16 Bypass Paper Path Inspection and Cleaning

Maintenance Schedule

Clean every 750K cycles.

Replace every 4000K cycles. See Page 4-8.

Procedure

• Inspect the Bypass panel [1], rollers [2], and entrance guide [3] for wear,

damage, and obstructions.

• Inspect the rollers for wear patterns or groves. The surface should be rough

and even. Make sure the rollers are clean. Clean rollers with a soft cloth and

alcohol. See also “Idler Roller Inspection and Cleaning” on page 1-20 and

“Drive Roller Inspection and Cleaning” on page 1-24.

• Raise the panel and ensure the magnet holds it in open [4]. Inspect the path

for obstructions. Clean as needed.

• Close the panel and check that it is flat and that paper will pass under it.

• Ensure the bypass diverter moves freely and returns to the bypass position.

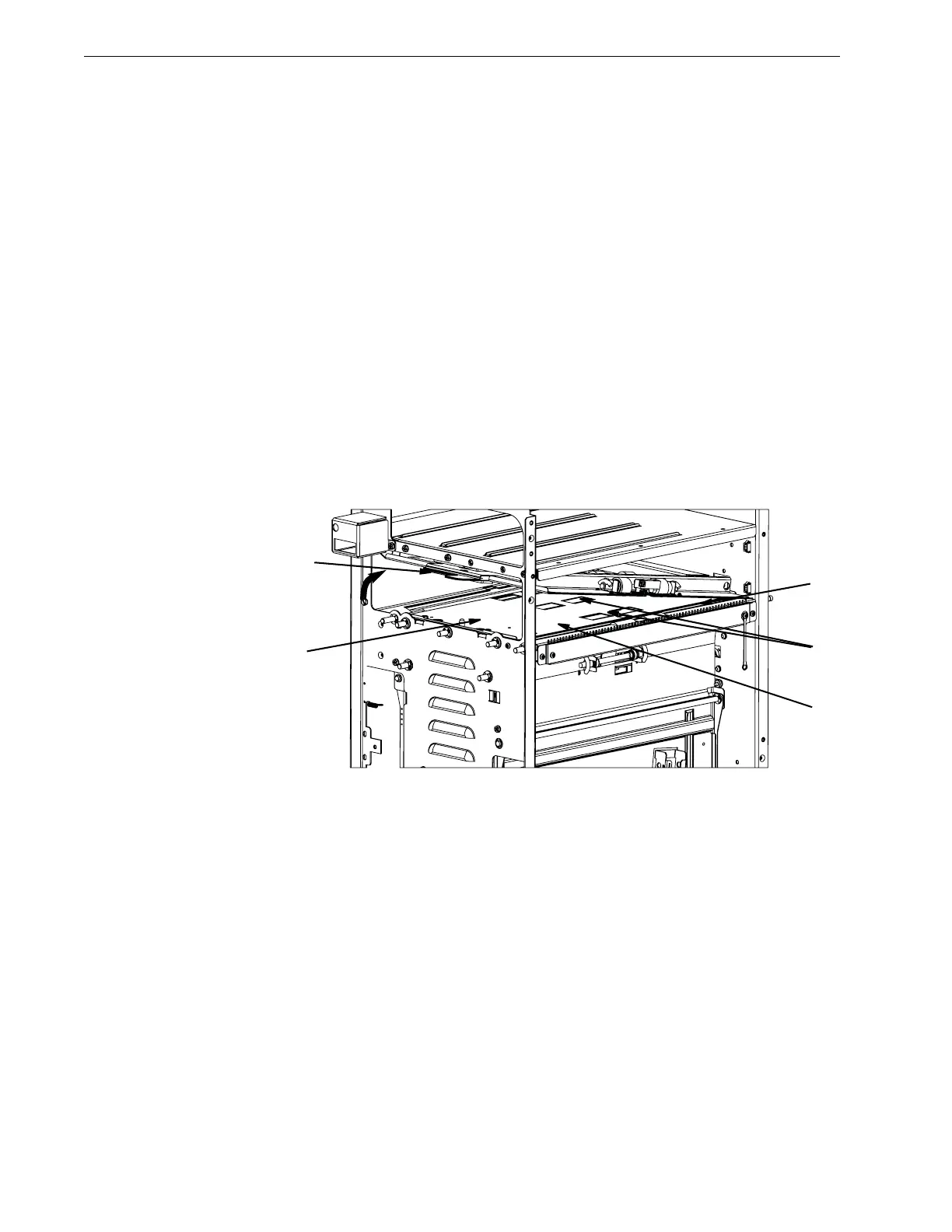

Figure 1.16 Bypass Path Inspection. Shown With Bypass Panel Raised.

[4]

[1]

[2]

[5]

[3]
