Repair and Adjustment Procedures

4.3 Door Latch

Procedure

Ensure the door latch holds the door closed and that the activating bracket tab [1]

depresses the door switch[2]. The tab should press the switch button just so that it

is close to bottoming out.

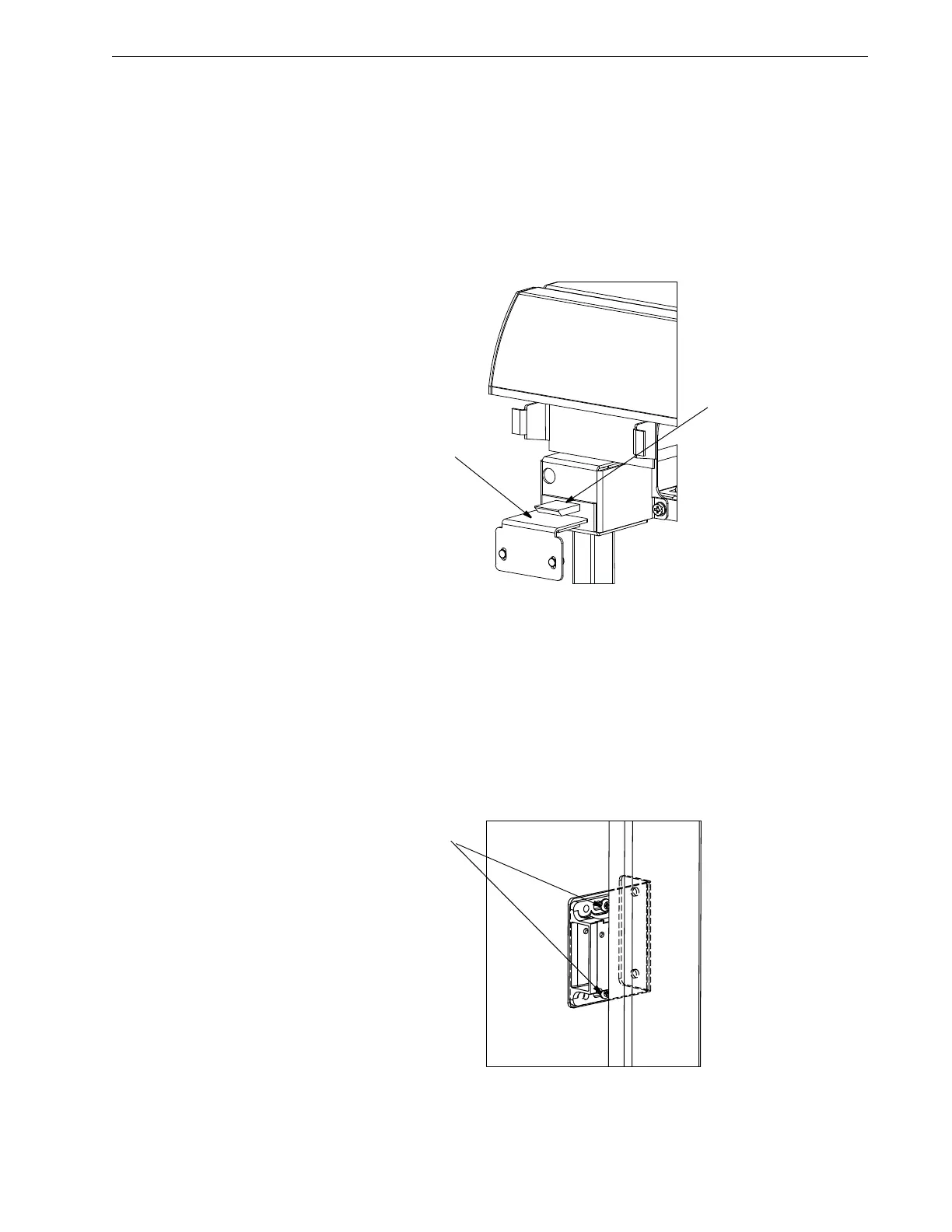

Figure 4.4 Door Latch and Switch.

4.3.1 Door Latch Adjustment

To adjust the door latch:

1. Open the front door.

2. Loosen the two adjustment screws [1] on the door latch.

Figure 4.5 Door Latch Adjustment Screws.

[1]

[2]

[1]
