Section 4
4-18 © Copyright 2009 GBC. All rights reserved. Advanced Punch Service Manual
4.6.2 Aligner Panel Removal
Removing the Aligner panels provides access to the paper path and the Aligner
Green Drive Belt. The procedure is the same for the entrance and exit Aligner
panels except that the exit side has a docking plate which must be removed first.
To remove the Aligner panel:
1. Release the Aligner latch [1].
2. Remove the E-clips from both ends of the Aligner shaft [2].
3. Slide the shaft out the front of the punch.

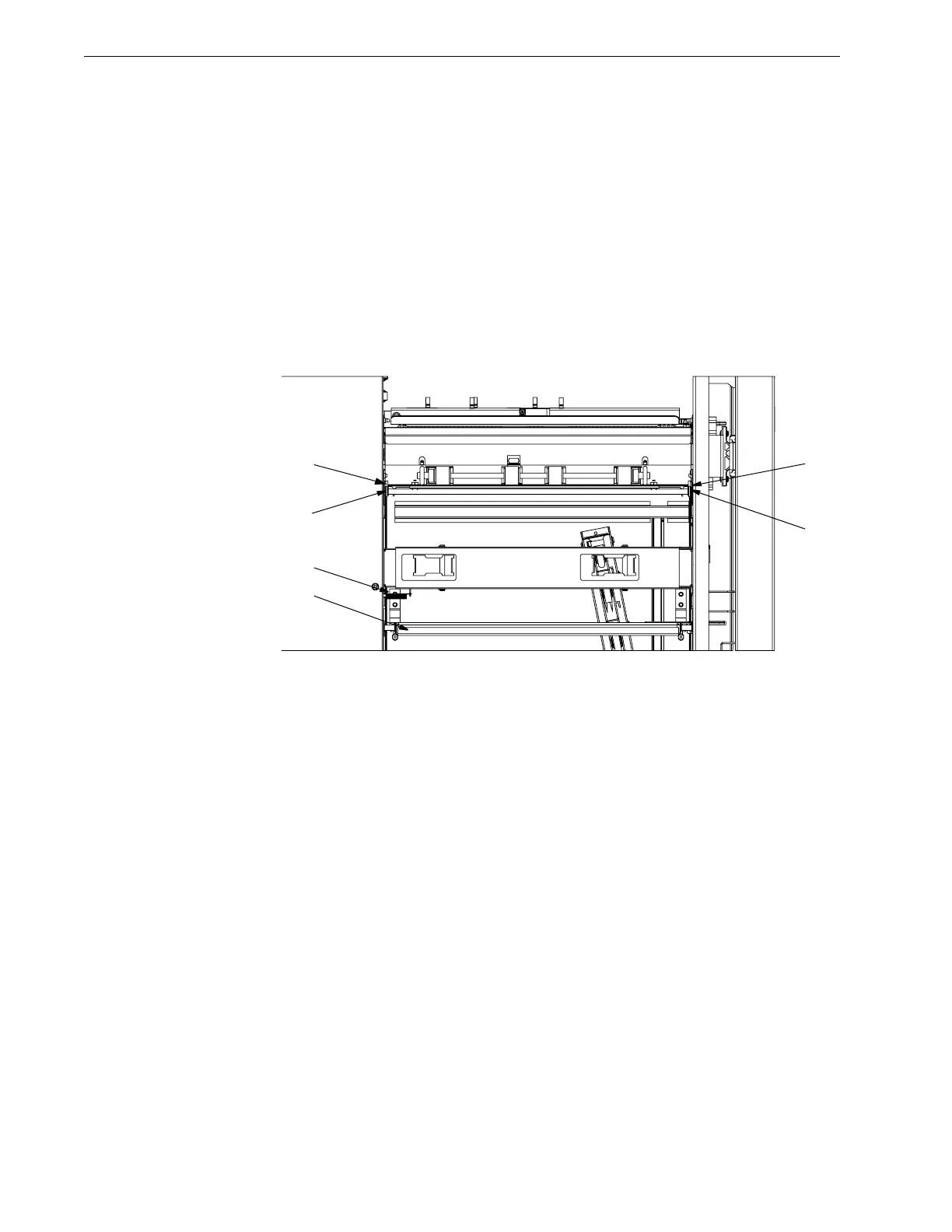

Figure 4.19 Entrance Side Aligner Panel.
[3]
[2]
[3]
[2]
[1]
[5]
