4.9.2 Punch Drive Cam Lubrication
Maintenance Schedule
Lubricate every 750K cycles with Teflon grease.
Procedure
The Punch Drive module must be removed for service. Clean the old grease from the cams
and then apply a light coat of high quality grease (not oil). To remove the module, see
“Punch Module Removal” on page 4-49.

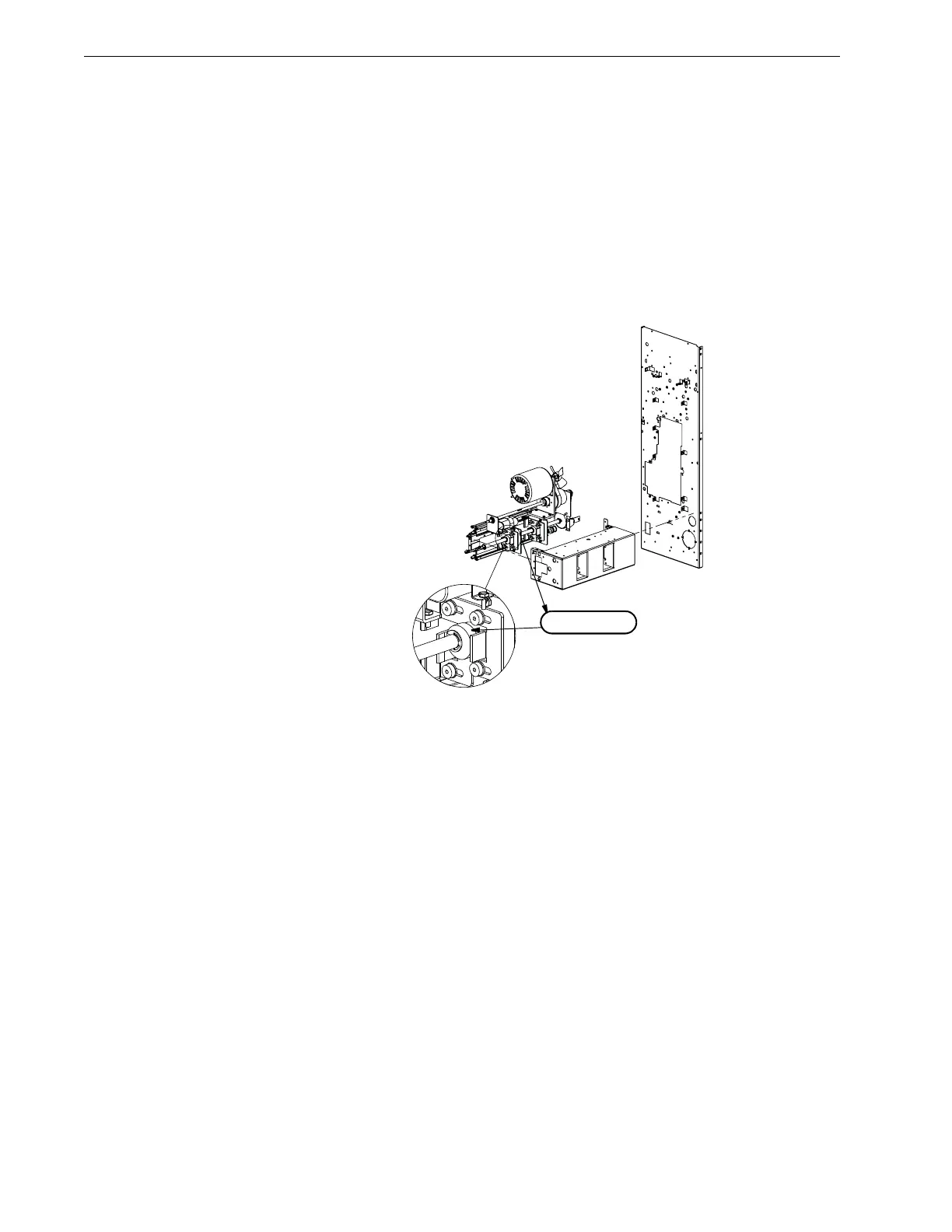

Figure 4.59
Installation Note: Make sure the wires on the rear of the punch are not
obstructing the Die Set or Chip Bin.
