Section 4

4.9.4.2 Punch Module Brake Adjustment

Procedure

The brake can be adjusted without removing the brake from the shaft. The gap

between the brake and the pad is 0.010" (0.25 mm)

To adjust the brake:

1. Loosen the 2 set screws [2] until the brake pad slides freely on the shaft.

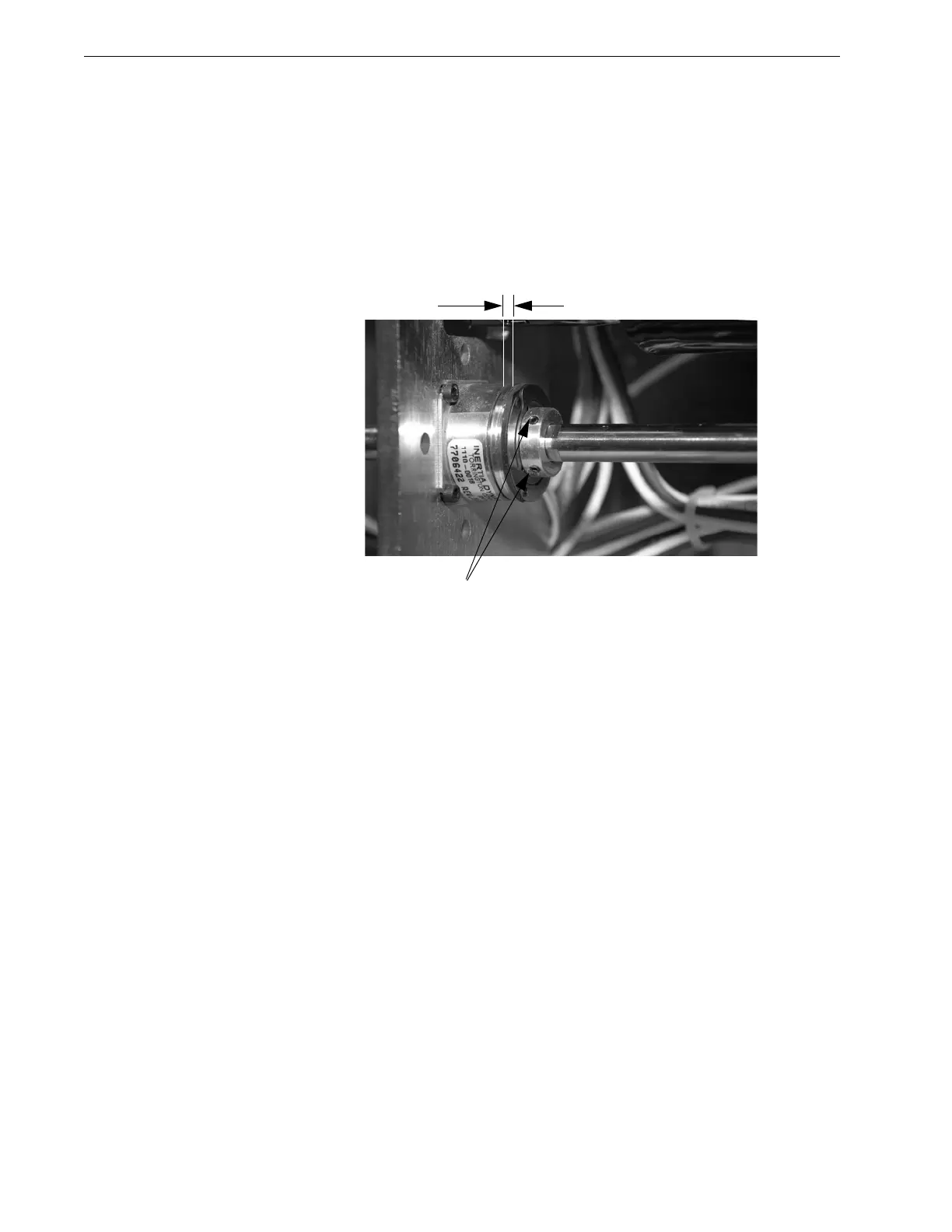

Figure 4.70 Brake Assembly Gap Adjustment.

2. Use a 0.010" feeler gage to set the gap between the brake and the brake pad.

3. Tighten the 2 set screws and check the gap.

[1]

0.010"
