Section 1

1.2 Paper Jam Service Action

To clear a paper jam, first press the Stop button on the printer and then check the

printer screen to see the area of the paper jam.

If the paper jam is in the printer or finisher only, follow the information on the

screen to clear the paper jam. If the screen shows a paper jam in the punch, follow

this sequence.

To clear a paper jam in the punch:

1. Open the punch cabinet door.

2. Ensure the Chip Bin is not overflowing.

3. Turn punch knob [1] anticlockwise until the punch is in its home position [2].

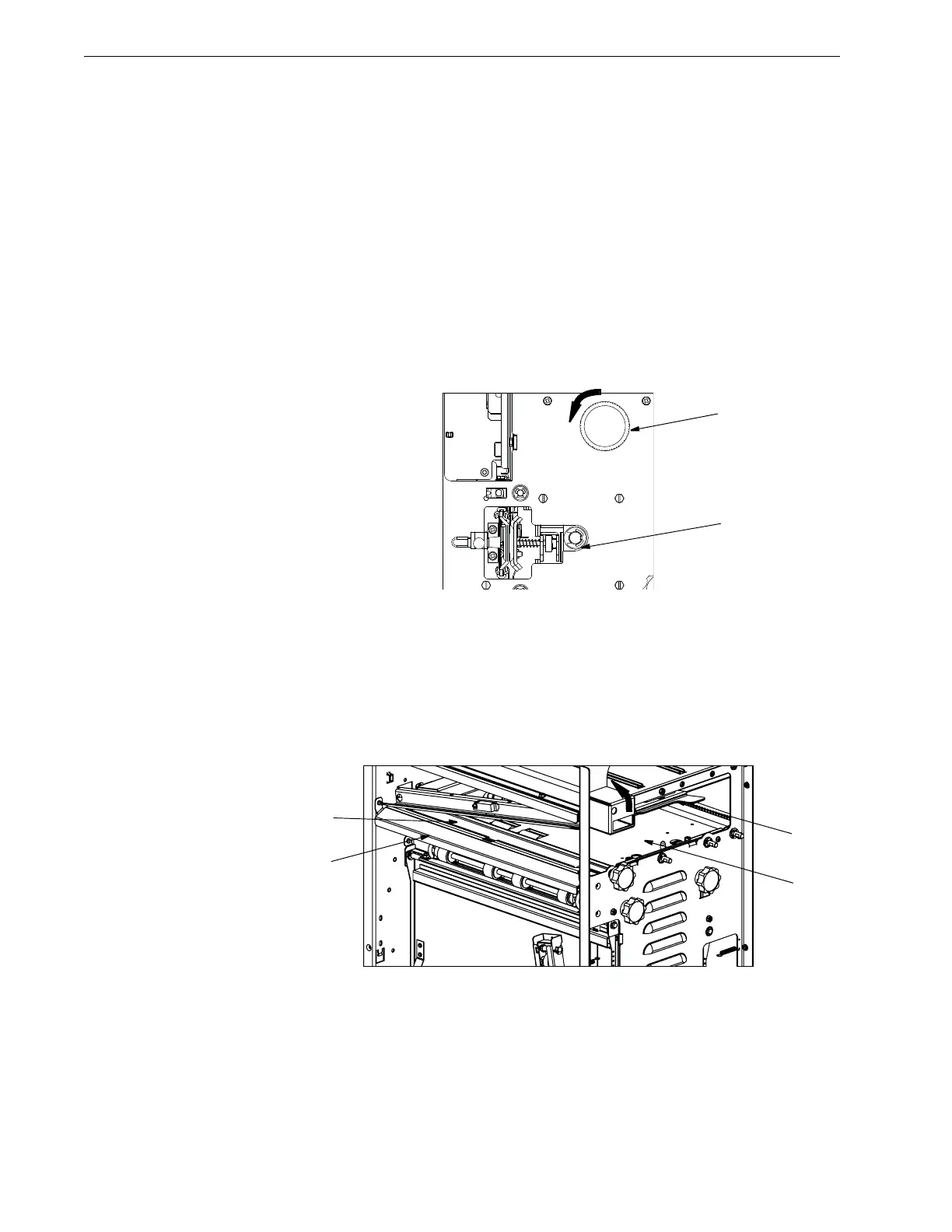

Figure 1.1 Setting the Punch to Its Home Position.

4. Open the Bypass panel cover [1] and check for obstructions in the Bypass [2].

5. Ensure the Entrance Guide is clear [3].

6. Ensure the Diverter is clear [4].

Figure 1.2 Clearing The Bypass.

[1]

[2]

[1]

[2]

[4]

[3]
