Repair and Adjustment Procedures

4.8.2 Solenoid Cleaning and Inspection

Maintenance Schedule

Clean every 750K cycles.

Procedure

Clean per the maintenance schedule and any time the Back Gauge is pulled out

of the punch. Inspect for damaged or worn parts. The only repairable part is

spring replacement. See “Solenoid Spring Replacement” on page 4-46. Replace

Back Gauge if solenoid is inoperative.

To clean the solenoid with the Back Gauge out of the punch:

1. Clean with a vacuum cleaner and canned air. See also “Back Gauge Solenoid

Inspection and Cleaning” on page 1-20.

2. Inspect for dirt or obstructions, wear or damage or missing springs.

Note: Do not apply lubricants to the solenoid or linkage.

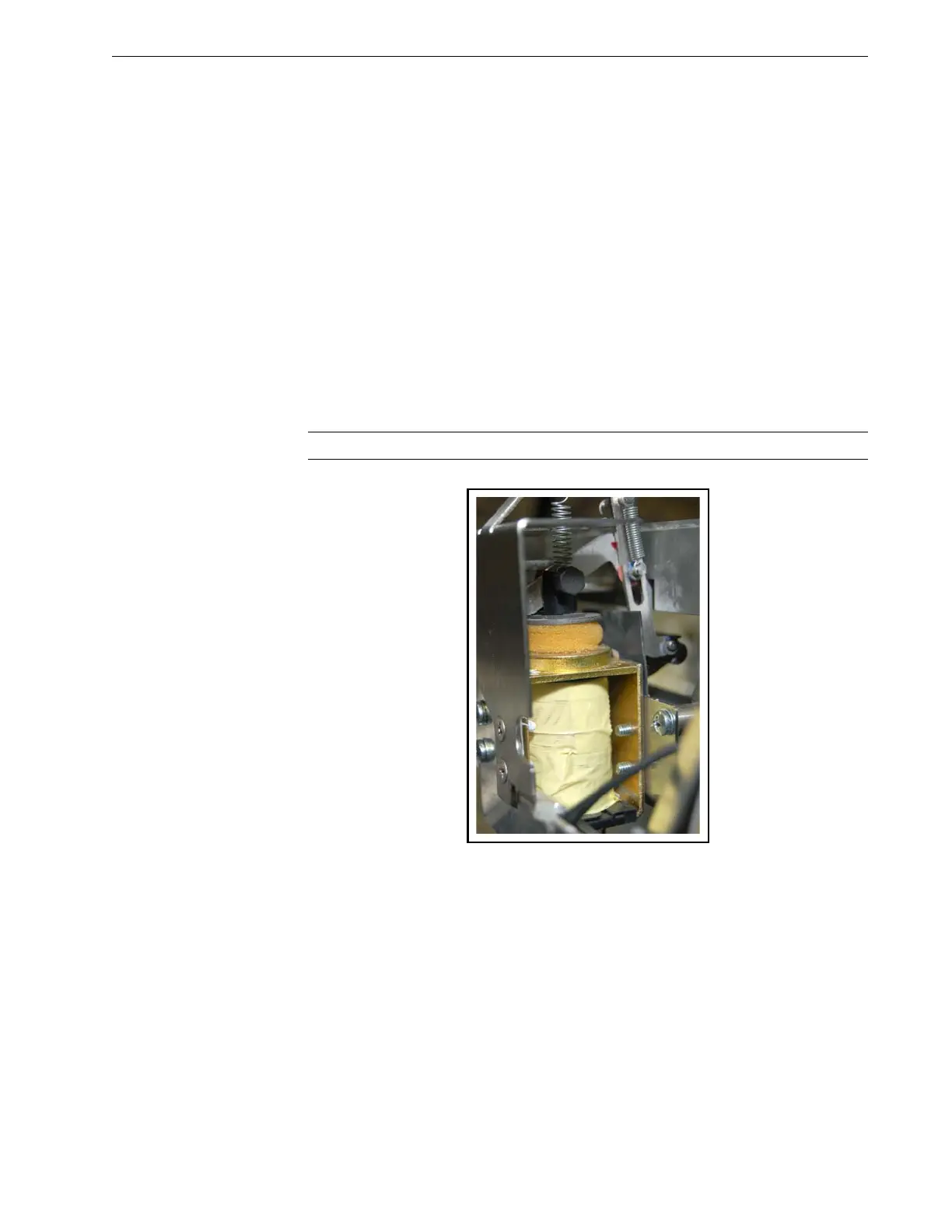

Figure 4.48 Back Gauge Solenoid.
