Maintenance

1.4.11 Back Gauge Solenoid Inspection and Cleaning

Maintenance Schedule

Clean every 750K cycles.

Procedure

• Inspect and ensure the Back Gauge solenoid linkage moves freely. Press

linkage down and release [1]. Linkage should return.

• Clean out the solenoid and surrounding area with a vacuum cleaner and

canned air [2]. Make sure the solenoid is clean and dry.

Note: Do not apply lubricants to the solenoid or linkage.

To remove and inspect the back gauge, see “Back Gauge Assembly” on page 4-

36 and “Back Gauge Removal” on page 4-37.

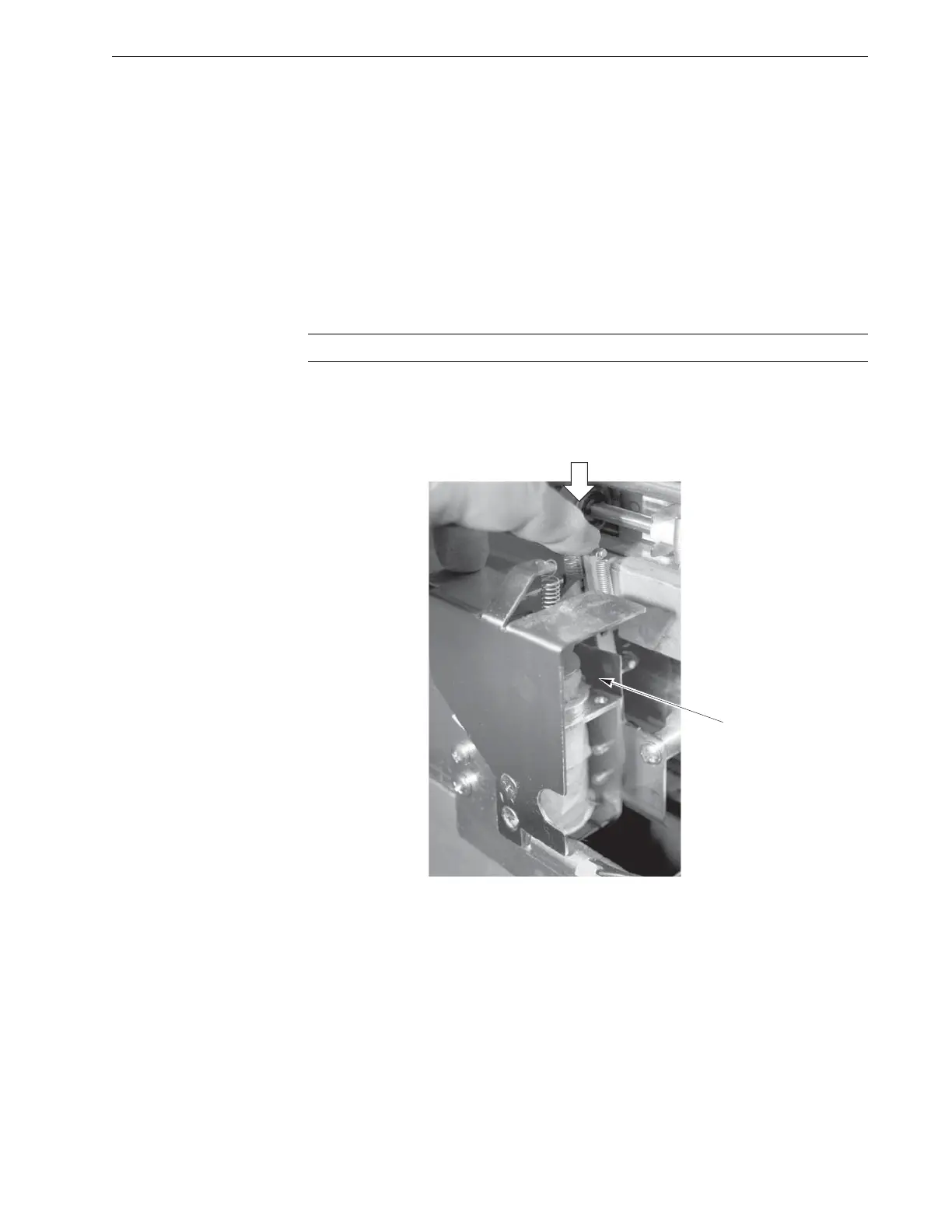

Figure 1.15 Inspect and Clean Back Gauge Solenoid.

[1]

[2]
