Section 4

4.4 Bypass Panel

Maintenance Schedule

Clean every 750K cycles. Refer to Section 1.4.16.

Tools Needed

• Phillips screwdriver or 1/4" nut driver

• Flat bladed screwdriver

• Needle nose pliers

Procedure

Separate the punch from the printer and remove the rear cover. See Section 4.1

and Section 4.1.2.

4.4.1 Bypass Panel Removal

To remove the Bypass panel:

1. Disconnect the grounding strap by removing the screw on the exit side of the

bypass [1].

2. Unplug the exit side sensor at the rear frame [2].

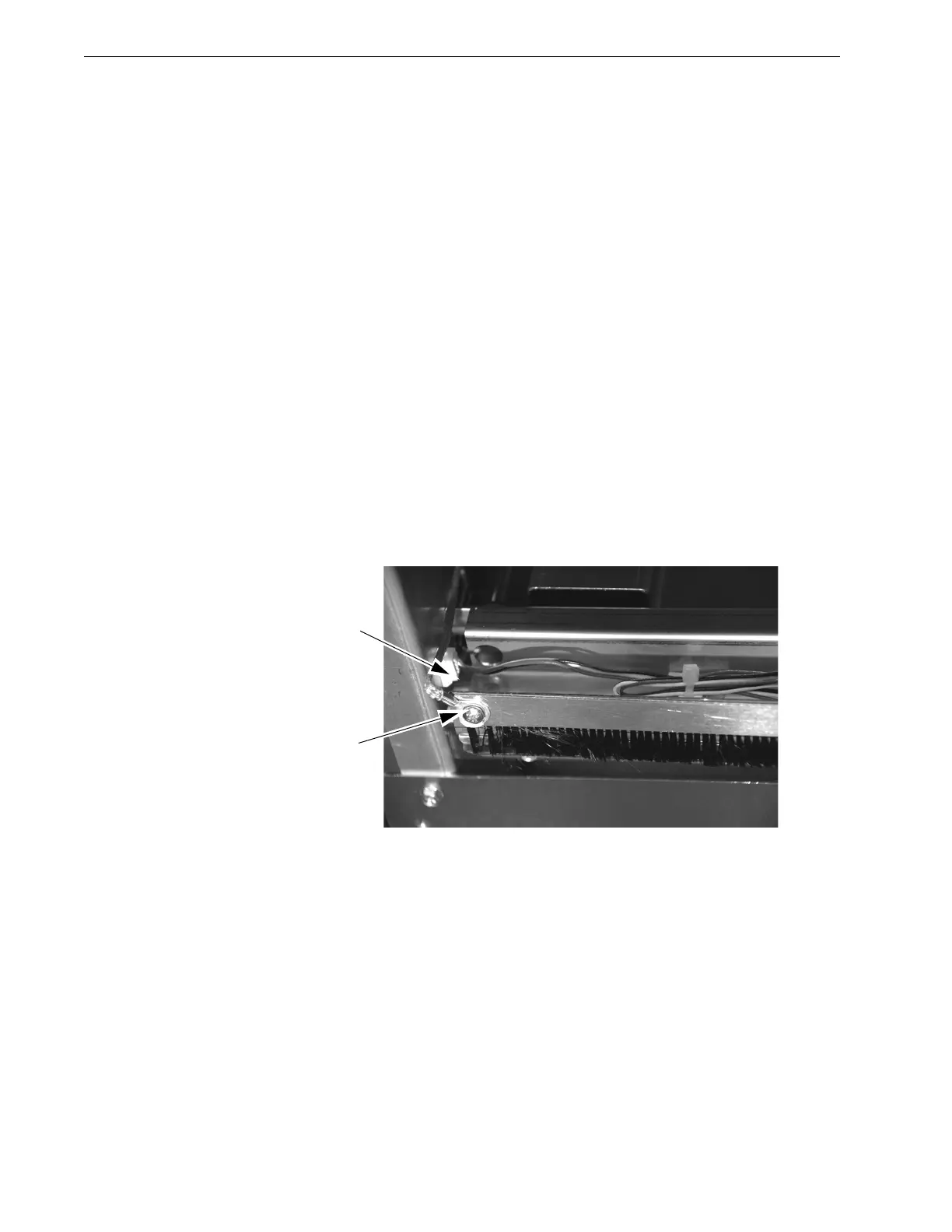

Figure 4.8 Disconnect the Grounding Strap and Unplug the Sensor.

[1]

[2]
