1.4.10.2 Aligner Green Drive Belt Maintenance
Maintenance Schedule
Inspect and clean every 750K cycles.
Replace every 4000K cycles.
Procedure
• Ensure the Green Drive Belts are clean.
• Inspect for frayed edges and wear.
To clean the Green Drive Belts:
1. Clean Green Drive Belt [1] with a plastic scouring pad or 3M Scotchbrite Pad.
2. Use the drive knob [2] to turn the belt.

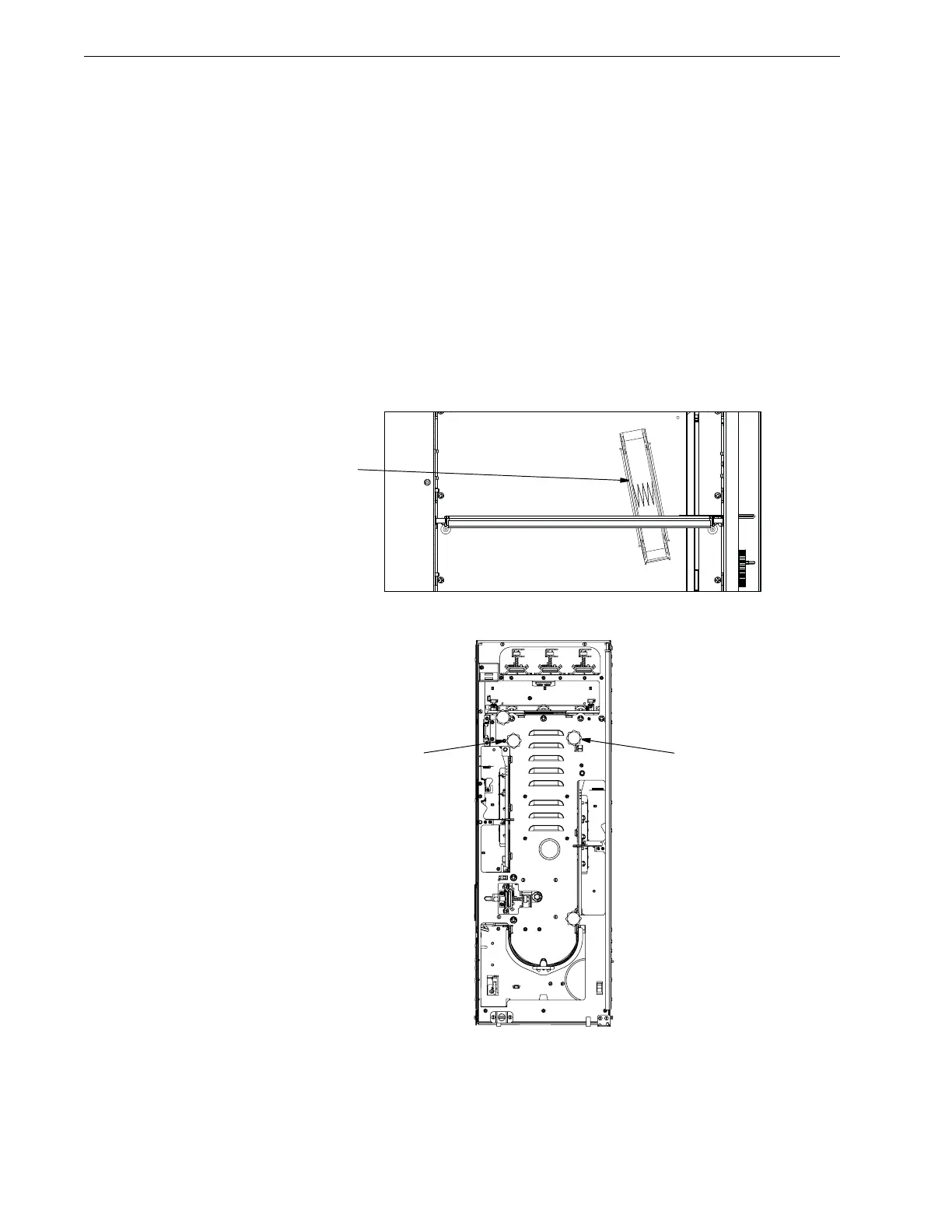

Figure 1.14 Cleaning Green Drive Belt.
To adjust or replace the Green Drive Belt, see “Aligner Drive Belt (Green Belt)
Replacement” on page 4-20.
