3. Loosen the locking nut [1] of the castor.

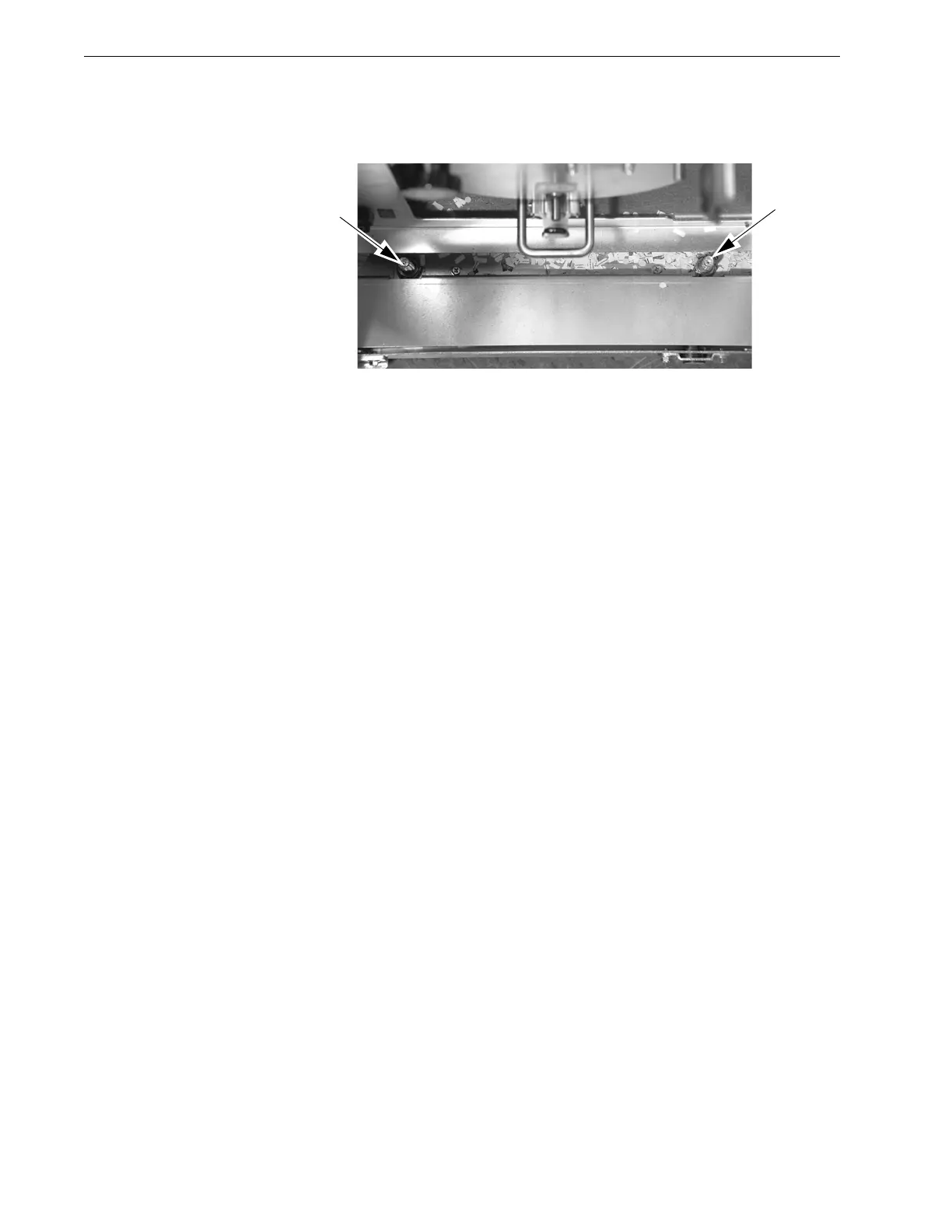

Figure 4.3 Castors Locking Nuts.
4. From below the frame and at the top of the castor [2], adjust the height of the
castor as needed.
5. Check the level and adjust as necessary.
6. Tighten the locking nut [1].
7. Ensure punch is level and in line with printer and finisher.
8. Replace rear cover.
