Section 4

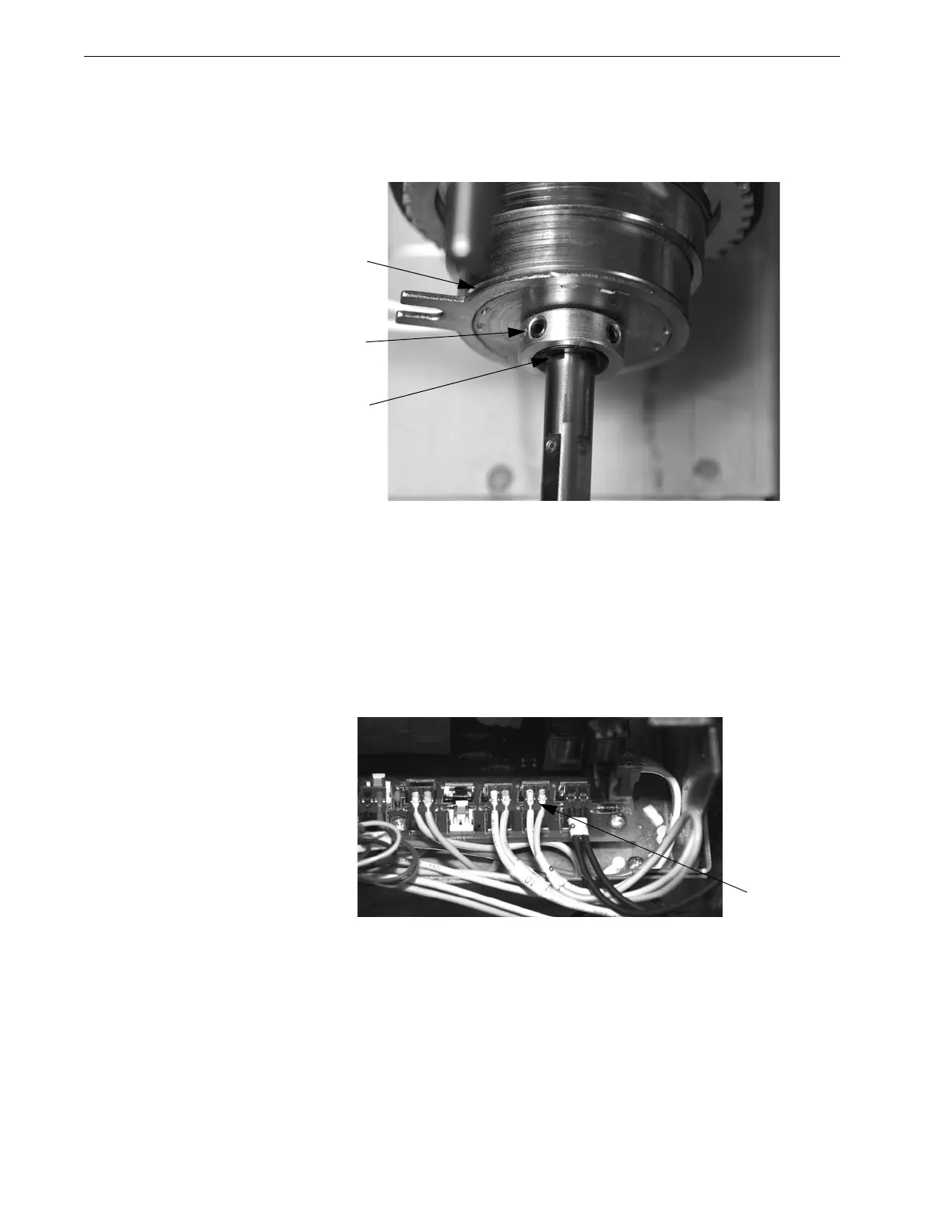

7. Loosen the 2 clutch socket head set screws [1], slide the clutch [2] off the shaft,

and remove the shaft key [3].

Figure 4.65 Punch Clutch.

Installation Note: When installing the clutch, be sure to install the shaft key.

Press the clutch against the drive gear plate. While pressing the clutch against the

plate, tighten the 2 set screws. The assembly does not require a gap between the

clutch and clutch plate.

8. Cut wire ties as needed and unplug the clutch connector [1] from the control

board.

Figure 4.66 Punch Clutch Connector on the Control Board.

[1]

[2]

[3]

[1]
