Repair and Adjustment Procedures
Advanced Punch Service Manual © Copyright 2009 GBC. All rights reserved. 4-71

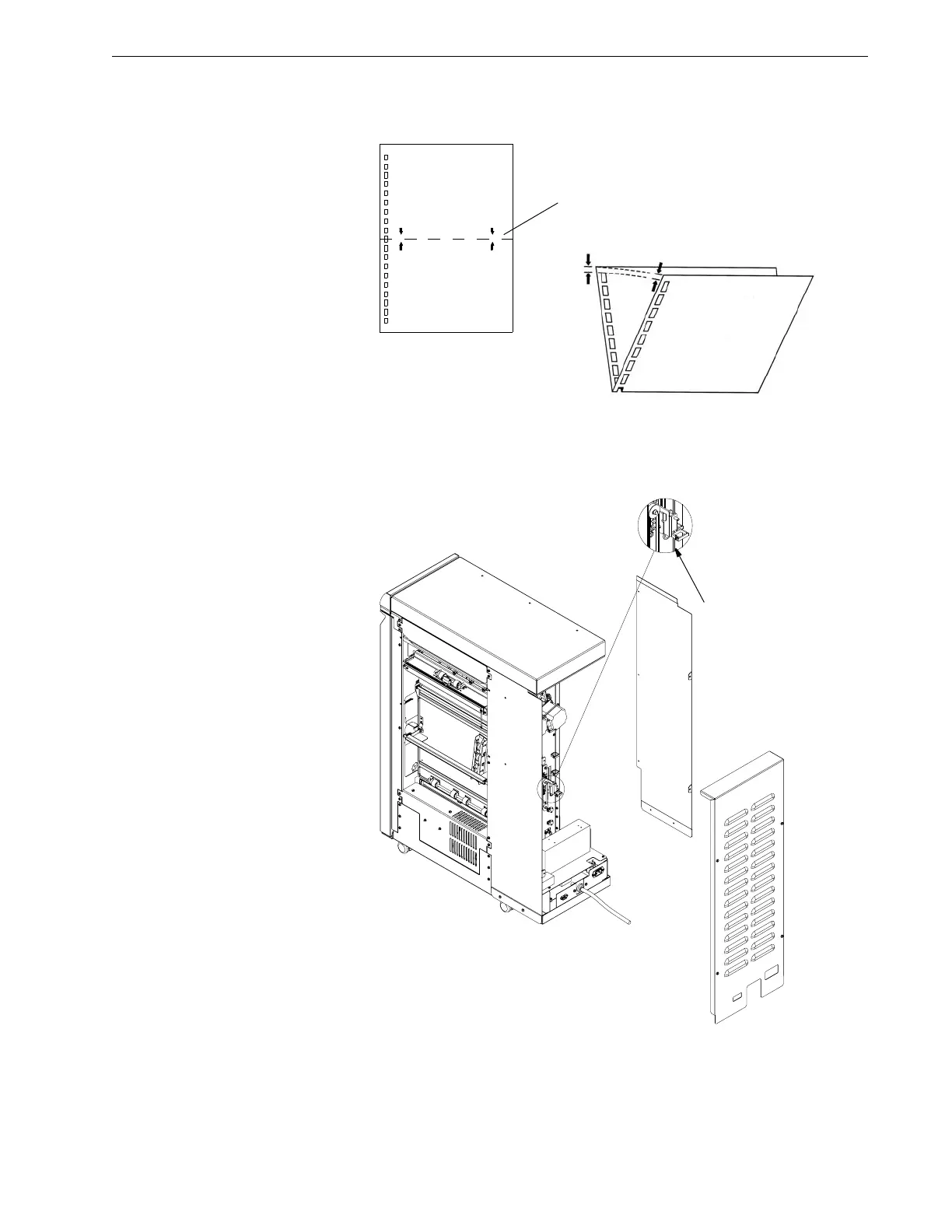

Figure 4.82 Folding Punched Paper to Check Alignment.
2. The two back covers on the Advanced Punch must be removed to access the
die set position cradle. See section 4.1.2 for information on removing rear
cover.
Figure 4.83 Removing Back Cover to Access the Die Set Position Cradle.
3. Before adjusting the die set position cradle, you must first note what direction
the die set cradle must move.
Fold here
CRADLE
