Repair and Adjustment Procedures
Advanced Punch Service Manual © Copyright 2009 GBC. All rights reserved. 4-81
When the solenoid is depressed (the gate is moved upward) the leading edge of
the diverter should not be visible.

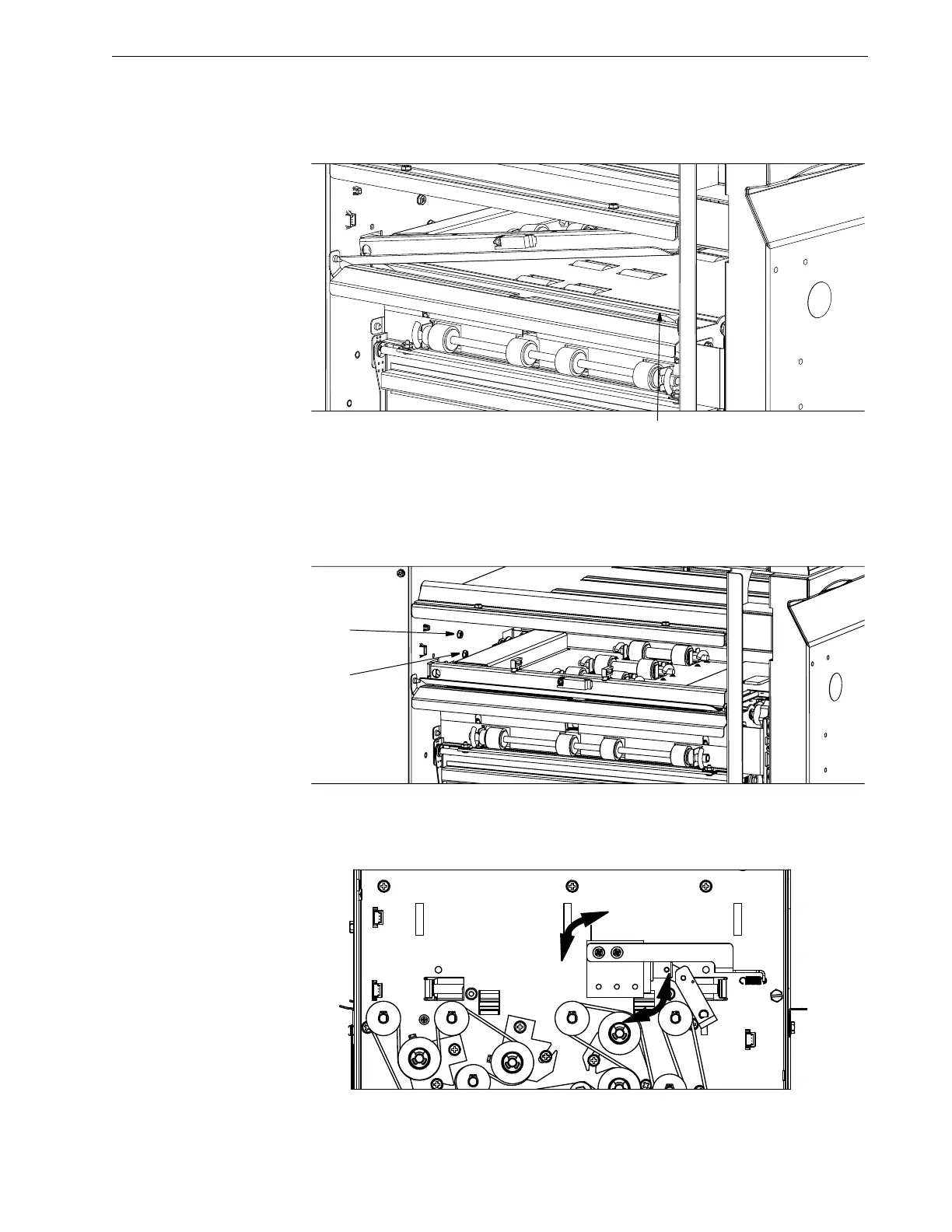

Figure 4.99 Diverter Gate Upward Position
This means the leading edge of the diverter gate should be high enough that it is
hidden behind the flange on the upper bypass.
The travel of the diverter is adjusted by loosening the two screws [1] that mount
the solenoid to the frame, then rotating the diverter.
Figure 4.100 Solenoid Adjustment
Figure 4.101 Diverter Rotation
