Repair and Adjustment Procedures
Advanced Punch Service Manual © Copyright 2009 GBC. All rights reserved. 4-31

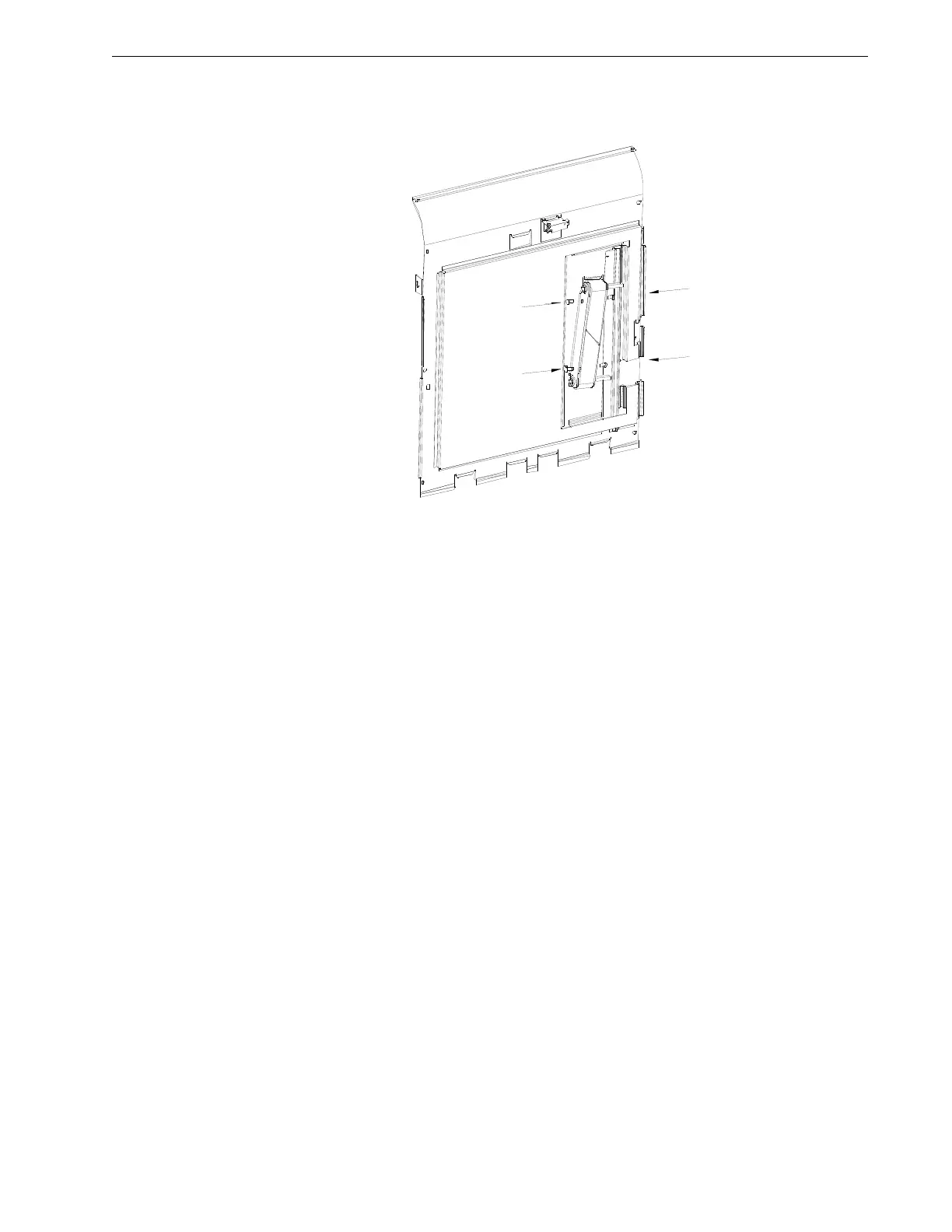

Figure 4.31 Final Assembly of the Green Drive Belt.
The green drive belt should look like the drawing shown in Figure 4.30.
To ensure proper assembly, hold the entire Paper Guide assembly up so that you
can visually inspect the alignment between the sheet metal surface and the metal
surface of the Aligner. The green drive belt should appear to be even and just
floating above the surface of the sheet metal.
