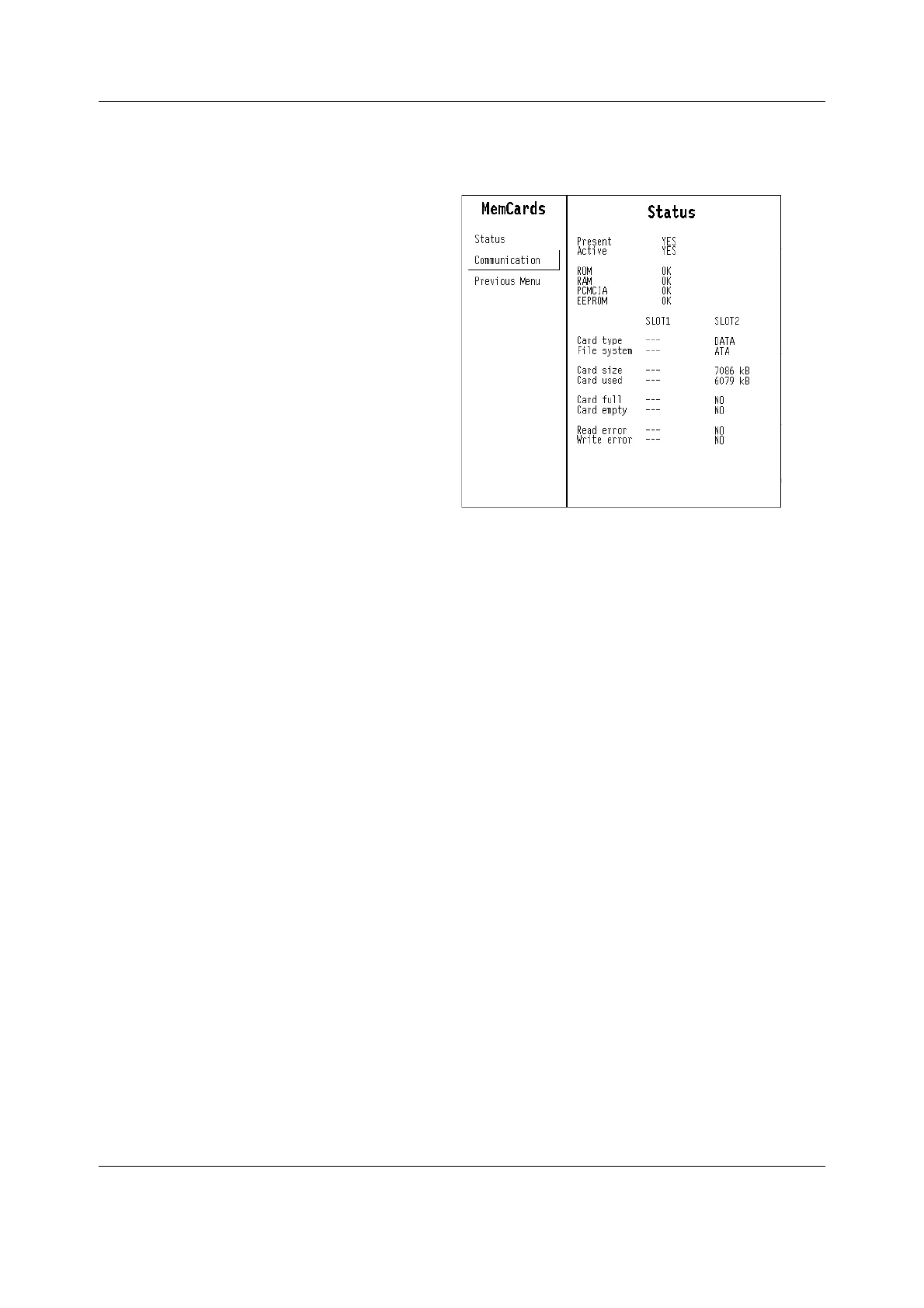

1.3.1 Status
Module Present indicates whether the MemCard
option is installed into the monitor. Possible values
are YES and NO.
Module Active indicates whether the MemCard
services are available. Possible values are YES and
NO.
ROM indicates the status of the ROM memory of the
module. Possible values are OK and ERR.
RAM indicates the status of the RAM memory of the
module. Possible values are OK and ERR.
PCMCIA indicates the status of the PCMCIA controller
of the module. Possible values are OK and ERR.
EEPROM indicates the status of the EEPROM memory
of the module. Possible values are OK and ERR.
SLOT1 and SLOT2 indicate the left hand slot and the right hand slot, respectively.
Card type indicates whether the card is MENU or DATA card. If a duplicated card is inserted, type DUPL.
File system indicates the type of the memory card in use. The only supported file system is ATA. If a
memory card using another file system is used, the message ‘UNKNOWN’ is shown. If the
card is poorly attached, the message ‘LOOSE’ is shown.
Card size indicates the total amount of disk space in the card in kilobytes.
Card used indicates the total amount of used disk space in the card in kilobytes.
Card full indicates whether all the disk space in the card is used. Possible values are YES and NO.
Card empty indicates the lack of menu files in the MENU card or no files in the DATA card. Possible values
are YES and NO.
Read error indicates whether the reading from the card has failed. Possible values are YES and NO.
Write error indicates whether the writing to the card has failed. Possible values are YES and NO.
All values can be '- - -' to indicate 'No data available'.
