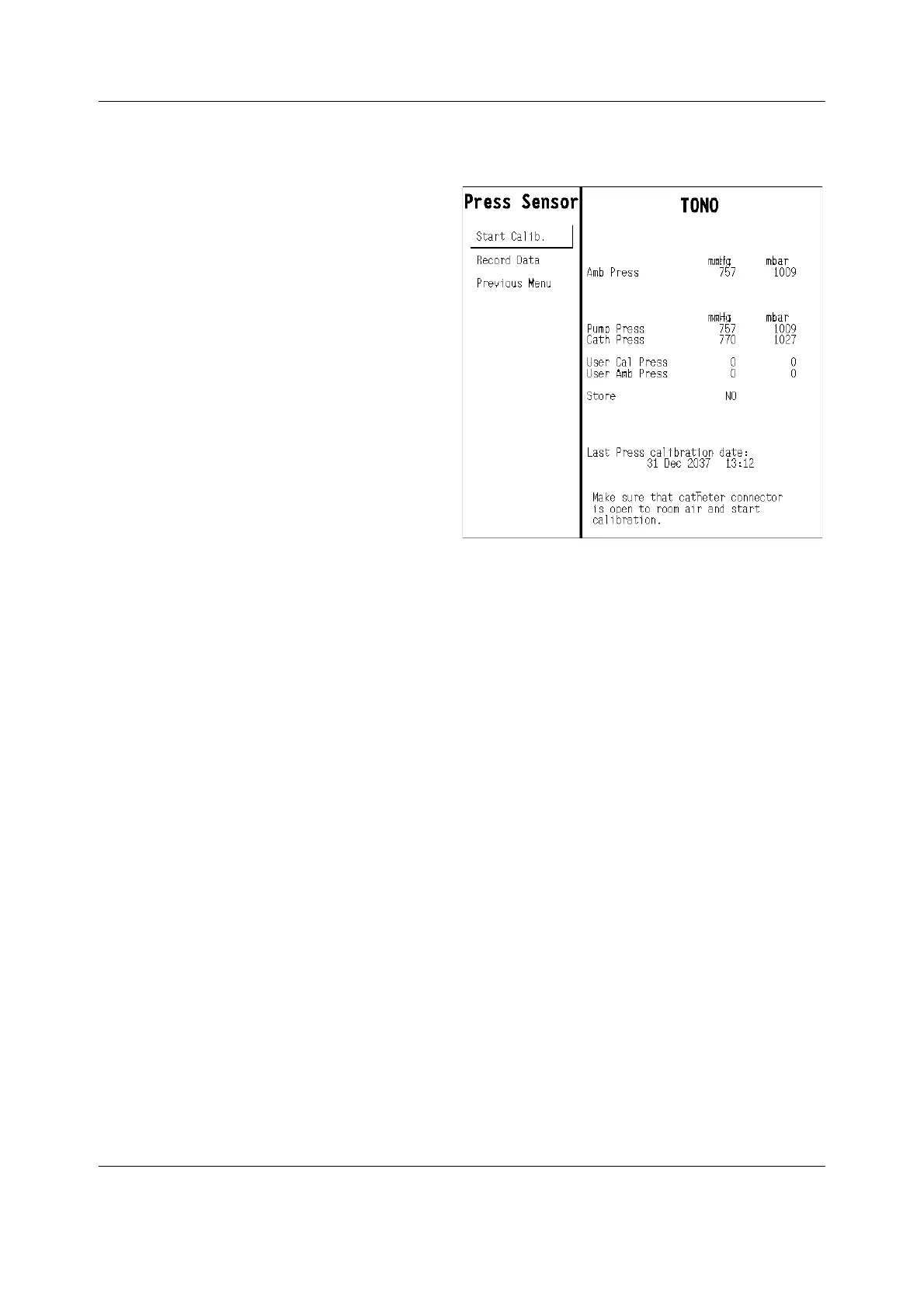

4.12.2 Press Sensor
Start Calib.: A selection to start a module pressure
sensor calibration sequence. The procedure is guided
online.
Record Data: A selection to print out the shown
service data to the device defined in the ...Service -
Record Data menu.
TONO service data
Amb Press; ambient pressure measured by the
pressure sensor. All the pressure values are given in
both mmHg and mbar on this page.
Pump Press; pressure measured from the pumping
unit.
Cath Press; pressure measured from the catheter
line.
User Cal Press; pressure that the user sets during the
calibration sequence according to the pressure that
is applied to the catheter port. The set value should be close to 100 mmHg.
User Amb Press; pressure that the user sets during the calibration sequence according to the current
ambient pressure in the room.
Store; a selection for storing/discarding the newly gained calibration values.
Last Press calibration date; data read from the module that tells when the module has last been calibrated.
