GE Datex-Ohmeda S/5 Series - Front Unit, F-CM(C)(REC)1 Rev. 00

Spare Parts
7
Document no. M1144959-001
1.1.3 Front unit, F-CM(C)(REC)1 rev. 00

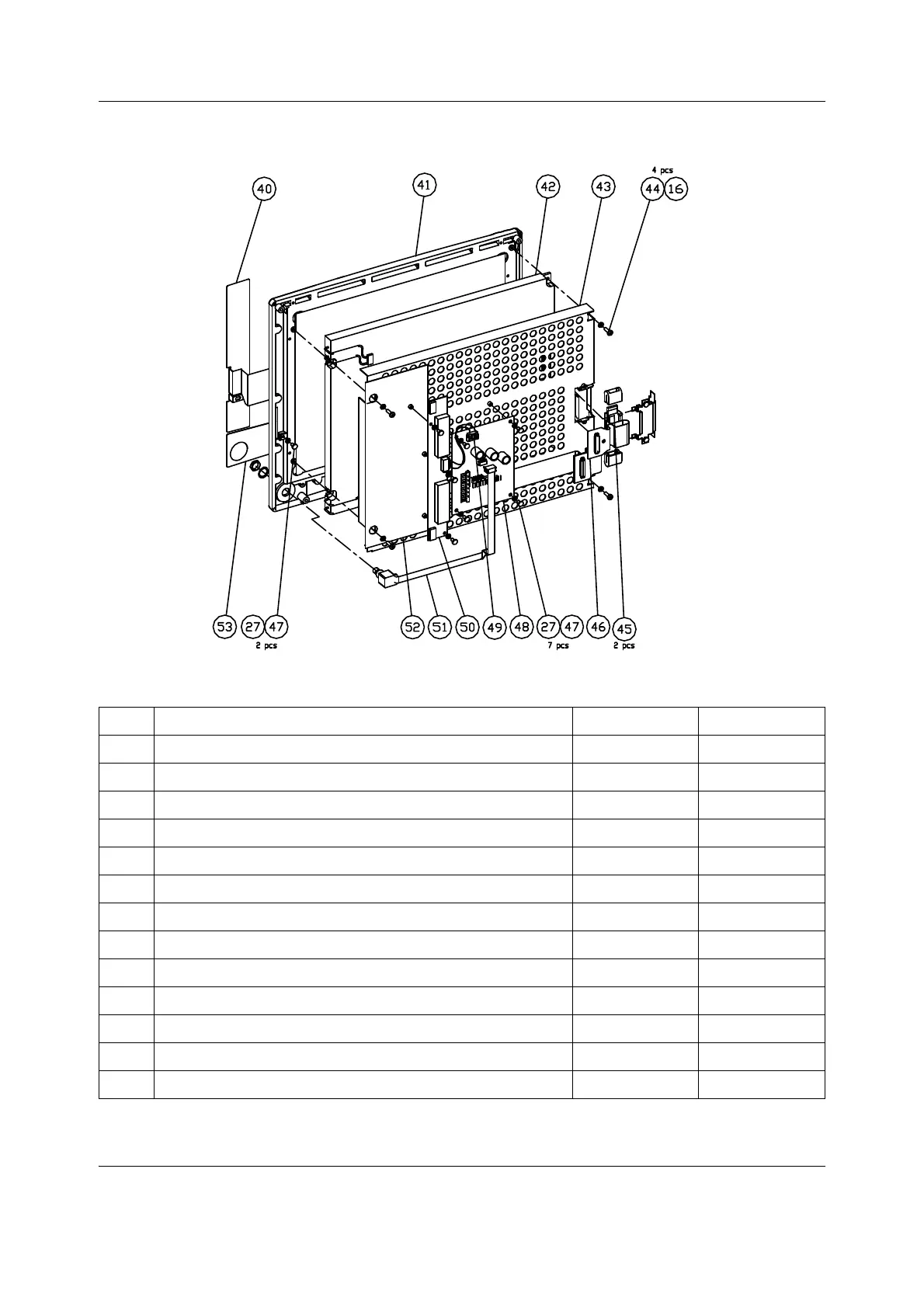

Figure 4 Exploded view of the Display Unit, Front Unit, F-CM(C)(REC)1 rev.00
Item Description Order No. Replaced by
16 Shakeproof washer m3.2 63611
27 Washer-spring, M3,STZN(FZB),DIN127 634101
27 Washer-spring, M3,STZN(FZB),DIN127 634101
40 Membrane keyboard, VERT., F-CM1 895686
41 Front cover for display unit, F-CM(C)(REC)1 Rev. 00 8004619
42 Display-LCD, 12.1in. tft, svga 572793
44 Screw-cross rec.cylind.h. stzn,m3x10 61735
45 EMI-filter, split ferrite core for flat cable 26mm 304514
46 Display cable board (SHARP), F-CM1 895446
47 Cross cylinder-head screw M3x6 61721
48 Connection board (DU), F-CM1 896465
49 Inverter cable (SHARP), F-CM1 896565
50 Display-inverter,12V 2x6mA for572793 572794
