Datex-Ohmeda S/5 Compact Anesthesia and Compact Critical Care Monitors
30
Document no. M1144951-004

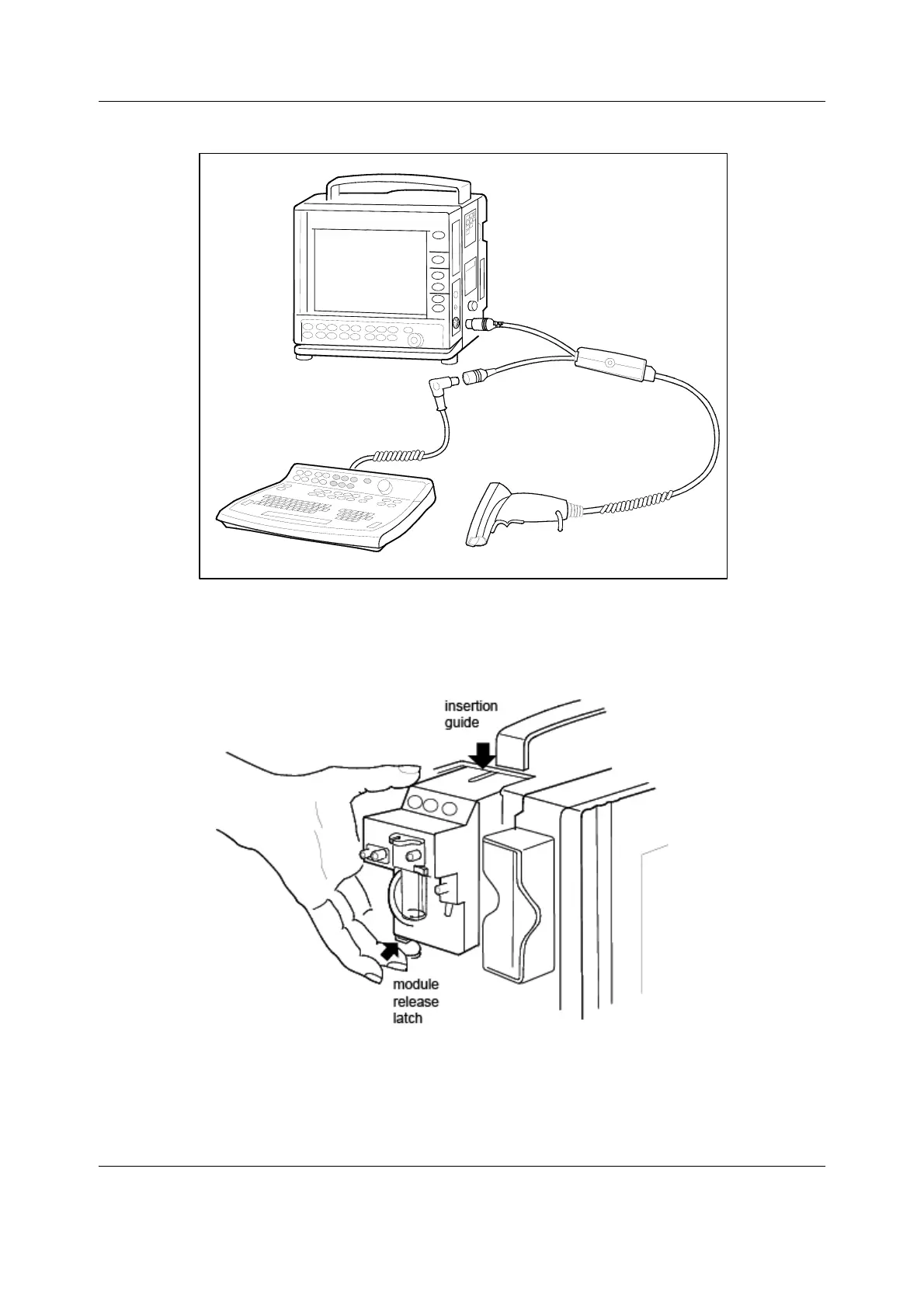

Figure 9 ARK Barcode Reader, N-SCAN connected to Compact Monitor
3.7 S/5 Compact Airway Modules, E-xxxx / M-xxxxx
This chapter provides information for installing Compact Airway Modules E-xxxxx.
Figure 10 Compact Airway Module, E-XXXX
Connection to frame
1. Ensure that the module is properly orientated (i.e. module release latch facing
downward).
