GE Feeder Management Relay 750 User Manual

5-44 750/760 Feeder Management Relay GE Multilin
5.6 S5 PROTECTION 5 SETPOINTS
5
c) NEUTRAL INSTANTANEOUS OC
PATH: SETPOINTS ÖØ S5 PROTECTION ÖØ NEUTRAL CURRENT ÖØ NEUTRAL INST OC 1(2)
The Neutral Instantaneous Overcurrent elements 1 and 2 are programmed in this subgroup. They are two identical protec-
tion elements each equivalent to a single ANSI device 50N neutral instantaneous overcurrent relay.

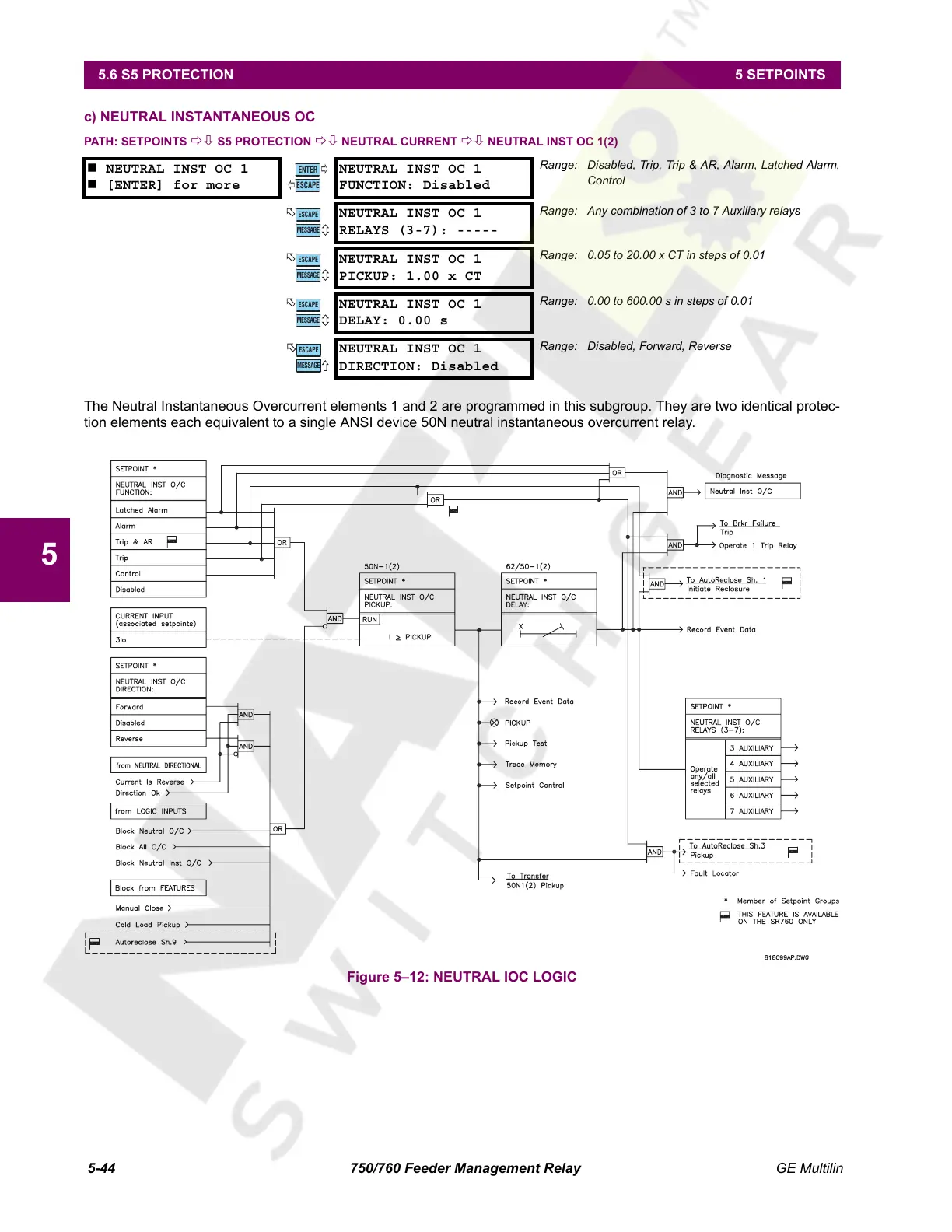

Figure 5–12: NEUTRAL IOC LOGIC
 NEUTRAL INST OC 1
 [ENTER] for more
NEUTRAL INST OC 1
FUNCTION: Disabled
Range: Disabled, Trip, Trip & AR, Alarm, Latched Alarm,
Control
NEUTRAL INST OC 1
RELAYS (3-7): -----
Range: Any combination of 3 to 7 Auxiliary relays
NEUTRAL INST OC 1
PICKUP: 1.00 x CT
Range: 0.05 to 20.00 x CT in steps of 0.01
NEUTRAL INST OC 1
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01
NEUTRAL INST OC 1
DIRECTION: Disabled
Range: Disabled, Forward, Reverse
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
Courtesy of NationalSwitchgear.com
