GE Feeder Management Relay 750 User Manual

GE Multilin 750/760 Feeder Management Relay 6-15
6 ACTUAL VALUES 6.4 A3 MAINTENANCE
6

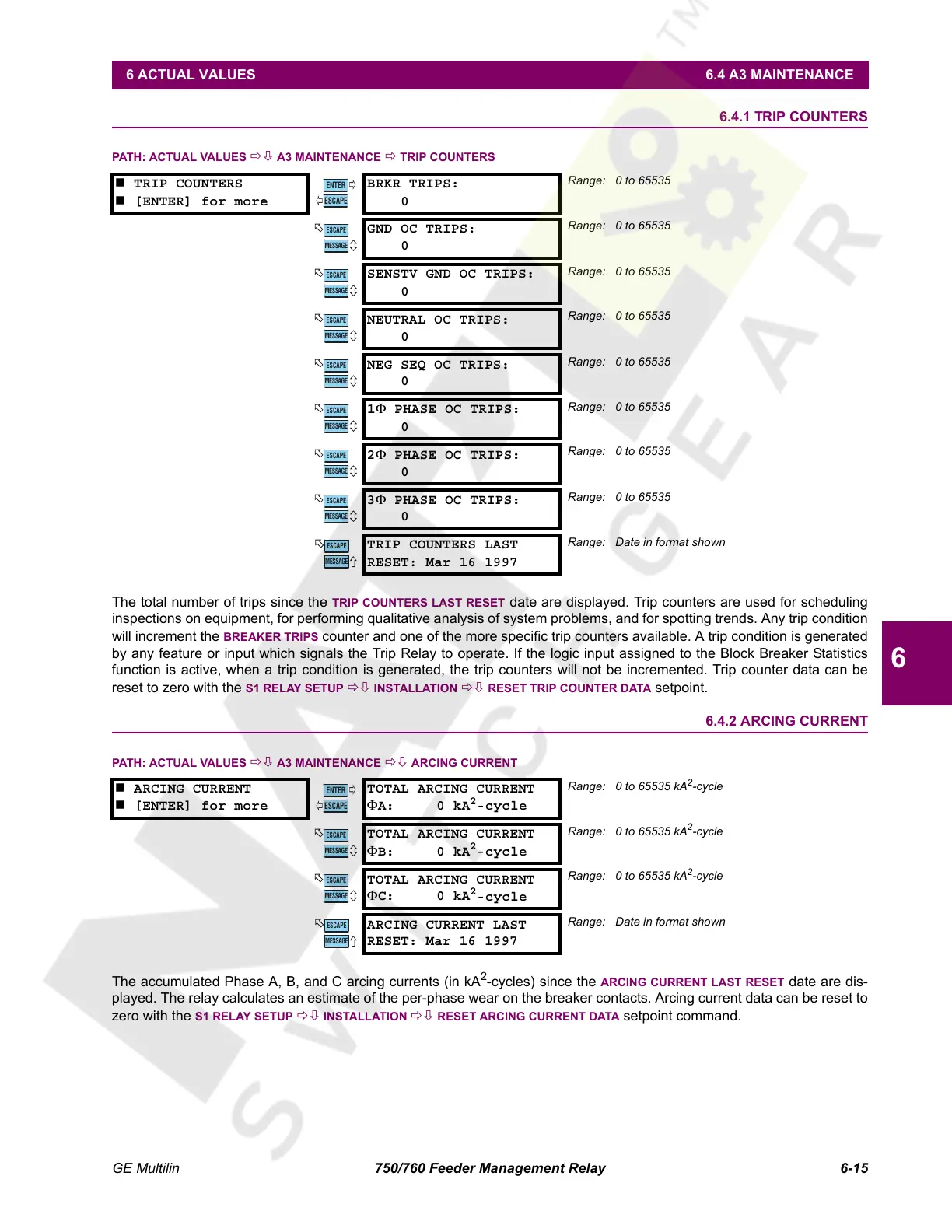

6.4A3 MAINTENANCE 6.4.1 TRIP COUNTERS
PATH: ACTUAL VALUES ÖØ A3 MAINTENANCE Ö TRIP COUNTERS
The total number of trips since the TRIP COUNTERS LAST RESET date are displayed. Trip counters are used for scheduling
inspections on equipment, for performing qualitative analysis of system problems, and for spotting trends. Any trip condition
will increment the
BREAKER TRIPS counter and one of the more specific trip counters available. A trip condition is generated
by any feature or input which signals the Trip Relay to operate. If the logic input assigned to the Block Breaker Statistics
function is active, when a trip condition is generated, the trip counters will not be incremented. Trip counter data can be
reset to zero with the
S1 RELAY SETUP ÖØ INSTALLATION ÖØ RESET TRIP COUNTER DATA setpoint.
6.4.2 ARCING CURRENT
PATH: ACTUAL VALUES ÖØ A3 MAINTENANCE ÖØ ARCING CURRENT
The accumulated Phase A, B, and C arcing currents (in kA
2
-cycles) since the ARCING CURRENT LAST RESET date are dis-
played. The relay calculates an estimate of the per-phase wear on the breaker contacts. Arcing current data can be reset to
zero with the
S1 RELAY SETUP ÖØ INSTALLATION ÖØ RESET ARCING CURRENT DATA setpoint command.
 TRIP COUNTERS
 [ENTER] for more
BRKR TRIPS:
0
Range: 0 to 65535
GND OC TRIPS:
0
Range: 0 to 65535
SENSTV GND OC TRIPS:
0
Range: 0 to 65535
NEUTRAL OC TRIPS:
0
Range: 0 to 65535
NEG SEQ OC TRIPS:
0
Range: 0 to 65535
1Φ PHASE OC TRIPS:
0
Range: 0 to 65535
2Φ PHASE OC TRIPS:
0
Range: 0 to 65535
3Φ PHASE OC TRIPS:
0
Range: 0 to 65535
TRIP COUNTERS LAST
RESET: Mar 16 1997
Range: Date in format shown
 ARCING CURRENT
 [ENTER] for more
TOTAL ARCING CURRENT
ΦA: 0 kA
2
-cycle
Range: 0 to 65535 kA
2
-cycle
TOTAL ARCING CURRENT
ΦB: 0 kA
2
-cycle
Range: 0 to 65535 kA
2
-cycle
TOTAL ARCING CURRENT
ΦC: 0 kA
2
-cycle
Range: 0 to 65535 kA
2
-cycle
ARCING CURRENT LAST
RESET: Mar 16 1997
Range: Date in format shown
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
