GE Multilin 750/760 Feeder Management Relay 7-49
7 COMMUNICATIONS 7.5 DNP COMMUNICATIONS
7

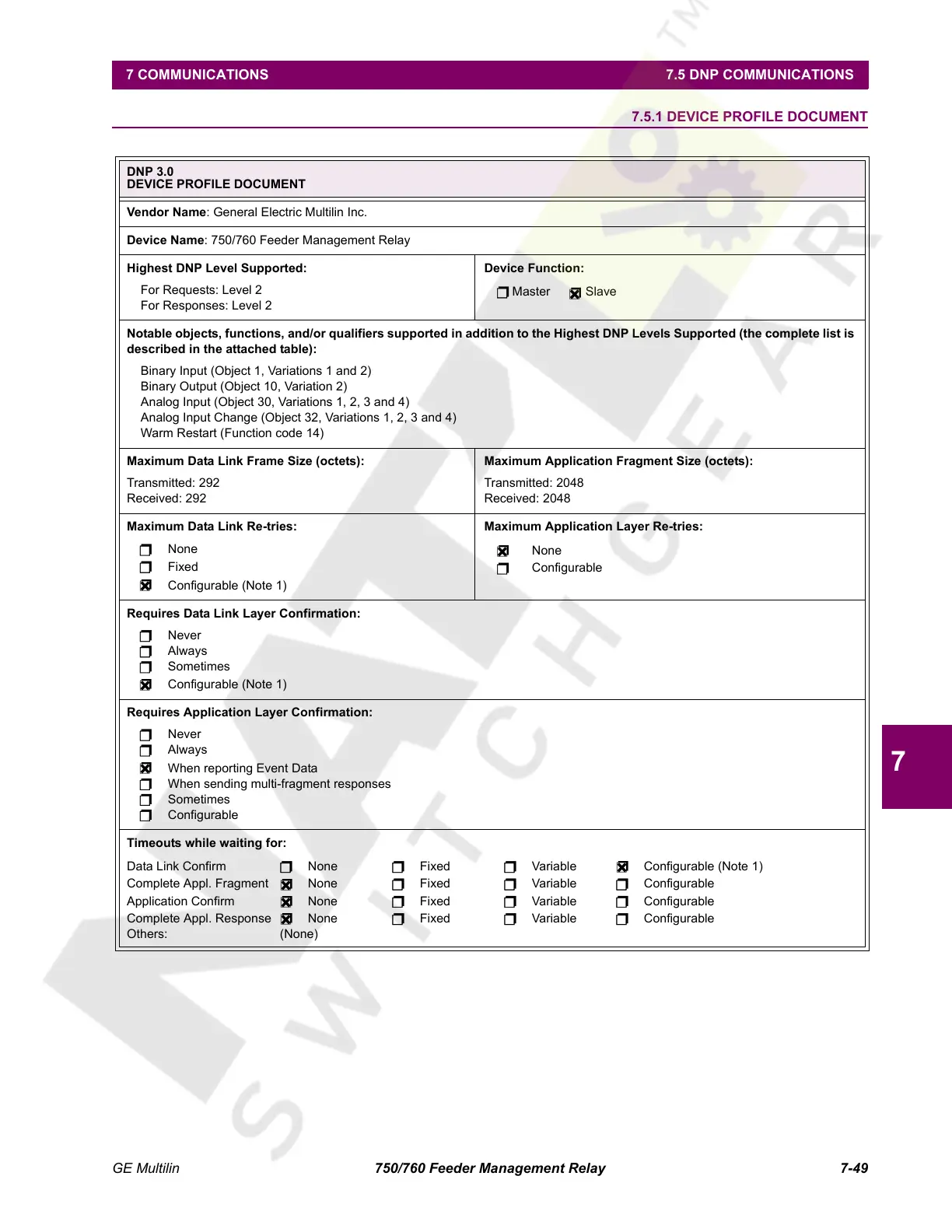

7.5DNP COMMUNICATIONS 7.5.1 DEVICE PROFILE DOCUMENT
DNP 3.0
DEVICE PROFILE DOCUMENT
Vendor Name: General Electric Multilin Inc.
Device Name: 750/760 Feeder Management Relay
Highest DNP Level Supported:
For Requests: Level 2
For Responses: Level 2
Device Function:
 Master Slave
Notable objects, functions, and/or qualifiers supported in addition to the Highest DNP Levels Supported (the complete list is
described in the attached table):
Binary Input (Object 1, Variations 1 and 2)
Binary Output (Object 10, Variation 2)
Analog Input (Object 30, Variations 1, 2, 3 and 4)
Analog Input Change (Object 32, Variations 1, 2, 3 and 4)
Warm Restart (Function code 14)
Maximum Data Link Frame Size (octets):
Transmitted: 292
Received: 292
Maximum Application Fragment Size (octets):
Transmitted: 2048
Received: 2048
Maximum Data Link Re-tries:
 None
 Fixed
Configurable (Note 1)
Maximum Application Layer Re-tries:
None
 Configurable
Requires Data Link Layer Confirmation:
 Never
 Always
 Sometimes
Configurable (Note 1)
Requires Application Layer Confirmation:
 Never
 Always
When reporting Event Data
 When sending multi-fragment responses
 Sometimes
 Configurable
Timeouts while waiting for:
Data Link Confirm  None  Fixed  Variable Configurable (Note 1)
Complete Appl. Fragment None  Fixed  Variable  Configurable
Application Confirm None  Fixed  Variable  Configurable
Complete Appl. Response None  Fixed  Variable  Configurable
Others: (None)
