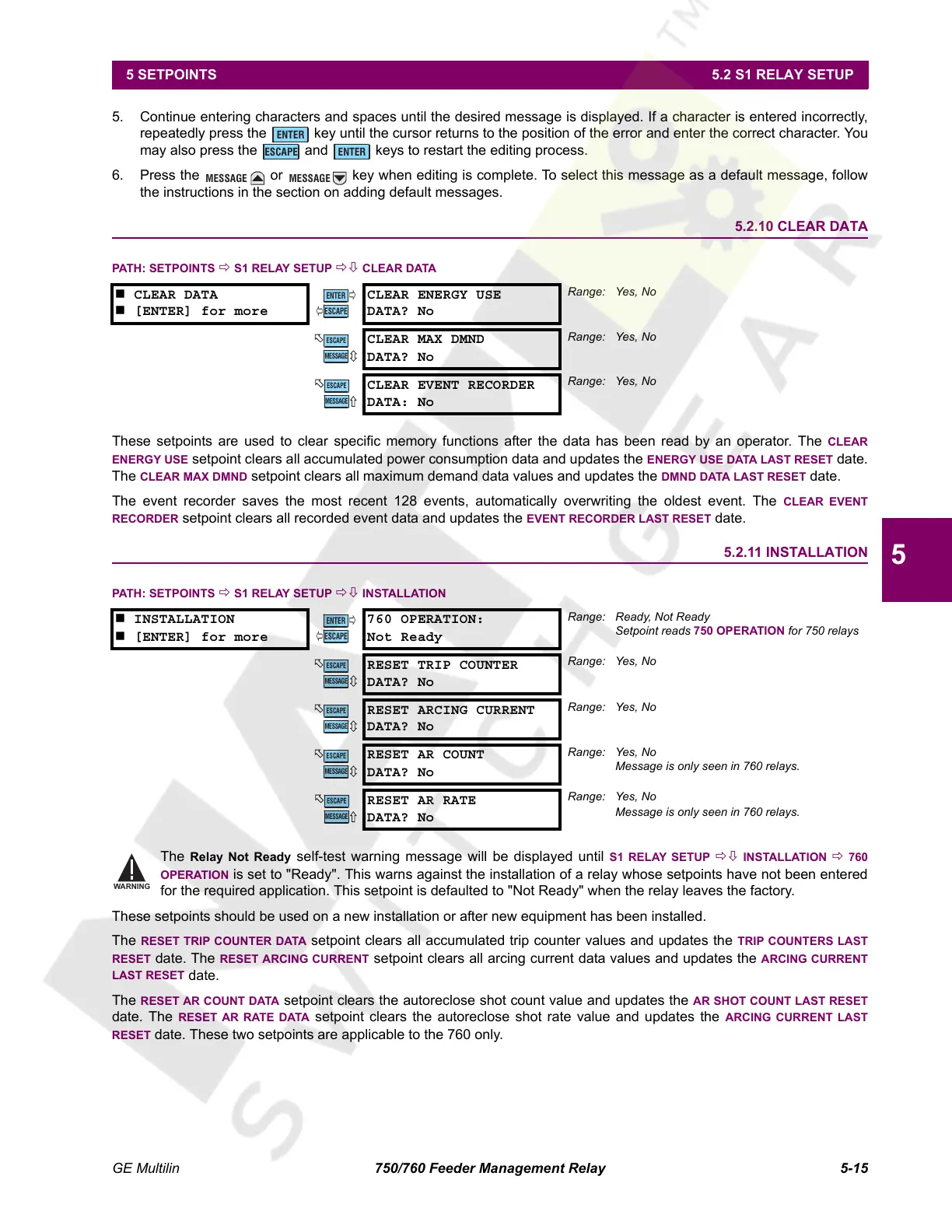

5 SETPOINTS 5.2 S1 RELAY SETUP
5
5. Continue entering characters and spaces until the desired message is displayed. If a character is entered incorrectly,
repeatedly press the key until the cursor returns to the position of the error and enter the correct character. You
may also press the and keys to restart the editing process.
6. Press the or key when editing is complete. To select this message as a default message, follow
the instructions in the section on adding default messages.
5.2.10 CLEAR DATA
PATH: SETPOINTS Ö S1 RELAY SETUP ÖØ CLEAR DATA
These setpoints are used to clear specific memory functions after the data has been read by an operator. The CLEAR
ENERGY USE setpoint clears all accumulated power consumption data and updates the ENERGY USE DATA LAST RESET date.
The CLEAR MAX DMND setpoint clears all maximum demand data values and updates the DMND DATA LAST RESET date.
The event recorder saves the most recent 128 events, automatically overwriting the oldest event. The CLEAR EVENT
RECORDER setpoint clears all recorded event data and updates the EVENT RECORDER LAST RESET date.
5.2.11 INSTALLATION
PATH: SETPOINTS Ö S1 RELAY SETUP ÖØ INSTALLATION
The Relay Not Ready self-test warning message will be displayed until S1 RELAY SETUP ÖØ INSTALLATION Ö 760
OPERATION is set to "Ready". This warns against the installation of a relay whose setpoints have not been entered
for the required application. This setpoint is defaulted to "Not Ready" when the relay leaves the factory.
These setpoints should be used on a new installation or after new equipment has been installed.
The
RESET TRIP COUNTER DATA setpoint clears all accumulated trip counter values and updates the TRIP COUNTERS LAST
RESET date. The RESET ARCING CURRENT setpoint clears all arcing current data values and updates the ARCING CURRENT
LAST RESET
date.
The RESET AR COUNT DATA setpoint clears the autoreclose shot count value and updates the AR SHOT COUNT LAST RESET
date. The RESET AR RATE DATA setpoint clears the autoreclose shot rate value and updates the ARCING CURRENT LAST
RESET date. These two setpoints are applicable to the 760 only.
 CLEAR DATA
 [ENTER] for more
CLEAR ENERGY USE
DATA? No
Range: Yes, No
CLEAR MAX DMND
DATA? No
Range: Yes, No
CLEAR EVENT RECORDER
DATA: No
Range: Yes, No
 INSTALLATION
 [ENTER] for more
760 OPERATION:
Not Ready
Range: Ready, Not Ready
Setpoint reads 750 OPERATION for 750 relays
RESET TRIP COUNTER
DATA? No
Range: Yes, No
RESET ARCING CURRENT
DATA? No
Range: Yes, No
RESET AR COUNT
DATA? No
Range: Yes, No
Message is only seen in 760 relays.
RESET AR RATE
DATA? No
Range: Yes, No
Message is only seen in 760 relays.
ENTER
ESCAPE ENTER
MESSAGE
MESSAGE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
WARNING
