GE Multilin 750/760 Feeder Management Relay 5-31
5 SETPOINTS 5.5 S4 OUTPUT RELAYS
5
5.5.5 SELF-TEST WARNING RELAY
There are no user-programmable setpoints associated with the Self-Test Warning Relay (Output Relay 8). The logic for this
relay is shown below:

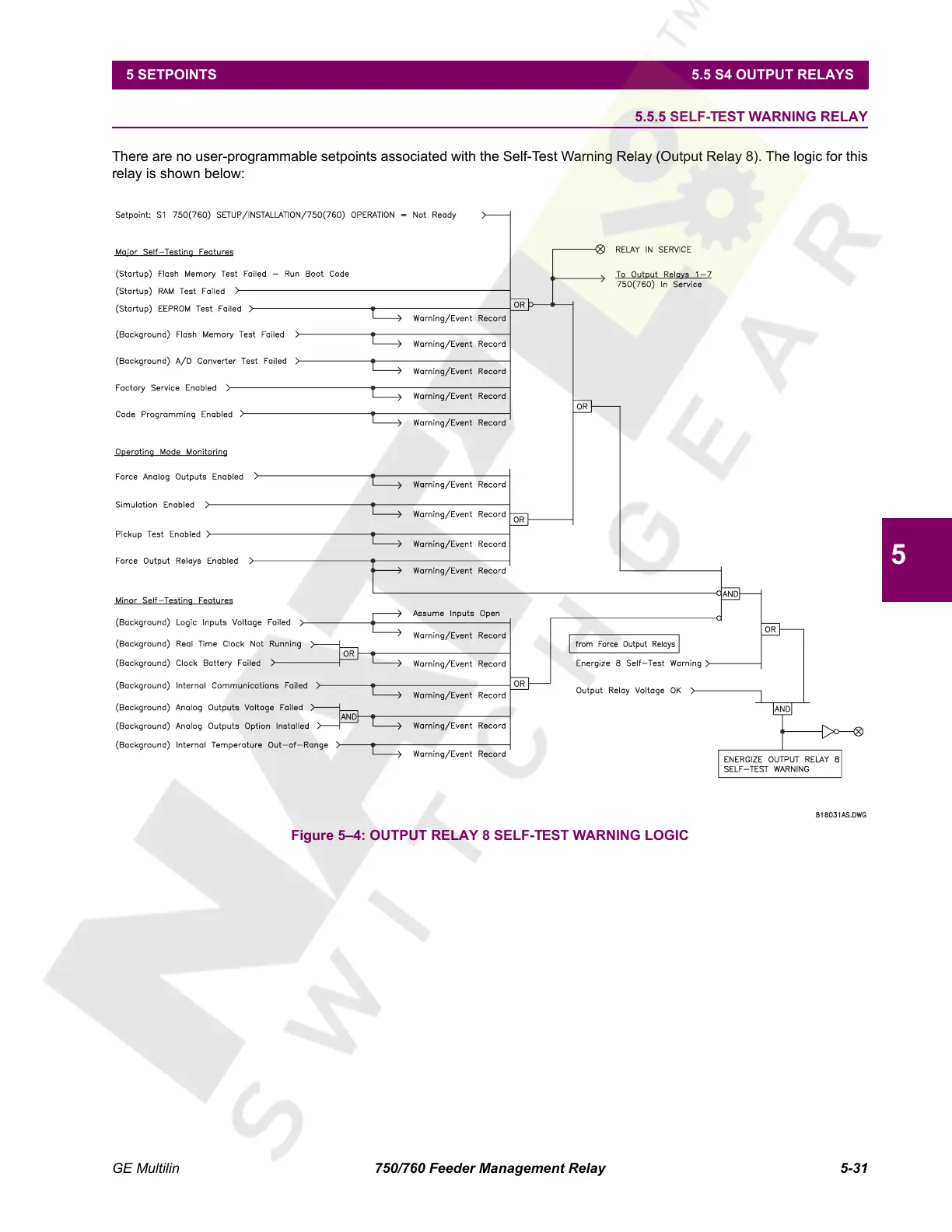

Figure 5–4: OUTPUT RELAY 8 SELF-TEST WARNING LOGIC
