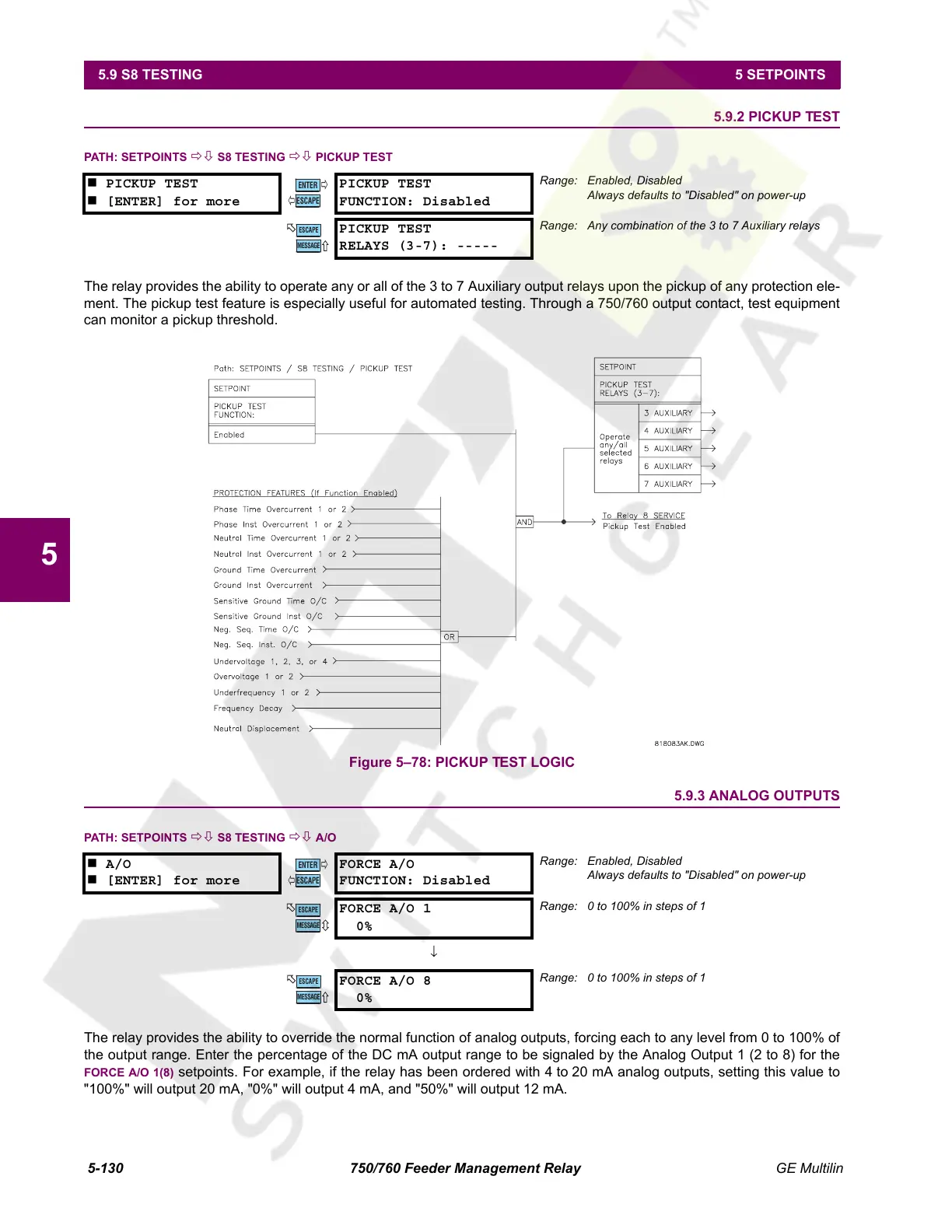

5-130 750/760 Feeder Management Relay GE Multilin
5.9 S8 TESTING 5 SETPOINTS
5
5.9.2 PICKUP TEST
PATH: SETPOINTS ÖØ S8 TESTING ÖØ PICKUP TEST
The relay provides the ability to operate any or all of the 3 to 7 Auxiliary output relays upon the pickup of any protection ele-
ment. The pickup test feature is especially useful for automated testing. Through a 750/760 output contact, test equipment
can monitor a pickup threshold.
Figure 5–78: PICKUP TEST LOGIC
5.9.3 ANALOG OUTPUTS
PATH: SETPOINTS ÖØ S8 TESTING ÖØ A/O
The relay provides the ability to override the normal function of analog outputs, forcing each to any level from 0 to 100% of
the output range. Enter the percentage of the DC mA output range to be signaled by the Analog Output 1 (2 to 8) for the
FORCE A/O 1(8) setpoints. For example, if the relay has been ordered with 4 to 20 mA analog outputs, setting this value to
"100%" will output 20 mA, "0%" will output 4 mA, and "50%" will output 12 mA.
îš„ PICKUP TEST
îš„ [ENTER] for more
PICKUP TEST
FUNCTION: Disabled
Range: Enabled, Disabled
Always defaults to "Disabled" on power-up
PICKUP TEST
RELAYS (3-7): -----
Range: Any combination of the 3 to 7 Auxiliary relays
îš„ A/O
îš„ [ENTER] for more
FORCE A/O
FUNCTION: Disabled
Range: Enabled, Disabled
Always defaults to "Disabled" on power-up
FORCE A/O 1
0%
Range: 0 to 100% in steps of 1
↓
FORCE A/O 8
0%
Range: 0 to 100% in steps of 1
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
