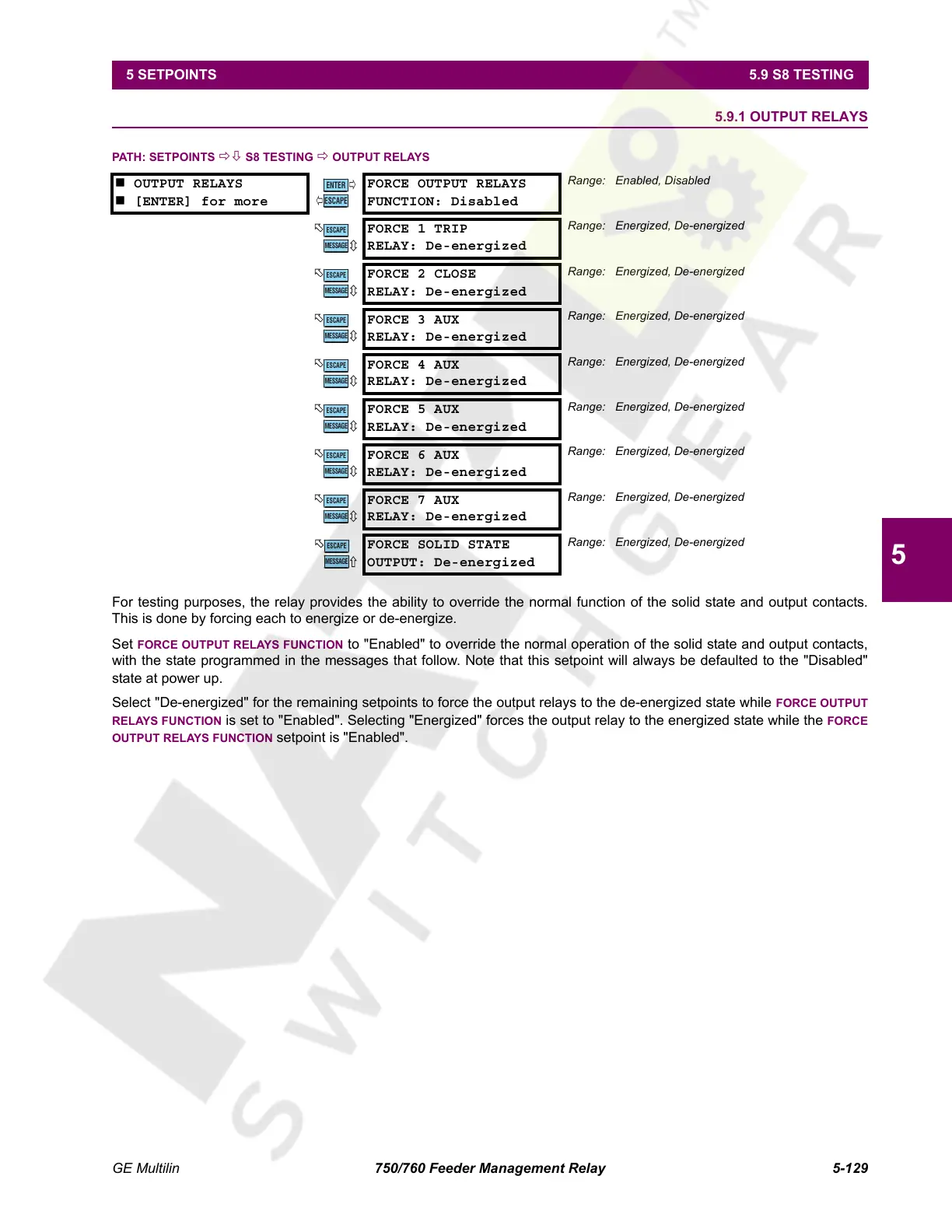

5 SETPOINTS 5.9 S8 TESTING

5.9S8 TESTING 5.9.1 OUTPUT RELAYS

PATH: SETPOINTS ÖØ S8 TESTING Ö OUTPUT RELAYS

For testing purposes, the relay provides the ability to override the normal function of the solid state and output contacts.

This is done by forcing each to energize or de-energize.

Set FORCE OUTPUT RELAYS FUNCTION to "Enabled" to override the normal operation of the solid state and output contacts,

with the state programmed in the messages that follow. Note that this setpoint will always be defaulted to the "Disabled"

state at power up.

Select "De-energized" for the remaining setpoints to force the output relays to the de-energized state while FORCE OUTPUT

RELAYS FUNCTION is set to "Enabled". Selecting "Energized" forces the output relay to the energized state while the FORCE

OUTPUT RELAYS FUNCTION setpoint is "Enabled".

 OUTPUT RELAYS

 [ENTER] for more

FORCE OUTPUT RELAYS

FUNCTION: Disabled

Range: Enabled, Disabled

FORCE 1 TRIP

RELAY: De-energized
