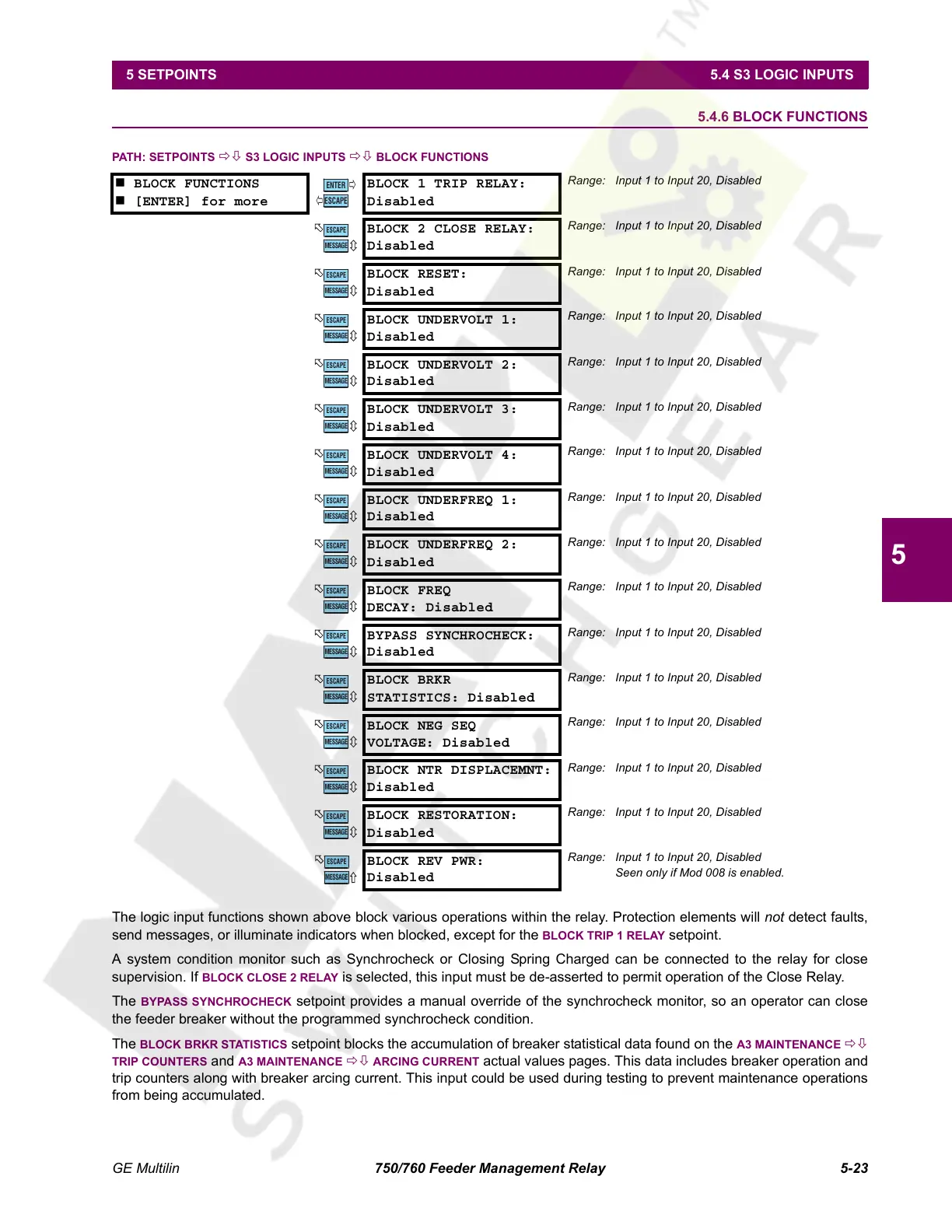

GE Multilin 750/760 Feeder Management Relay 5-23
5 SETPOINTS 5.4 S3 LOGIC INPUTS
5
5.4.6 BLOCK FUNCTIONS
PATH: SETPOINTS ÖØ S3 LOGIC INPUTS ÖØ BLOCK FUNCTIONS
The logic input functions shown above block various operations within the relay. Protection elements will not detect faults,
send messages, or illuminate indicators when blocked, except for the
BLOCK TRIP 1 RELAY setpoint.
A system condition monitor such as Synchrocheck or Closing Spring Charged can be connected to the relay for close
supervision. If BLOCK CLOSE 2 RELAY is selected, this input must be de-asserted to permit operation of the Close Relay.
The
BYPASS SYNCHROCHECK setpoint provides a manual override of the synchrocheck monitor, so an operator can close
the feeder breaker without the programmed synchrocheck condition.
The
BLOCK BRKR STATISTICS setpoint blocks the accumulation of breaker statistical data found on the A3 MAINTENANCE ÖØ
TRIP COUNTERS and A3 MAINTENANCE ÖØ ARCING CURRENT actual values pages. This data includes breaker operation and
trip counters along with breaker arcing current. This input could be used during testing to prevent maintenance operations
from being accumulated.
îš„ BLOCK FUNCTIONS
îš„ [ENTER] for more
BLOCK 1 TRIP RELAY:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK 2 CLOSE RELAY:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK RESET:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERVOLT 1:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERVOLT 2:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERVOLT 3:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERVOLT 4:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERFREQ 1:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK UNDERFREQ 2:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK FREQ
DECAY: Disabled
Range: Input 1 to Input 20, Disabled
BYPASS SYNCHROCHECK:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK BRKR
STATISTICS: Disabled
Range: Input 1 to Input 20, Disabled
BLOCK NEG SEQ
VOLTAGE: Disabled
Range: Input 1 to Input 20, Disabled
BLOCK NTR DISPLACEMNT:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK RESTORATION:
Disabled
Range: Input 1 to Input 20, Disabled
BLOCK REV PWR:
Disabled
Range: Input 1 to Input 20, Disabled
Seen only if Mod 008 is enabled.
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
Courtesy of NationalSwitchgear.com
