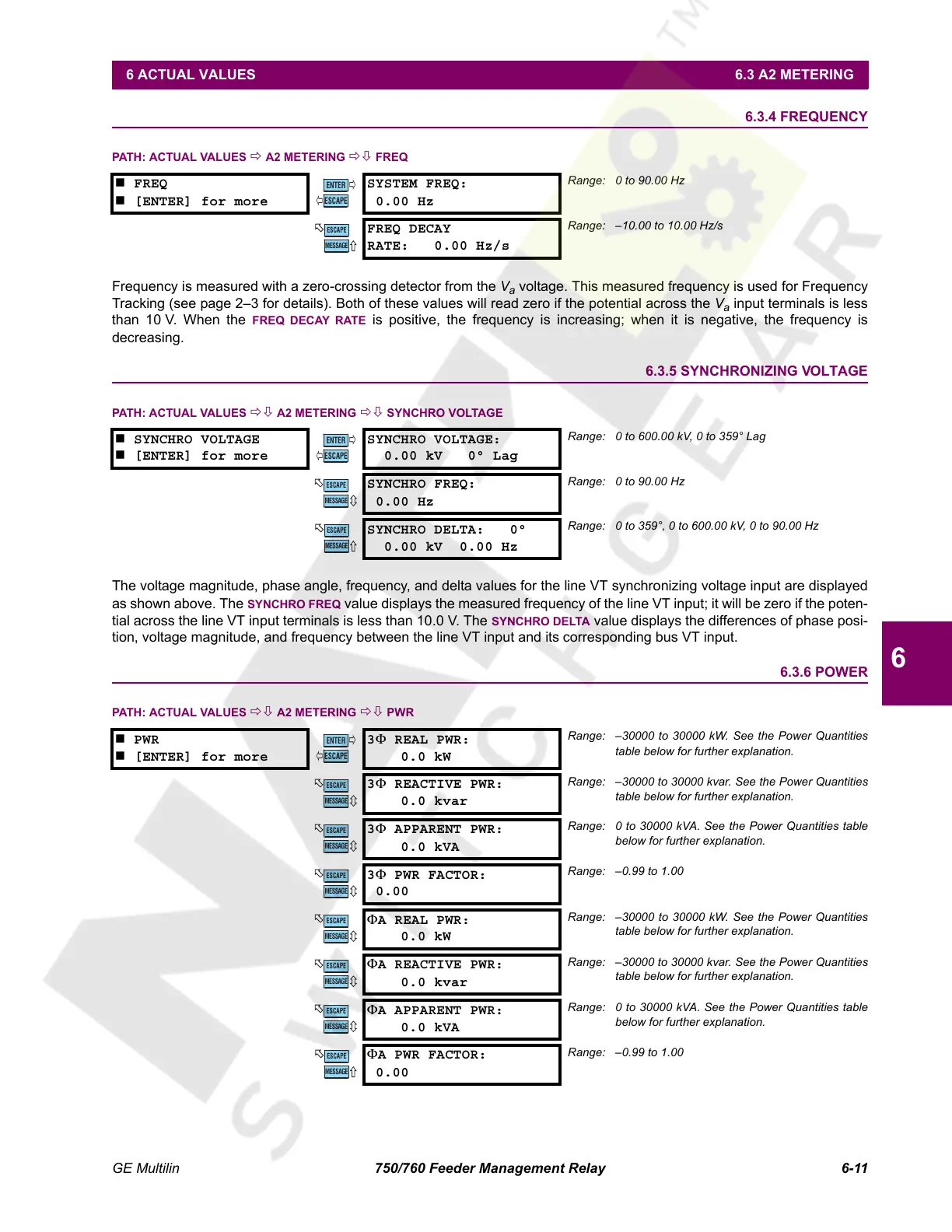

GE Multilin 750/760 Feeder Management Relay 6-11
6 ACTUAL VALUES 6.3 A2 METERING
6
6.3.4 FREQUENCY
PATH: ACTUAL VALUES Ö A2 METERING ÖØ FREQ
Frequency is measured with a zero-crossing detector from the V
a
voltage. This measured frequency is used for Frequency
Tracking (see page 2–3 for details). Both of these values will read zero if the potential across the V
a
input terminals is less
than 10 V. When the FREQ DECAY RATE is positive, the frequency is increasing; when it is negative, the frequency is
decreasing.
6.3.5 SYNCHRONIZING VOLTAGE
PATH: ACTUAL VALUES ÖØ A2 METERING ÖØ SYNCHRO VOLTAGE
The voltage magnitude, phase angle, frequency, and delta values for the line VT synchronizing voltage input are displayed
as shown above. The
SYNCHRO FREQ value displays the measured frequency of the line VT input; it will be zero if the poten-
tial across the line VT input terminals is less than 10.0 V. The SYNCHRO DELTA value displays the differences of phase posi-
tion, voltage magnitude, and frequency between the line VT input and its corresponding bus VT input.
6.3.6 POWER
PATH: ACTUAL VALUES ÖØ A2 METERING ÖØ PWR
 FREQ
 [ENTER] for more
SYSTEM FREQ:
0.00 Hz
Range: 0 to 90.00 Hz
FREQ DECAY
RATE: 0.00 Hz/s
Range: –10.00 to 10.00 Hz/s
 SYNCHRO VOLTAGE
 [ENTER] for more
SYNCHRO VOLTAGE:
0.00 kV 0° Lag
Range: 0 to 600.00 kV, 0 to 359° Lag
SYNCHRO FREQ:
0.00 Hz
Range: 0 to 90.00 Hz
SYNCHRO DELTA: 0°
0.00 kV 0.00 Hz
Range: 0 to 359°, 0 to 600.00 kV, 0 to 90.00 Hz
 PWR
 [ENTER] for more
3Φ REAL PWR:
0.0 kW
Range: –30000 to 30000 kW. See the Power Quantities
table below for further explanation.
3Φ REACTIVE PWR:
0.0 kvar
Range: –30000 to 30000 kvar. See the Power Quantities
table below for further explanation.
3Φ APPARENT PWR:
0.0 kVA
Range: 0 to 30000 kVA. See the Power Quantities table
below for further explanation.
3Φ PWR FACTOR:
0.00
Range: –0.99 to 1.00
ΦA REAL PWR:
0.0 kW
Range: –30000 to 30000 kW. See the Power Quantities
table below for further explanation.
ΦA REACTIVE PWR:
0.0 kvar
Range: –30000 to 30000 kvar. See the Power Quantities
table below for further explanation.
ΦA APPARENT PWR:
0.0 kVA
Range: 0 to 30000 kVA. See the Power Quantities table
below for further explanation.
ΦA PWR FACTOR:
0.00
Range: –0.99 to 1.00
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
