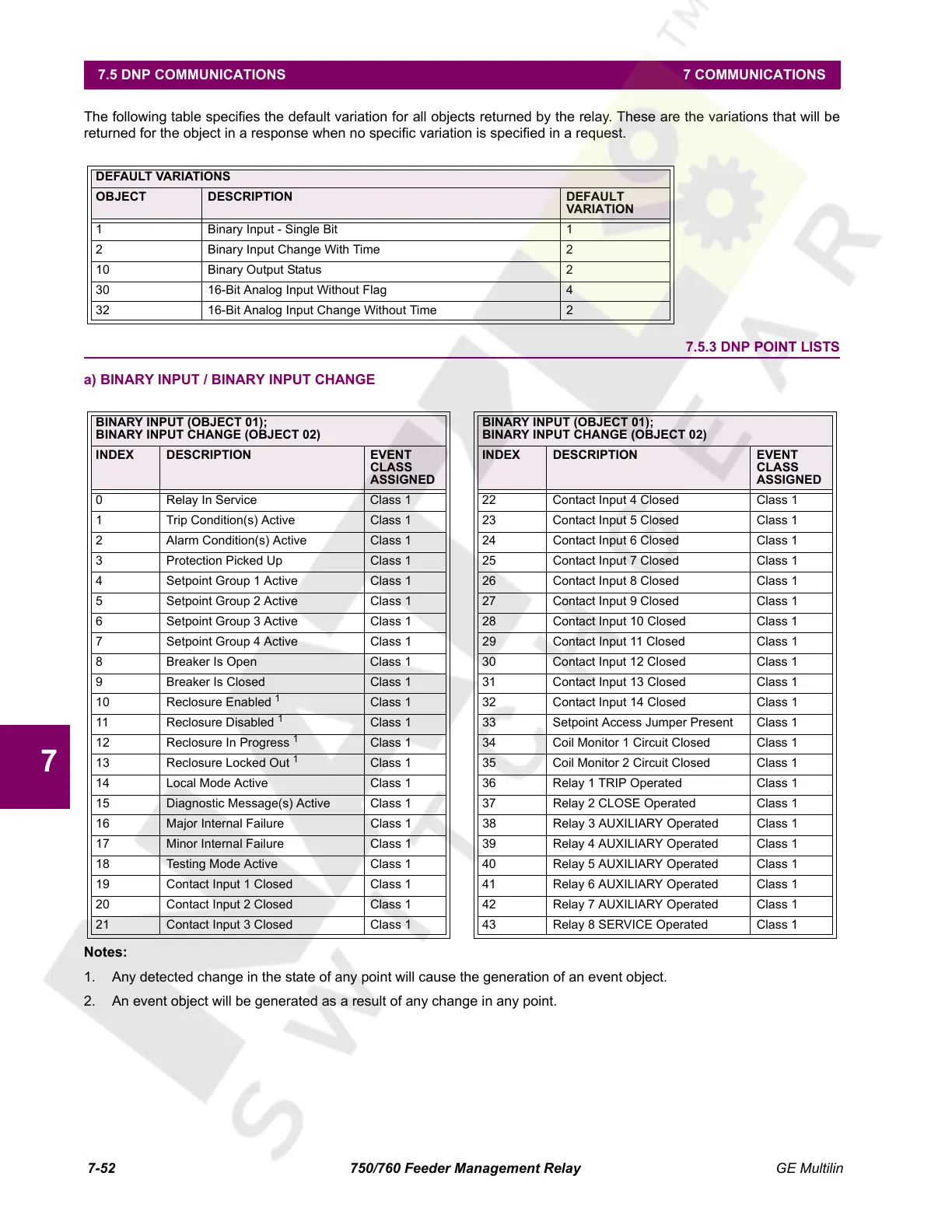

7-52 750/760 Feeder Management Relay GE Multilin
7.5 DNP COMMUNICATIONS 7 COMMUNICATIONS
7
The following table specifies the default variation for all objects returned by the relay. These are the variations that will be
returned for the object in a response when no specific variation is specified in a request.
7.5.3 DNP POINT LISTS
a) BINARY INPUT / BINARY INPUT CHANGE
Notes:
1. Any detected change in the state of any point will cause the generation of an event object.
2. An event object will be generated as a result of any change in any point.
DEFAULT VARIATIONS
OBJECT DESCRIPTION DEFAULT
VARIATION
1 Binary Input - Single Bit 1
2 Binary Input Change With Time 2
10 Binary Output Status 2
30 16-Bit Analog Input Without Flag 4
32 16-Bit Analog Input Change Without Time 2
BINARY INPUT (OBJECT 01);
BINARY INPUT CHANGE (OBJECT 02)
BINARY INPUT (OBJECT 01);
BINARY INPUT CHANGE (OBJECT 02)
INDEX DESCRIPTION EVENT
CLASS
ASSIGNED
INDEX DESCRIPTION EVENT
CLASS
ASSIGNED
0 Relay In Service Class 1 22 Contact Input 4 Closed Class 1
1 Trip Condition(s) Active Class 1 23 Contact Input 5 Closed Class 1
2 Alarm Condition(s) Active Class 1 24 Contact Input 6 Closed Class 1
3 Protection Picked Up Class 1 25 Contact Input 7 Closed Class 1
4 Setpoint Group 1 Active Class 1 26 Contact Input 8 Closed Class 1
5 Setpoint Group 2 Active Class 1 27 Contact Input 9 Closed Class 1
6 Setpoint Group 3 Active Class 1 28 Contact Input 10 Closed Class 1
7 Setpoint Group 4 Active Class 1 29 Contact Input 11 Closed Class 1
8 Breaker Is Open Class 1 30 Contact Input 12 Closed Class 1
9 Breaker Is Closed Class 1 31 Contact Input 13 Closed Class 1
10 Reclosure Enabled
1
Class 1 32 Contact Input 14 Closed Class 1
11 Reclosure Disabled
1
Class 1 33 Setpoint Access Jumper Present Class 1
12 Reclosure In Progress
1
Class 1 34 Coil Monitor 1 Circuit Closed Class 1
13 Reclosure Locked Out
1
Class 1 35 Coil Monitor 2 Circuit Closed Class 1
14 Local Mode Active Class 1 36 Relay 1 TRIP Operated Class 1
15 Diagnostic Message(s) Active Class 1 37 Relay 2 CLOSE Operated Class 1
16 Major Internal Failure Class 1 38 Relay 3 AUXILIARY Operated Class 1
17 Minor Internal Failure Class 1 39 Relay 4 AUXILIARY Operated Class 1
18 Testing Mode Active Class 1 40 Relay 5 AUXILIARY Operated Class 1
19 Contact Input 1 Closed Class 1 41 Relay 6 AUXILIARY Operated Class 1
20 Contact Input 2 Closed Class 1 42 Relay 7 AUXILIARY Operated Class 1
21 Contact Input 3 Closed Class 1 43 Relay 8 SERVICE Operated Class 1
