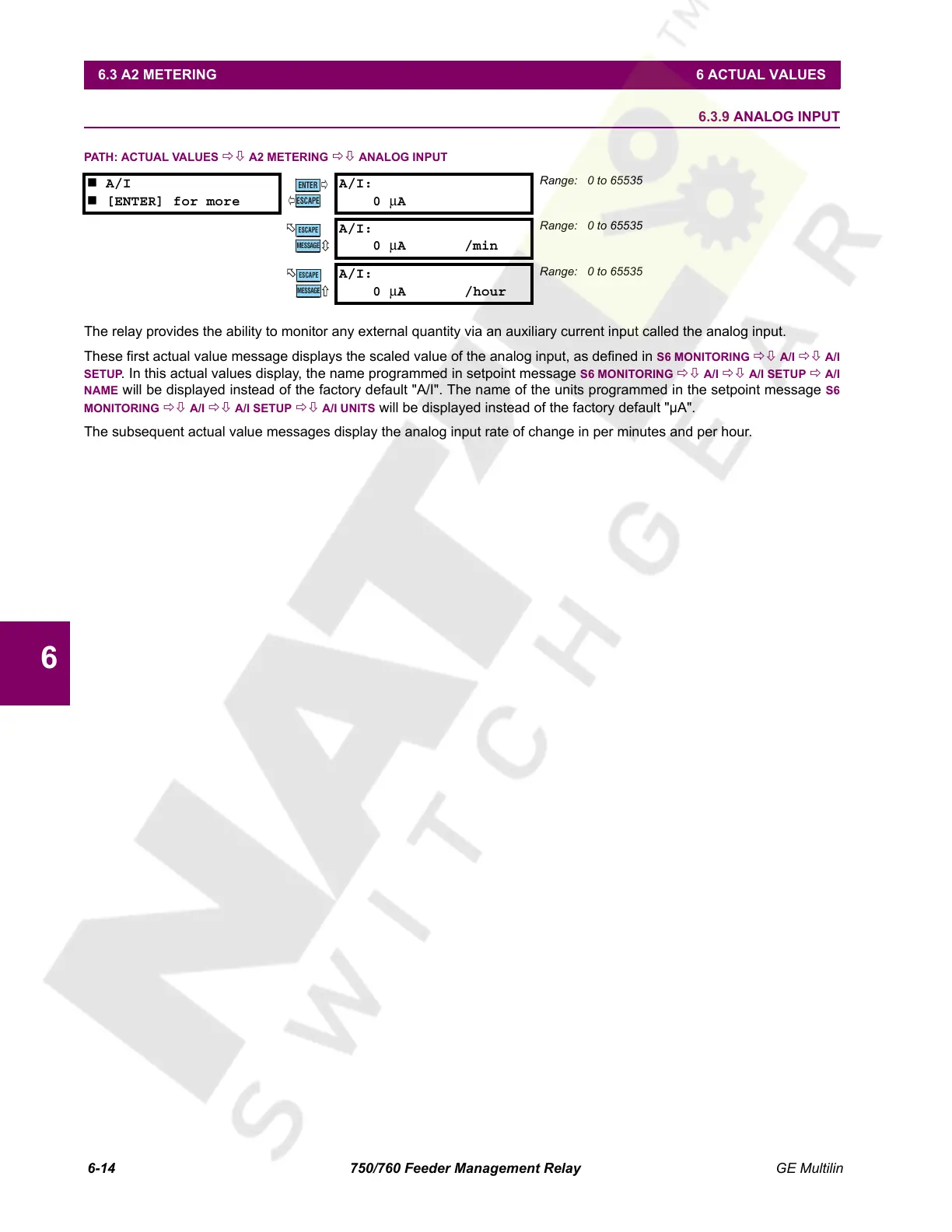

6-14 750/760 Feeder Management Relay GE Multilin
6.3 A2 METERING 6 ACTUAL VALUES
6
6.3.9 ANALOG INPUT
PATH: ACTUAL VALUES ÖØ A2 METERING ÖØ ANALOG INPUT
The relay provides the ability to monitor any external quantity via an auxiliary current input called the analog input.
These first actual value message displays the scaled value of the analog input, as defined in S6 MONITORING ÖØ A/I ÖØ A/I
SETUP. In this actual values display, the name programmed in setpoint message S6 MONITORING ÖØ A/I ÖØ A/I SETUP Ö A/I
NAME will be displayed instead of the factory default "A/I". The name of the units programmed in the setpoint message S6
MONITORING ÖØ A/I ÖØ A/I SETUP ÖØ A/I UNITS will be displayed instead of the factory default "µA".
The subsequent actual value messages display the analog input rate of change in per minutes and per hour.
 A/I
 [ENTER] for more
A/I:
0 μA
Range: 0 to 65535
A/I:
0 μA /min
Range: 0 to 65535
A/I:
0 μA /hour
Range: 0 to 65535
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
