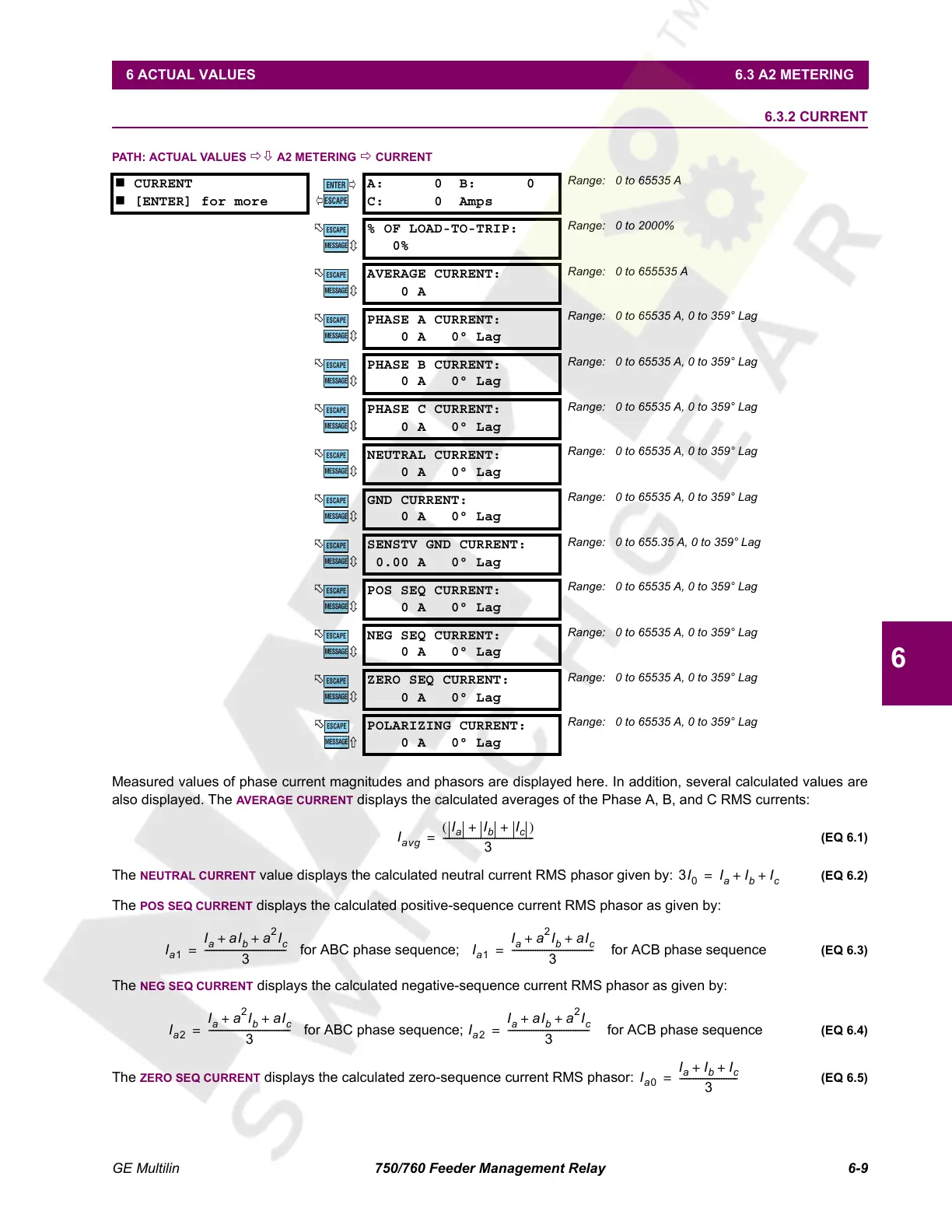

GE Multilin 750/760 Feeder Management Relay 6-9
6 ACTUAL VALUES 6.3 A2 METERING
6
6.3.2 CURRENT
PATH: ACTUAL VALUES ÖØ A2 METERING Ö CURRENT
Measured values of phase current magnitudes and phasors are displayed here. In addition, several calculated values are
also displayed. The
AVERAGE CURRENT displays the calculated averages of the Phase A, B, and C RMS currents:
(EQ 6.1)
The NEUTRAL CURRENT value displays the calculated neutral current RMS phasor given by: (EQ 6.2)
The POS SEQ CURRENT displays the calculated positive-sequence current RMS phasor as given by:
(EQ 6.3)
The NEG SEQ CURRENT displays the calculated negative-sequence current RMS phasor as given by:
(EQ 6.4)
The ZERO SEQ CURRENT displays the calculated zero-sequence current RMS phasor: (EQ 6.5)
 CURRENT
 [ENTER] for more
A: 0 B: 0
C: 0 Amps
Range: 0 to 65535 A
% OF LOAD-TO-TRIP:
0%
Range: 0 to 2000%
AVERAGE CURRENT:
0 A
Range: 0 to 655535 A
PHASE A CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
PHASE B CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
PHASE C CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
NEUTRAL CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
GND CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
SENSTV GND CURRENT:
0.00 A 0° Lag
Range: 0 to 655.35 A, 0 to 359° Lag
POS SEQ CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
NEG SEQ CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
ZERO SEQ CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
POLARIZING CURRENT:
0 A 0° Lag
Range: 0 to 65535 A, 0 to 359° Lag
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
I
avg
I
a
I
b
I
c
++()
3
---------------------------------------=
3I
0
I
a
I
b
I
c
++=
I
a1
I
a
aI
b
a
2
I
c
++
3
-----------------------------------
for ABC phase sequence; I
a1
I
a
a
2
I
b
aI
c
++
3
-----------------------------------
for ACB phase sequence==
I
a2
I
a
a
2
I
b
aI
c
++
3
-----------------------------------
for ABC phase sequence; I
a2
I
a
aI
b
a
2
I
c
++
3
-----------------------------------
for ACB phase sequence==
I
a0
I
a
I
b
I
c
++
3
-------------------------=
