GE Feeder Management Relay 750 User Manual

GE Multilin 750/760 Feeder Management Relay 5-47
5 SETPOINTS 5.6 S5 PROTECTION
5

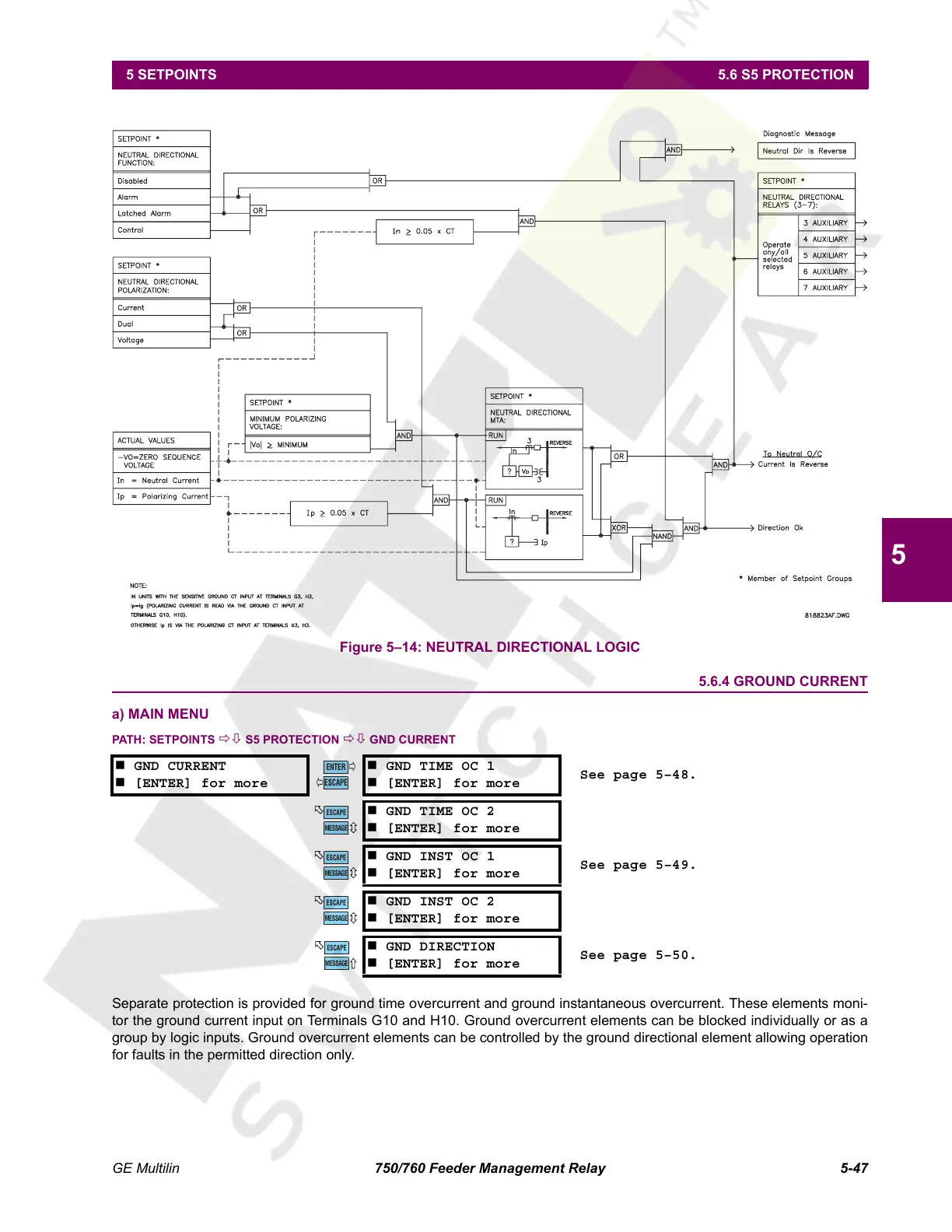

Figure 5–14: NEUTRAL DIRECTIONAL LOGIC
5.6.4 GROUND CURRENT
a) MAIN MENU
PATH: SETPOINTS ÖØ S5 PROTECTION ÖØ GND CURRENT
Separate protection is provided for ground time overcurrent and ground instantaneous overcurrent. These elements moni-
tor the ground current input on Terminals G10 and H10. Ground overcurrent elements can be blocked individually or as a
group by logic inputs. Ground overcurrent elements can be controlled by the ground directional element allowing operation
for faults in the permitted direction only.
 GND CURRENT
 [ENTER] for more
 GND TIME OC 1
 [ENTER] for more
See page 5–48.
 GND TIME OC 2
 [ENTER] for more
 GND INST OC 1
 [ENTER] for more
See page 5–49.
 GND INST OC 2
 [ENTER] for more
 GND DIRECTION
 [ENTER] for more
See page 5–50.
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
Courtesy of NationalSwitchgear.com

GE Feeder Management Relay 750 Specifications

General

Device Type	Feeder Management Relay
Model	750
Mounting	Panel Mount
Nominal AC Frequency	50/60 Hz
Digital Inputs	8
Current Rating	Up to 5 A
Frequency Rating	50/60 Hz
Operating Temperature	-40°C to +70°C
Protection Functions	Overcurrent, Voltage, Frequency, Directional Power, Breaker Failure
Communication Protocols	Modbus, DNP3, IEC 61850
Nominal AC Voltage	120/240 V AC
VT Inputs	3
CT Inputs	Up to 4
Communication Ports	Ethernet, RS-485
Enclosure Rating	IP54
