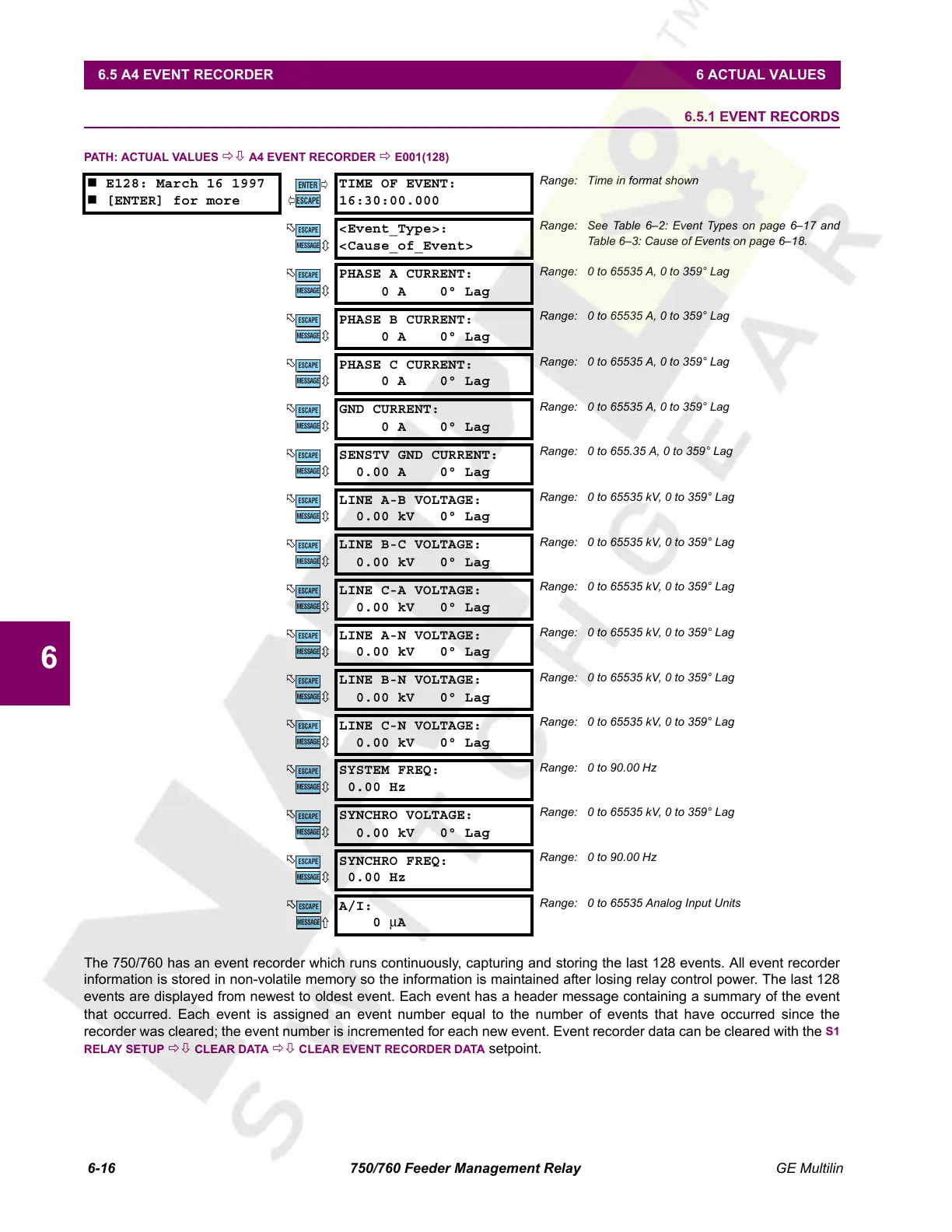

6-16 750/760 Feeder Management Relay GE Multilin

6.5 A4 EVENT RECORDER 6 ACTUAL VALUES

6.5A4 EVENT RECORDER 6.5.1 EVENT RECORDS

PATH: ACTUAL VALUES ÖØ A4 EVENT RECORDER Ö E001(128)

The 750/760 has an event recorder which runs continuously, capturing and storing the last 128 events. All event recorder

information is stored in non-volatile memory so the information is maintained after losing relay control power. The last 128

events are displayed from newest to oldest event. Each event has a header message containing a summary of the event

that occurred. Each event is assigned an event number equal to the number of events that have occurred since the

recorder was cleared; the event number is incremented for each new event. Event recorder data can be cleared with the

RELAY SETUP ÖØ CLEAR DATA ÖØ CLEAR EVENT RECORDER DATA setpoint.

 E128: March 16 1997

 [ENTER] for more

TIME OF EVENT:

16:30:00.000

Range: Time in format shown

<Event_Type>:

<Cause_of_Event>

Range: See Table 6–2: Event Types on page 6–17 and

Table 6–3: Cause of Events on page 6–18.

PHASE A CURRENT:

0 A 0° Lag

Range: 0 to 65535 A, 0 to 359° Lag

PHASE B CURRENT:

0 A 0° Lag

Range: 0 to 65535 A, 0 to 359° Lag

PHASE C CURRENT:

0 A 0° Lag

Range: 0 to 65535 A, 0 to 359° Lag

GND CURRENT:

0 A 0° Lag

Range: 0 to 65535 A, 0 to 359° Lag

SENSTV GND CURRENT:

0.00 A 0° Lag

Range: 0 to 655.35 A, 0 to 359° Lag

LINE A-B VOLTAGE:

0.00 kV 0° Lag
