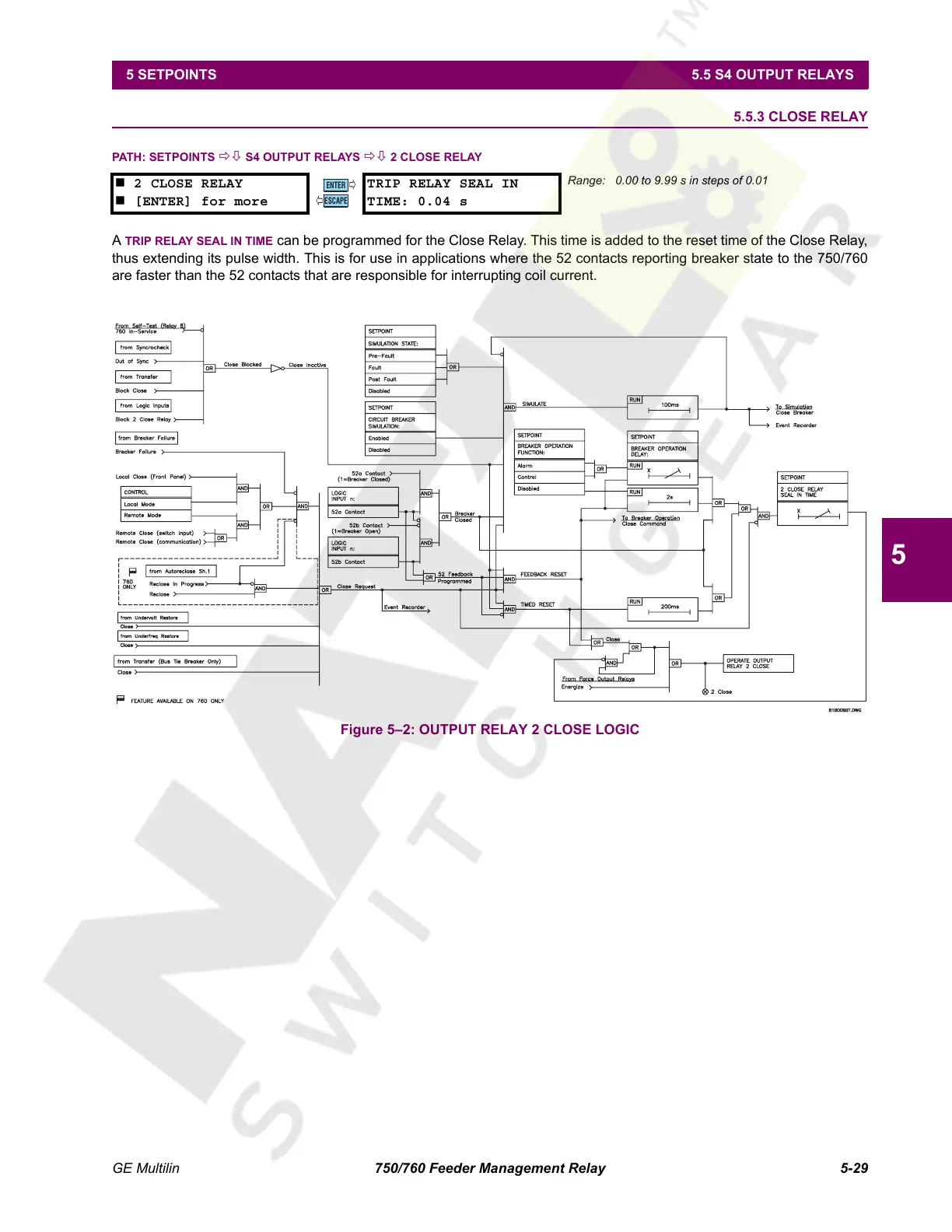

GE Multilin 750/760 Feeder Management Relay 5-29
5 SETPOINTS 5.5 S4 OUTPUT RELAYS
5
5.5.3 CLOSE RELAY
PATH: SETPOINTS ÖØ S4 OUTPUT RELAYS ÖØ 2 CLOSE RELAY
A TRIP RELAY SEAL IN TIME can be programmed for the Close Relay. This time is added to the reset time of the Close Relay,
thus extending its pulse width. This is for use in applications where the 52 contacts reporting breaker state to the 750/760
are faster than the 52 contacts that are responsible for interrupting coil current.
Figure 5–2: OUTPUT RELAY 2 CLOSE LOGIC
îš„ 2 CLOSE RELAY
îš„ [ENTER] for more
TRIP RELAY SEAL IN
TIME: 0.04 s
Range: 0.00 to 9.99 s in steps of 0.01
ENTER
ESCAPE
ð
ð
