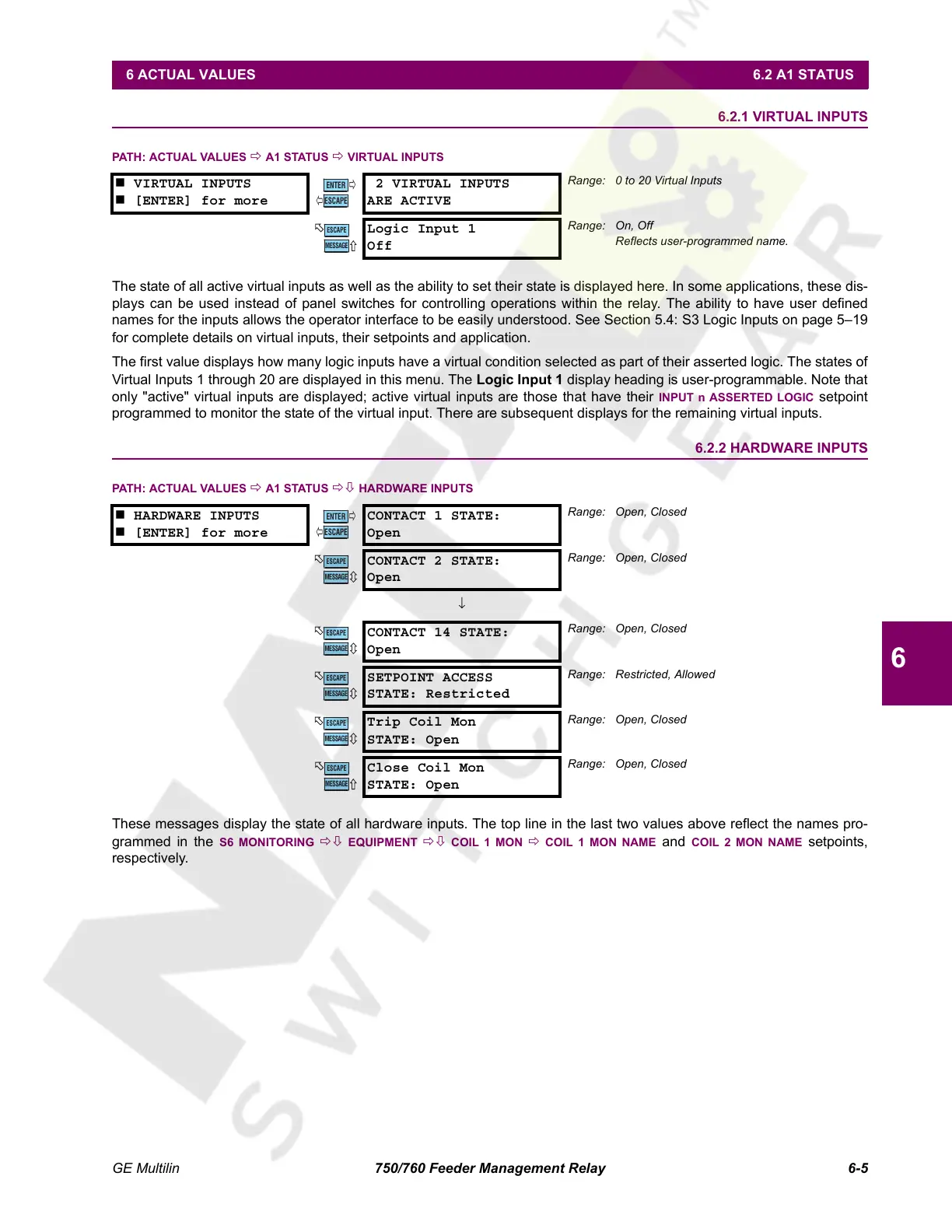

GE Multilin 750/760 Feeder Management Relay 6-5
6 ACTUAL VALUES 6.2 A1 STATUS
6
6.2A1 STATUS 6.2.1 VIRTUAL INPUTS
PATH: ACTUAL VALUES Ö A1 STATUS Ö VIRTUAL INPUTS
The state of all active virtual inputs as well as the ability to set their state is displayed here. In some applications, these dis-
plays can be used instead of panel switches for controlling operations within the relay. The ability to have user defined
names for the inputs allows the operator interface to be easily understood. See Section 5.4: S3 Logic Inputs on page 5–19
for complete details on virtual inputs, their setpoints and application.
The first value displays how many logic inputs have a virtual condition selected as part of their asserted logic. The states of
Virtual Inputs 1 through 20 are displayed in this menu. The Logic Input 1 display heading is user-programmable. Note that
only "active" virtual inputs are displayed; active virtual inputs are those that have their
INPUT n ASSERTED LOGIC setpoint
programmed to monitor the state of the virtual input. There are subsequent displays for the remaining virtual inputs.
6.2.2 HARDWARE INPUTS
PATH: ACTUAL VALUES Ö A1 STATUS ÖØ HARDWARE INPUTS
These messages display the state of all hardware inputs. The top line in the last two values above reflect the names pro-
grammed in the
S6 MONITORING ÖØ EQUIPMENT ÖØ COIL 1 MON Ö COIL 1 MON NAME and COIL 2 MON NAME setpoints,
respectively.
 VIRTUAL INPUTS
 [ENTER] for more
2 VIRTUAL INPUTS
ARE ACTIVE
Range: 0 to 20 Virtual Inputs
Logic Input 1
Off
Range: On, Off
Reflects user-programmed name.
 HARDWARE INPUTS
 [ENTER] for more
CONTACT 1 STATE:
Open
Range: Open, Closed
CONTACT 2 STATE:
Open
Range: Open, Closed
↓
CONTACT 14 STATE:
Open
Range: Open, Closed
SETPOINT ACCESS
STATE: Restricted
Range: Restricted, Allowed
Trip Coil Mon
STATE: Open
Range: Open, Closed
Close Coil Mon
STATE: Open
Range: Open, Closed
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
