GE Multilin 750/760 Feeder Management Relay 5-51
5 SETPOINTS 5.6 S5 PROTECTION
5

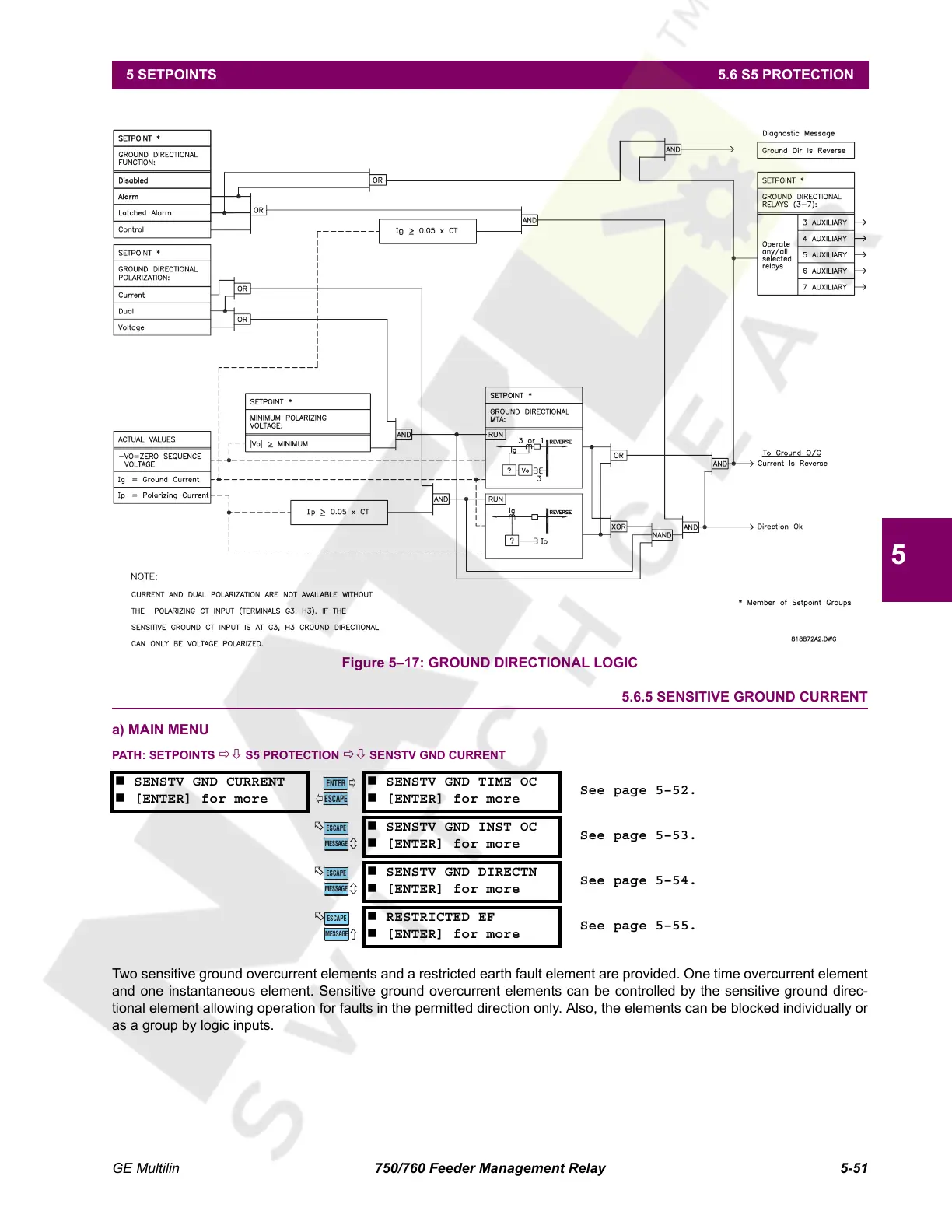

Figure 5–17: GROUND DIRECTIONAL LOGIC
5.6.5 SENSITIVE GROUND CURRENT
a) MAIN MENU
PATH: SETPOINTS ÖØ S5 PROTECTION ÖØ SENSTV GND CURRENT
Two sensitive ground overcurrent elements and a restricted earth fault element are provided. One time overcurrent element
and one instantaneous element. Sensitive ground overcurrent elements can be controlled by the sensitive ground direc-
tional element allowing operation for faults in the permitted direction only. Also, the elements can be blocked individually or
as a group by logic inputs.
îš„ SENSTV GND CURRENT
îš„ [ENTER] for more
îš„ SENSTV GND TIME OC
îš„ [ENTER] for more
See page 5–52.
îš„ SENSTV GND INST OC
îš„ [ENTER] for more
See page 5–53.
îš„ SENSTV GND DIRECTN
îš„ [ENTER] for more
See page 5–54.
îš„ RESTRICTED EF
îš„ [ENTER] for more
See page 5–55.
