5 SETPOINTS 5.6 S5 PROTECTION
5
c) SENSITIVE GROUND INSTANTANEOUS OC
PATH: SETPOINTS ÖØ S5 PROTECTION ÖØ SENSTV GND CURRENT ÖØ SENSTV GND INST OC
The sensitive ground instantaneous overcurrent element, ANSI device 50SG is programmed in this subgroup.

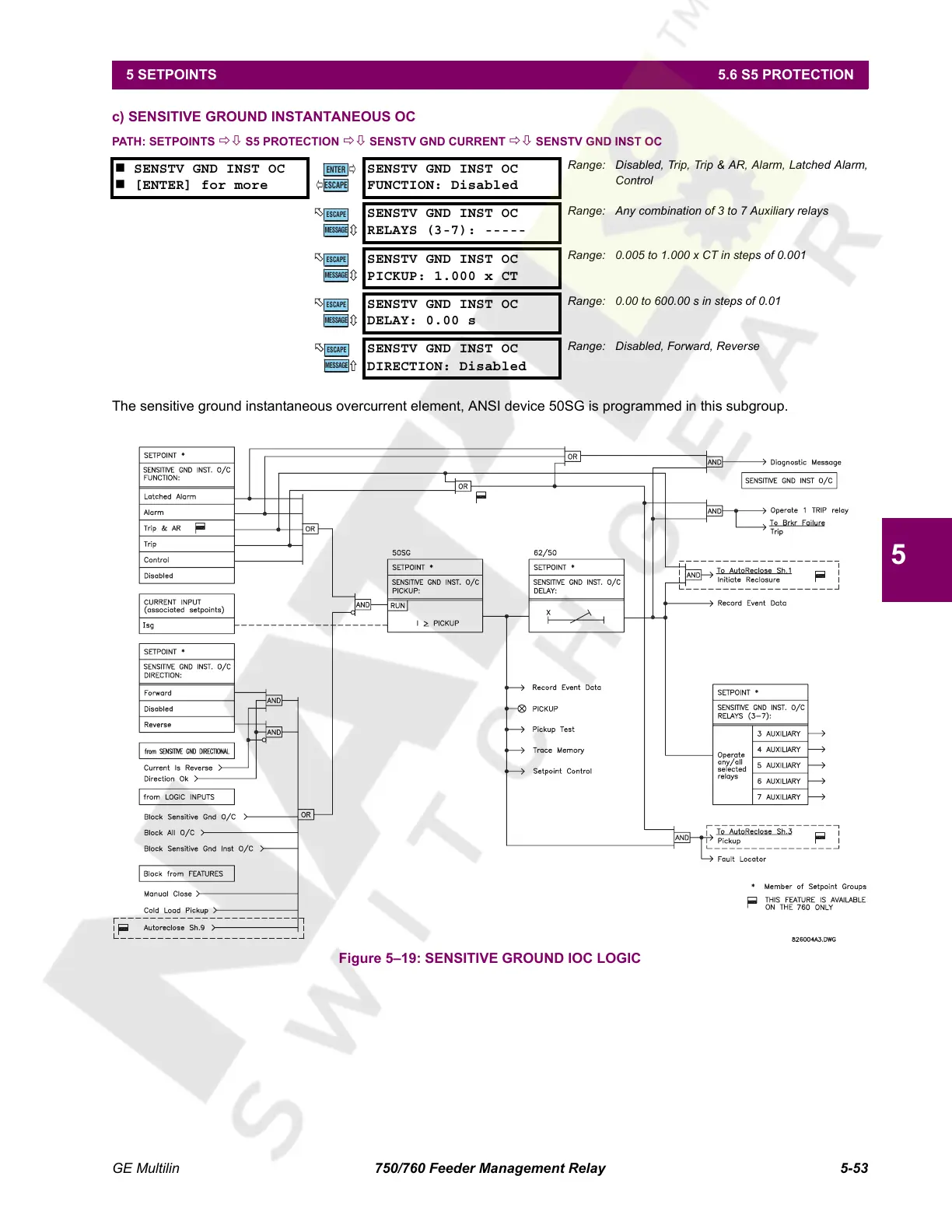

Figure 5–19: SENSITIVE GROUND IOC LOGIC
 SENSTV GND INST OC
 [ENTER] for more
SENSTV GND INST OC
FUNCTION: Disabled
Range: Disabled, Trip, Trip & AR, Alarm, Latched Alarm,
Control
SENSTV GND INST OC
RELAYS (3-7): -----
Range: Any combination of 3 to 7 Auxiliary relays
SENSTV GND INST OC
PICKUP: 1.000 x CT
Range: 0.005 to 1.000 x CT in steps of 0.001
SENSTV GND INST OC
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01
SENSTV GND INST OC
DIRECTION: Disabled
Range: Disabled, Forward, Reverse
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
