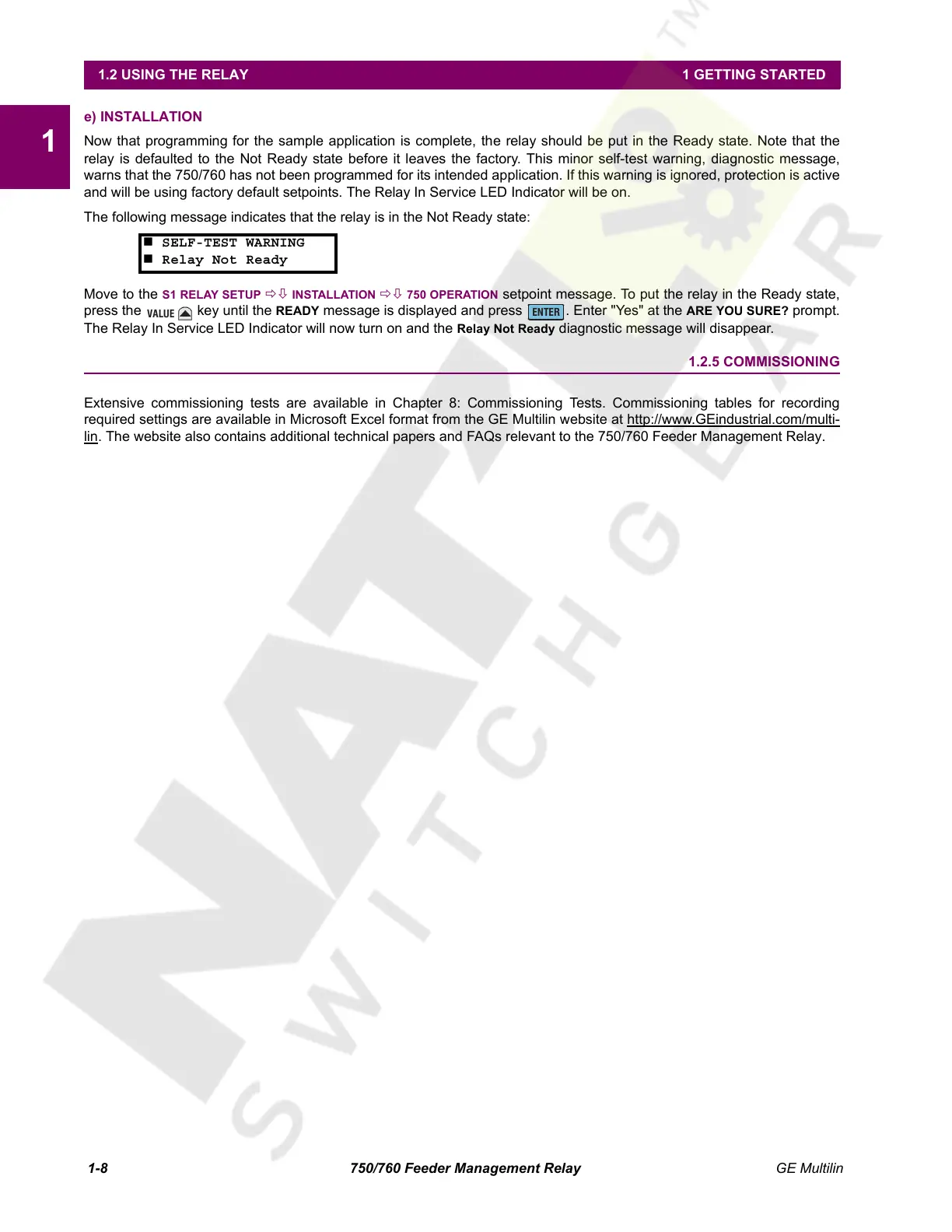

1-8 750/760 Feeder Management Relay GE Multilin
1.2 USING THE RELAY 1 GETTING STARTED
1
e) INSTALLATION
Now that programming for the sample application is complete, the relay should be put in the Ready state. Note that the
relay is defaulted to the Not Ready state before it leaves the factory. This minor self-test warning, diagnostic message,
warns that the 750/760 has not been programmed for its intended application. If this warning is ignored, protection is active
and will be using factory default setpoints. The Relay In Service LED Indicator will be on.
The following message indicates that the relay is in the Not Ready state:
Move to the
S1 RELAY SETUP ÖØ INSTALLATION ÖØ 750 OPERATION setpoint message. To put the relay in the Ready state,
press the key until the READY message is displayed and press . Enter "Yes" at the ARE YOU SURE? prompt.
The Relay In Service LED Indicator will now turn on and the
Relay Not Ready diagnostic message will disappear.
1.2.5 COMMISSIONING
Extensive commissioning tests are available in Chapter 8: Commissioning Tests. Commissioning tables for recording
required settings are available in Microsoft Excel format from the GE Multilin website at http://www.GEindustrial.com/multi-
lin. The website also contains additional technical papers and FAQs relevant to the 750/760 Feeder Management Relay.
îš„ SELF-TEST WARNING
îš„ Relay Not Ready
VALUE
ENTER
