5-28 750/760 Feeder Management Relay GE Multilin
5.5 S4 OUTPUT RELAYS 5 SETPOINTS
5
5.5.2 TRIP RELAY
PATH: SETPOINTS ÖØ S4 OUTPUT RELAYS Ö 1 TRIP RELAY
A TRIP RELAY SEAL IN TIME can be programmed for the Trip Relay. This time is added to the reset time of the Trip Relay, thus
extending its pulse width. This is for use in applications where the 52 contacts reporting breaker state to the 750/760 are
faster than the 52 contacts that are responsible for interrupting coil current.

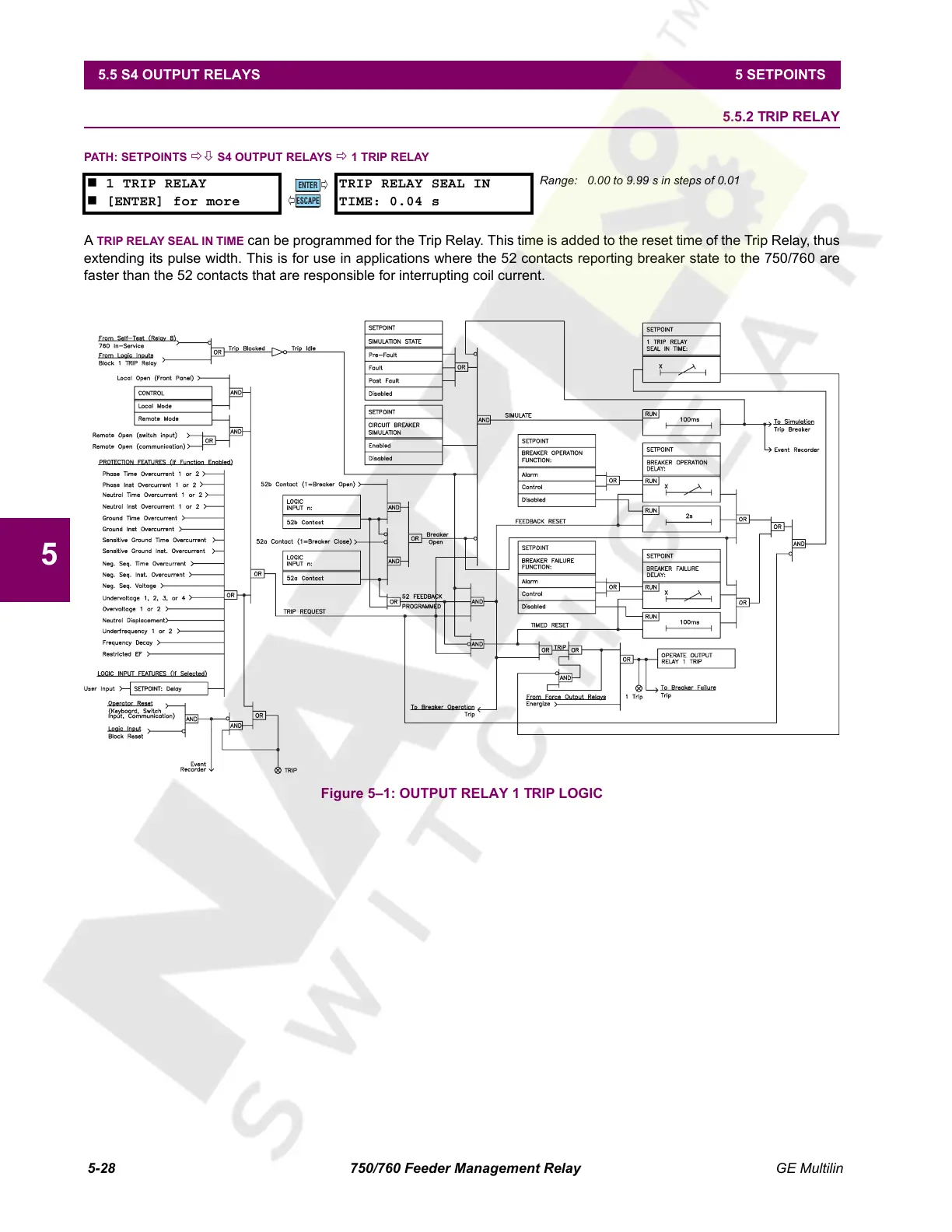

Figure 5–1: OUTPUT RELAY 1 TRIP LOGIC
 1 TRIP RELAY
 [ENTER] for more
TRIP RELAY SEAL IN
TIME: 0.04 s
Range: 0.00 to 9.99 s in steps of 0.01
ENTER
ESCAPE
ð
ð
