5 SETPOINTS 5.6 S5 PROTECTION
5
c) GROUND INSTANTANEOUS OC
PATH: SETPOINTS ÖØ S5 PROTECTION ÖØ GND CURRENT ÖØ GND INST OC 1(2)
The equivalent of a single ground instantaneous relay, ANSI device 50G, is programmed in this subgroup.

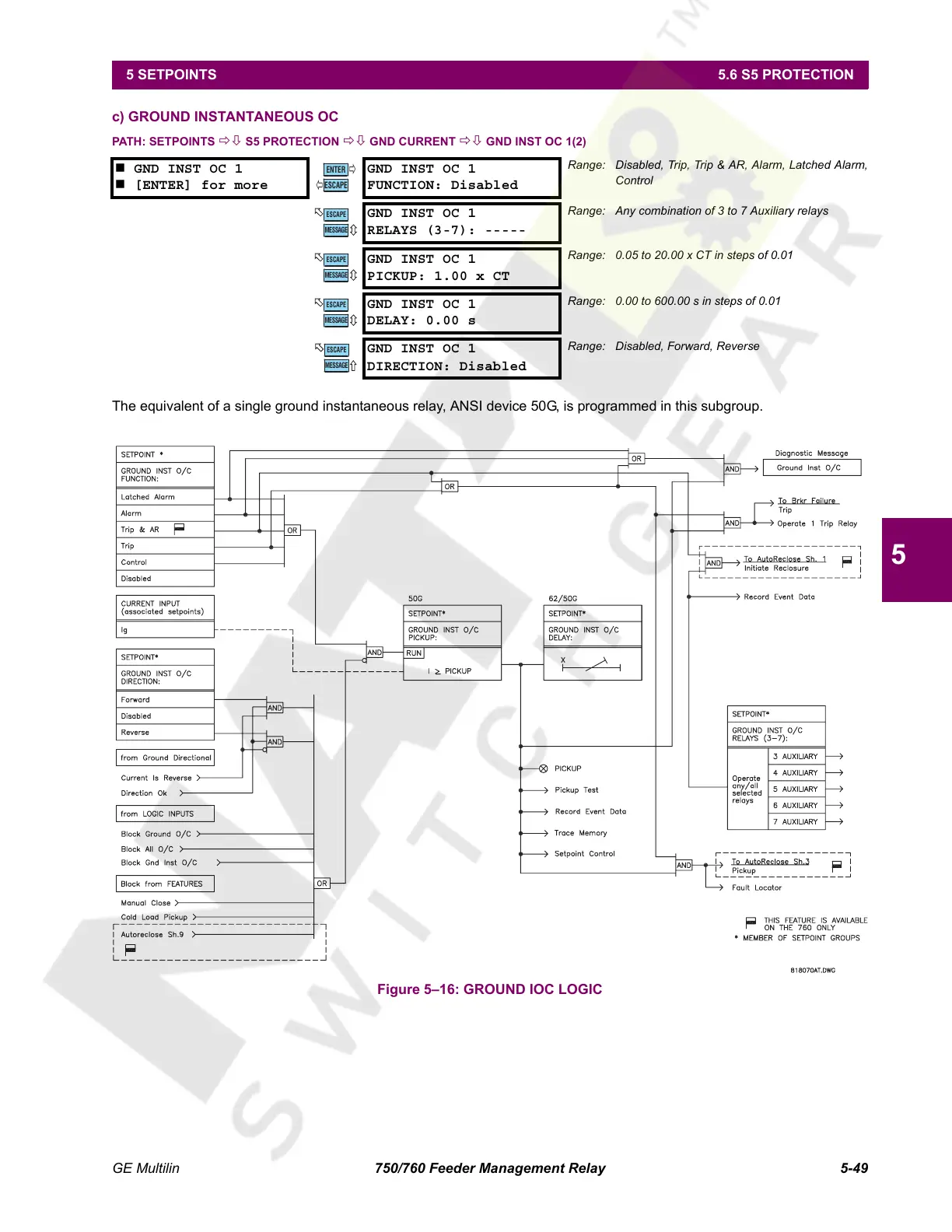

Figure 5–16: GROUND IOC LOGIC
 GND INST OC 1
 [ENTER] for more
GND INST OC 1
FUNCTION: Disabled
Range: Disabled, Trip, Trip & AR, Alarm, Latched Alarm,
Control
GND INST OC 1
RELAYS (3-7): -----
Range: Any combination of 3 to 7 Auxiliary relays
GND INST OC 1
PICKUP: 1.00 x CT
Range: 0.05 to 20.00 x CT in steps of 0.01
GND INST OC 1
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01
GND INST OC 1
DIRECTION: Disabled
Range: Disabled, Forward, Reverse
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
