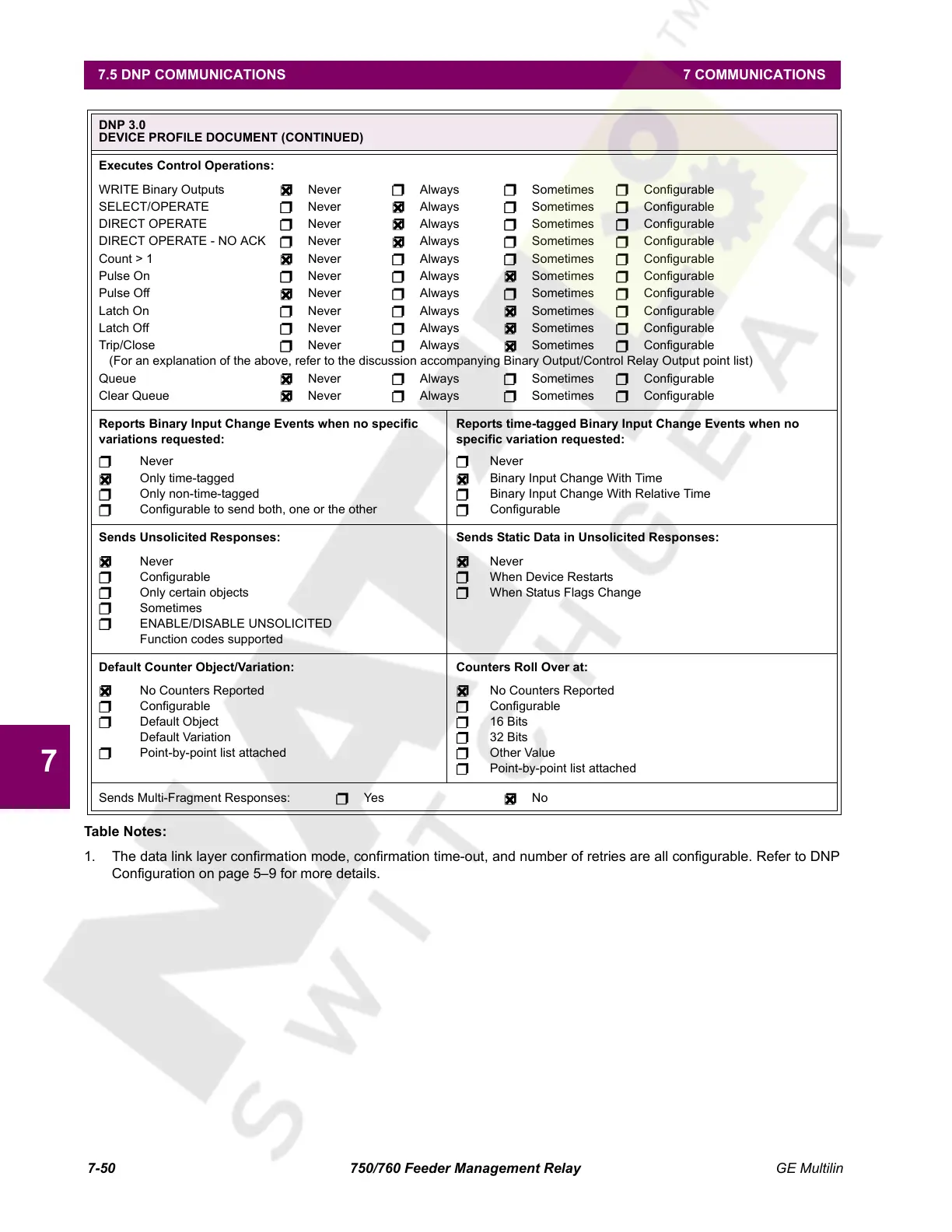

7.5 DNP COMMUNICATIONS 7 COMMUNICATIONS
7
Table Notes:
1. The data link layer confirmation mode, confirmation time-out, and number of retries are all configurable. Refer to DNP
Configuration on page 5–9 for more details.
Executes Control Operations:
WRITE Binary Outputs Never  Always  Sometimes  Configurable
SELECT/OPERATE  Never Always  Sometimes  Configurable
DIRECT OPERATE  Never Always  Sometimes  Configurable
DIRECT OPERATE - NO ACK  Never Always  Sometimes  Configurable
Count > 1 Never  Always  Sometimes  Configurable
Pulse On  Never  Always Sometimes  Configurable
Pulse Off Never  Always  Sometimes  Configurable
Latch On  Never  Always Sometimes  Configurable
Latch Off  Never  Always Sometimes  Configurable
Trip/Close  Never  Always Sometimes  Configurable
(For an explanation of the above, refer to the discussion accompanying Binary Output/Control Relay Output point list)
Queue Never  Always  Sometimes  Configurable
Clear Queue Never  Always  Sometimes  Configurable
Reports Binary Input Change Events when no specific
variations requested:
 Never
Only time-tagged
 Only non-time-tagged
 Configurable to send both, one or the other
Reports time-tagged Binary Input Change Events when no
specific variation requested:
 Never
Binary Input Change With Time
 Binary Input Change With Relative Time
 Configurable
Sends Unsolicited Responses:
Never
 Configurable
 Only certain objects
 Sometimes
 ENABLE/DISABLE UNSOLICITED
Function codes supported
Sends Static Data in Unsolicited Responses:
Never
 When Device Restarts
 When Status Flags Change
Default Counter Object/Variation:
No Counters Reported
 Configurable
 Default Object
Default Variation
 Point-by-point list attached
Counters Roll Over at:
No Counters Reported
 Configurable
 16 Bits
 32 Bits
 Other Value
 Point-by-point list attached
Sends Multi-Fragment Responses:  Yes No
DNP 3.0
