5-74 750/760 Feeder Management Relay GE Multilin
5.7 S6 MONITORING 5 SETPOINTS
5
c) NEUTRAL CURRENT LEVEL
PATH: SETPOINTS ÖØ S6 MONITORING Ö CURRENT LEVEL ÖØ NEUTRAL CURRENT

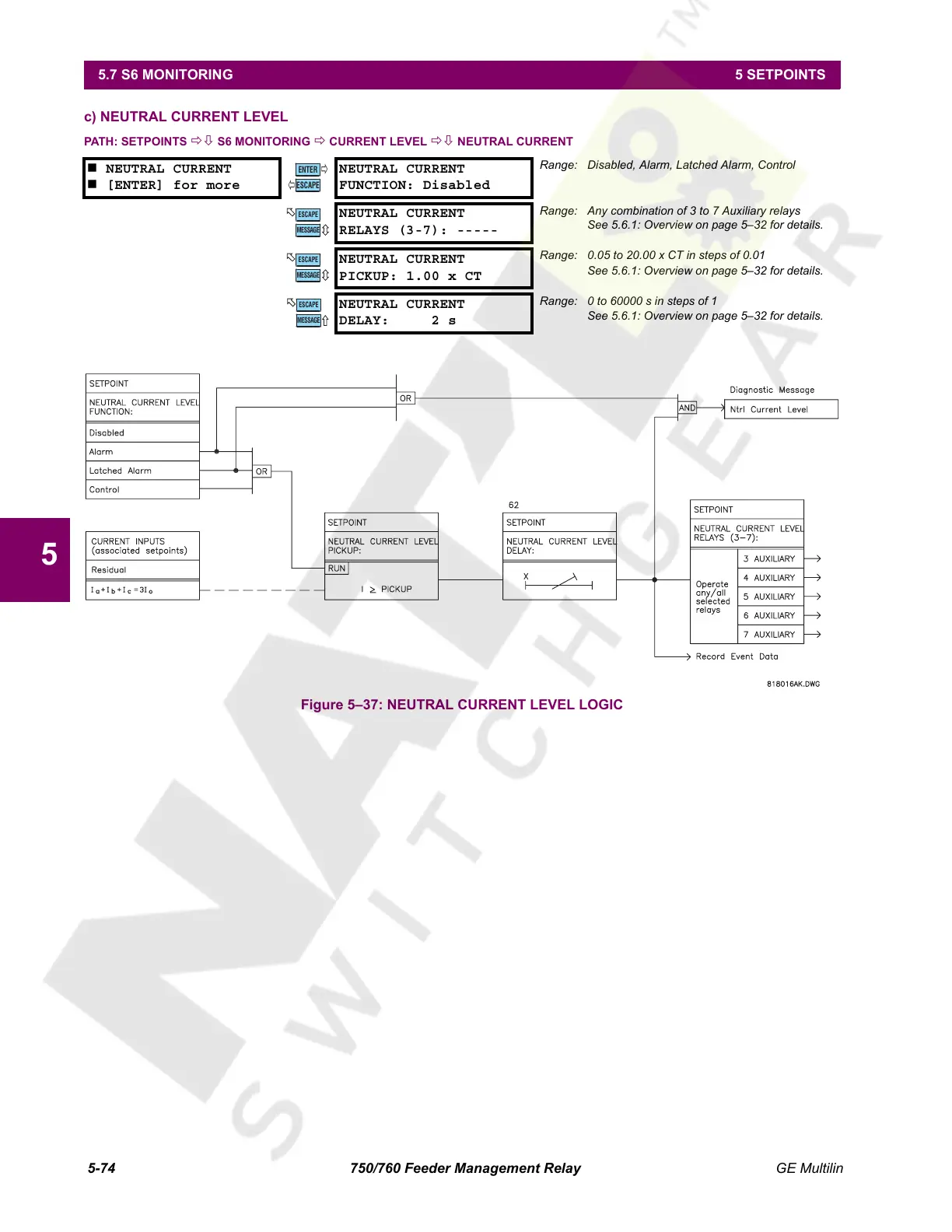

Figure 5–37: NEUTRAL CURRENT LEVEL LOGIC
 NEUTRAL CURRENT
 [ENTER] for more
NEUTRAL CURRENT
FUNCTION: Disabled
Range: Disabled, Alarm, Latched Alarm, Control
NEUTRAL CURRENT
RELAYS (3-7): -----
Range: Any combination of 3 to 7 Auxiliary relays
See 5.6.1: Overview on page 5–32 for details.
NEUTRAL CURRENT
PICKUP: 1.00 x CT
Range: 0.05 to 20.00 x CT in steps of 0.01
See 5.6.1: Overview on page 5–32 for details.
NEUTRAL CURRENT
DELAY: 2 s
Range: 0 to 60000 s in steps of 1
See 5.6.1: Overview on page 5–32 for details.
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
