5-104 750/760 Feeder Management Relay GE Multilin
5.8 S7 CONTROL 5 SETPOINTS
5

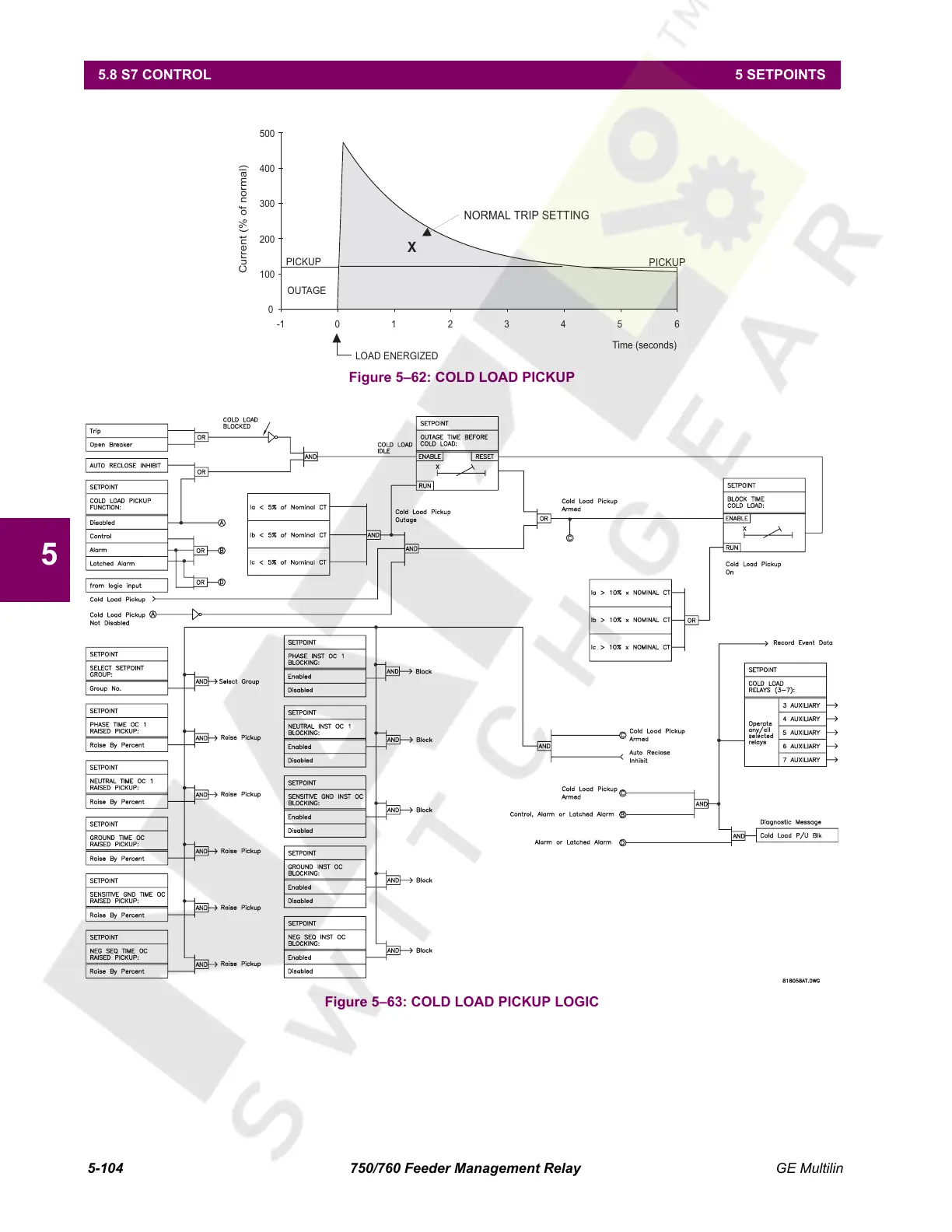

Figure 5–62: COLD LOAD PICKUP
Figure 5–63: COLD LOAD PICKUP LOGIC
Time (seconds)
Current (% of normal)
0
100
200
300
400
500
-10123456
OUTAGE
PICKUP
PICKUP
LOAD ENERGIZED
X
NORMAL TRIP SETTING
Courtesy of NationalSwitchgear.com
