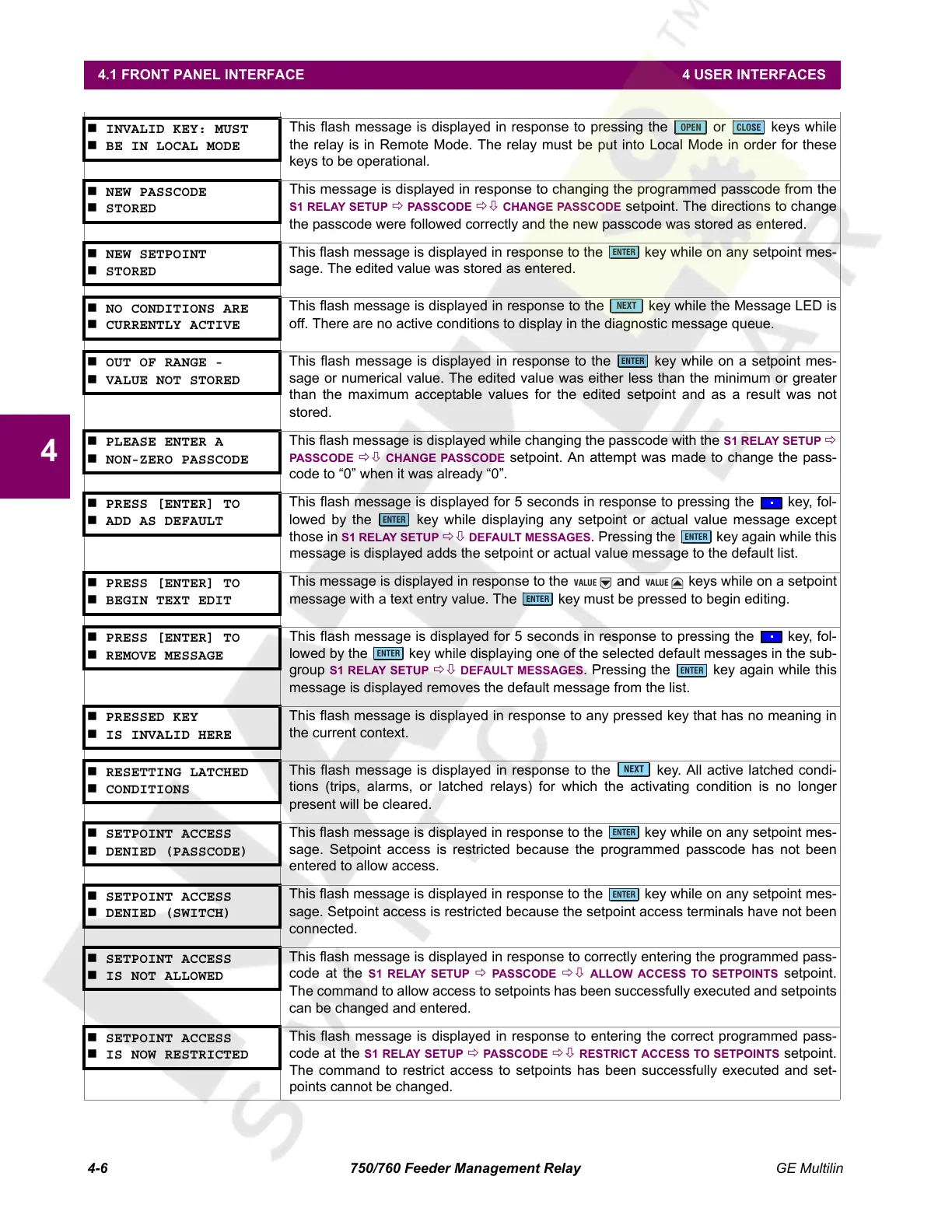

4.1 FRONT PANEL INTERFACE 4 USER INTERFACES
4
INVALID KEY: MUST
BE IN LOCAL MODE
This flash message is displayed in response to pressing the or keys while
the relay is in Remote Mode. The relay must be put into Local Mode in order for these
keys to be operational.
NEW PASSCODE
STORED
This message is displayed in response to changing the programmed passcode from the
S1 RELAY SETUP Ö PASSCODE ÖØ CHANGE PASSCODE setpoint. The directions to change
the passcode were followed correctly and the new passcode was stored as entered.
NEW SETPOINT
STORED
This flash message is displayed in response to the key while on any setpoint mes-
sage. The edited value was stored as entered.
NO CONDITIONS ARE
CURRENTLY ACTIVE
This flash message is displayed in response to the key while the Message LED is
off. There are no active conditions to display in the diagnostic message queue.
OUT OF RANGE -
VALUE NOT STORED
This flash message is displayed in response to the key while on a setpoint mes-
sage or numerical value. The edited value was either less than the minimum or greater
than the maximum acceptable values for the edited setpoint and as a result was not
stored.
PLEASE ENTER A
NON-ZERO PASSCODE
This flash message is displayed while changing the passcode with the
S1 RELAY SETUP Ö
PASSCODE ÖØ CHANGE PASSCODE setpoint. An attempt was made to change the pass-
code to “0” when it was already “0”.
PRESS [ENTER] TO
ADD AS DEFAULT
This flash message is displayed for 5 seconds in response to pressing the key, fol-
lowed by the key while displaying any setpoint or actual value message except
those in
S1 RELAY SETUP ÖØ DEFAULT MESSAGES. Pressing the key again while this
message is displayed adds the setpoint or actual value message to the default list.
PRESS [ENTER] TO
BEGIN TEXT EDIT
This message is displayed in response to the and keys while on a setpoint
message with a text entry value. The key must be pressed to begin editing.
PRESS [ENTER] TO
REMOVE MESSAGE
This flash message is displayed for 5 seconds in response to pressing the key, fol-
lowed by the key while displaying one of the selected default messages in the sub-
group
S1 RELAY SETUP ÖØ DEFAULT MESSAGES. Pressing the key again while this
message is displayed removes the default message from the list.
PRESSED KEY
IS INVALID HERE
This flash message is displayed in response to any pressed key that has no meaning in
the current context.
RESETTING LATCHED
CONDITIONS
This flash message is displayed in response to the key. All active latched condi-
tions (trips, alarms, or latched relays) for which the activating condition is no longer
present will be cleared.
SETPOINT ACCESS
DENIED (PASSCODE)
This flash message is displayed in response to the key while on any setpoint mes-
sage. Setpoint access is restricted because the programmed passcode has not been
entered to allow access.
SETPOINT ACCESS
DENIED (SWITCH)
This flash message is displayed in response to the key while on any setpoint mes-
sage. Setpoint access is restricted because the setpoint access terminals have not been
connected.
SETPOINT ACCESS
IS NOT ALLOWED
This flash message is displayed in response to correctly entering the programmed pass-
code at the
S1 RELAY SETUP Ö PASSCODE ÖØ ALLOW ACCESS TO SETPOINTS setpoint.
The command to allow access to setpoints has been successfully executed and setpoints
can be changed and entered.
SETPOINT ACCESS
IS NOW RESTRICTED
This flash message is displayed in response to entering the correct programmed pass-
code at the
S1 RELAY SETUP Ö PASSCODE ÖØ RESTRICT ACCESS TO SETPOINTS setpoint.
The command to restrict access to setpoints has been successfully executed and set-
points cannot be changed.
OPEN
CLOSE
ENTER
NEXT
ENTER
ENTER
ENTER
VALUE
VALUE
ENTER
ENTER
ENTER
NEXT
ENTER
ENTER
