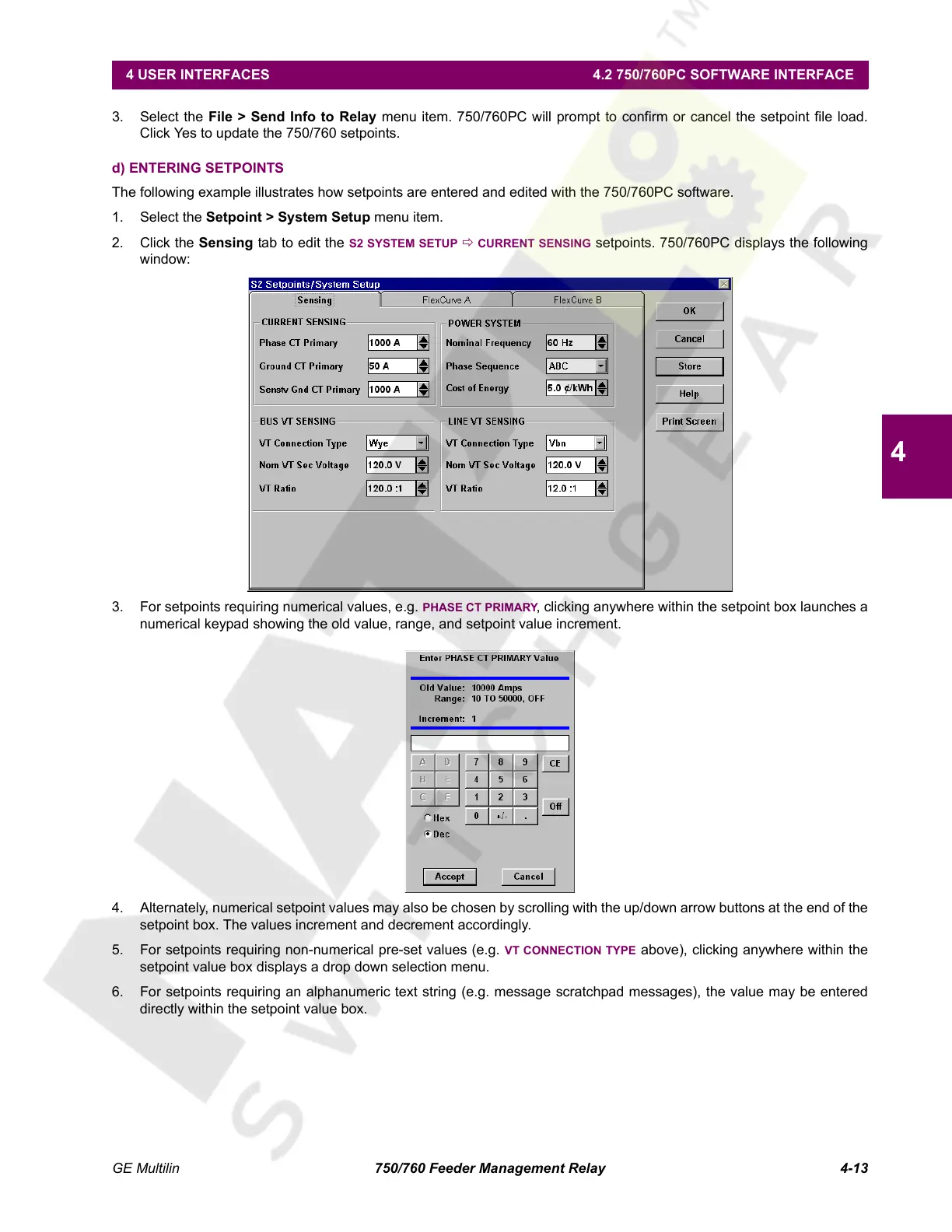

GE Multilin 750/760 Feeder Management Relay 4-13
4 USER INTERFACES 4.2 750/760PC SOFTWARE INTERFACE
4
3. Select the File > Send Info to Relay menu item. 750/760PC will prompt to confirm or cancel the setpoint file load.
Click Yes to update the 750/760 setpoints.
d) ENTERING SETPOINTS
The following example illustrates how setpoints are entered and edited with the 750/760PC software.
1. Select the Setpoint > System Setup menu item.
2. Click the Sensing tab to edit the S2 SYSTEM SETUP Ö CURRENT SENSING setpoints. 750/760PC displays the following
window:
3. For setpoints requiring numerical values, e.g.
PHASE CT PRIMARY, clicking anywhere within the setpoint box launches a
numerical keypad showing the old value, range, and setpoint value increment.
4. Alternately, numerical setpoint values may also be chosen by scrolling with the up/down arrow buttons at the end of the
setpoint box. The values increment and decrement accordingly.
5. For setpoints requiring non-numerical pre-set values (e.g.
VT CONNECTION TYPE above), clicking anywhere within the
setpoint value box displays a drop down selection menu.
6. For setpoints requiring an alphanumeric text string (e.g. message scratchpad messages), the value may be entered
directly within the setpoint value box.
