GE Multilin 750/760 Feeder Management Relay 4-17
4 USER INTERFACES 4.2 750/760PC SOFTWARE INTERFACE
4

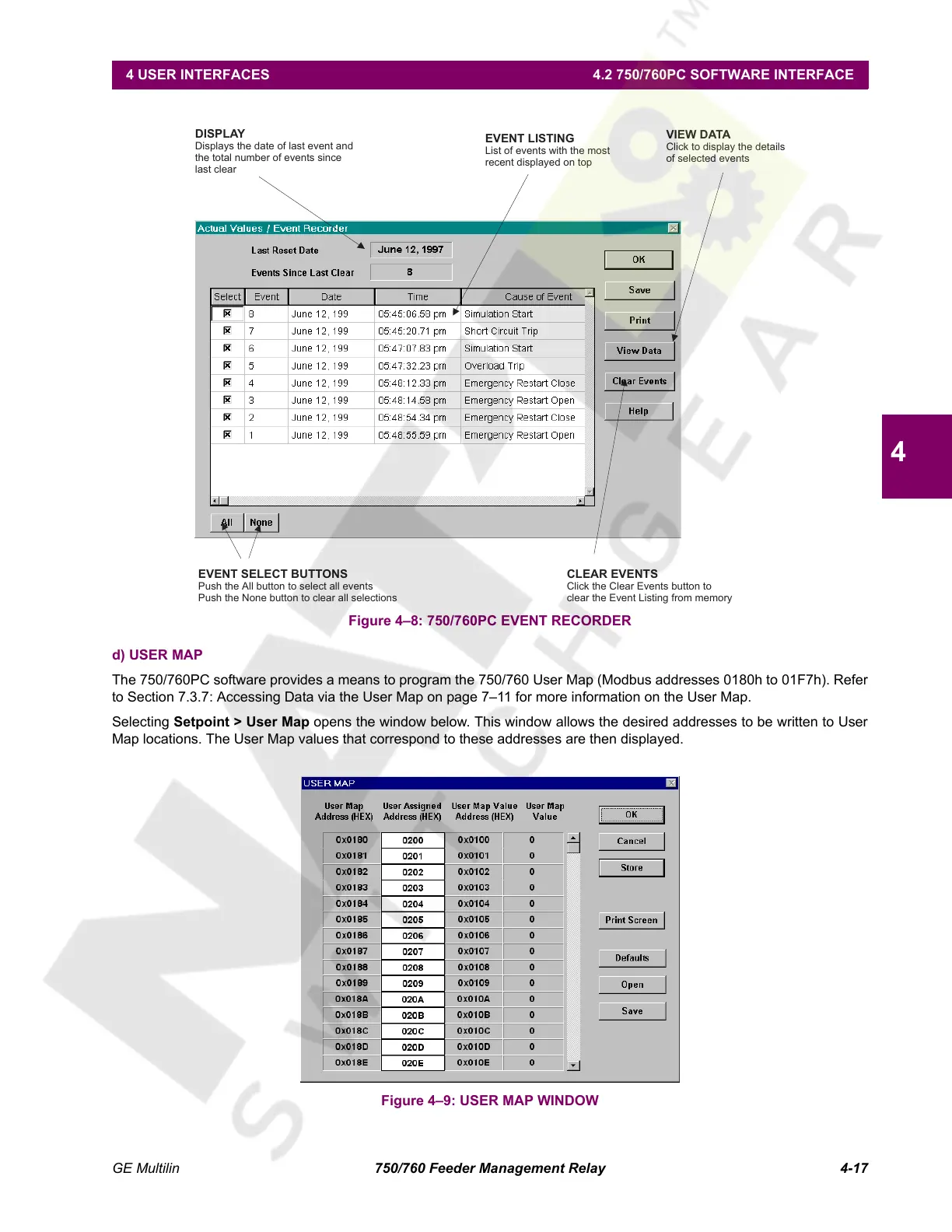

Figure 4–8: 750/760PC EVENT RECORDER
d) USER MAP
The 750/760PC software provides a means to program the 750/760 User Map (Modbus addresses 0180h to 01F7h). Refer
to Section 7.3.7: Accessing Data via the User Map on page 7–11 for more information on the User Map.
Selecting Setpoint > User Map opens the window below. This window allows the desired addresses to be written to User
Map locations. The User Map values that correspond to these addresses are then displayed.
Figure 4–9: USER MAP WINDOW
DISPLAY
Displays the date of last event and
the total number of events since
last clear
EVENT LISTING
List of events with the most
recent displayed on top
VIEW DATA
Click to display the details
of selected events
CLEAR EVENTS
Click the Clear Events button to
clear the Event Listing from memory
EVENT SELECT BUTTONS
Push the All button to select all events
Push the None button to clear all selections
Courtesy of NationalSwitchgear.com
