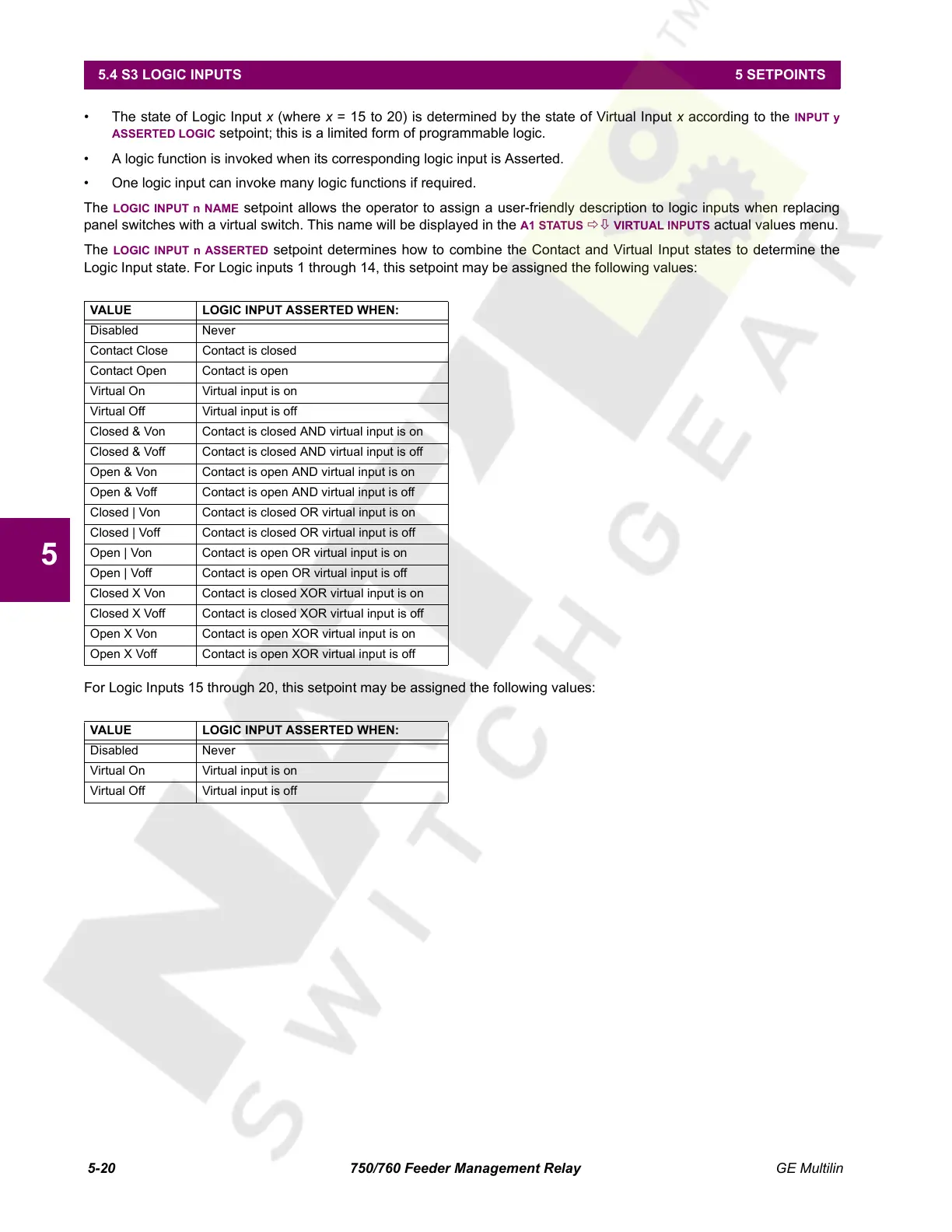

5-20 750/760 Feeder Management Relay GE Multilin
5.4 S3 LOGIC INPUTS 5 SETPOINTS
5
• The state of Logic Input x (where x = 15 to 20) is determined by the state of Virtual Input x according to the INPUT y
ASSERTED LOGIC setpoint; this is a limited form of programmable logic.
• A logic function is invoked when its corresponding logic input is Asserted.
• One logic input can invoke many logic functions if required.
The
LOGIC INPUT n NAME setpoint allows the operator to assign a user-friendly description to logic inputs when replacing
panel switches with a virtual switch. This name will be displayed in the A1 STATUS ÖØ VIRTUAL INPUTS actual values menu.
The LOGIC INPUT n ASSERTED setpoint determines how to combine the Contact and Virtual Input states to determine the
Logic Input state. For Logic inputs 1 through 14, this setpoint may be assigned the following values:
For Logic Inputs 15 through 20, this setpoint may be assigned the following values:
VALUE LOGIC INPUT ASSERTED WHEN:
Disabled Never
Contact Close Contact is closed
Contact Open Contact is open
Virtual On Virtual input is on
Virtual Off Virtual input is off
Closed & Von Contact is closed AND virtual input is on
Closed & Voff Contact is closed AND virtual input is off
Open & Von Contact is open AND virtual input is on
Open & Voff Contact is open AND virtual input is off
Closed | Von Contact is closed OR virtual input is on
Closed | Voff Contact is closed OR virtual input is off
Open | Von Contact is open OR virtual input is on
Open | Voff Contact is open OR virtual input is off
Closed X Von Contact is closed XOR virtual input is on
Closed X Voff Contact is closed XOR virtual input is off
Open X Von Contact is open XOR virtual input is on
Open X Voff Contact is open XOR virtual input is off
VALUE LOGIC INPUT ASSERTED WHEN:
Disabled Never
Virtual On Virtual input is on
Virtual Off Virtual input is off
