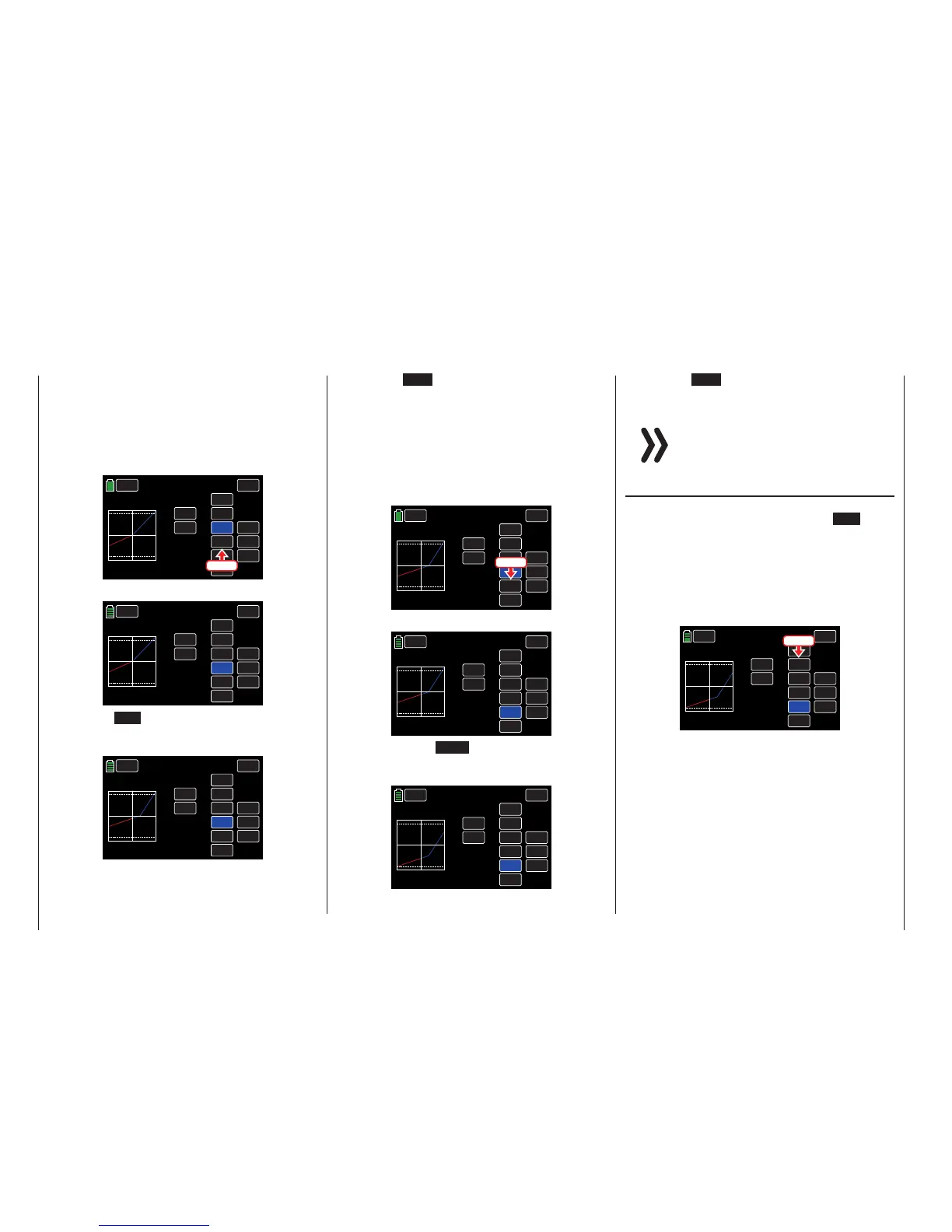

• OFFSET X
A value unequal to 000% entered in the OFFSET
X line causes the offset to shift horizontally by a
maximum of ±100%.
In the following example, the offset point needs to
be moved 30% to the right. Press the value field in
the OFFSET X line:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
000%
INC
RES
DEC
+050%
000%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press
The field highlights blue:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
000%
INC
RES
DEC
+050%
000%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press the INC button or the up arrow key ( p ) to
move the offset point 30% to the right of the cur-
rently set mixer end point:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
000%
INC
RES
DEC
+050%
+030%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press the RES button to reset the changed value
back to the default.
• OFFSET Y
A value unequal to 000% entered in the OFFSET Y
line causes the offset to shift vertically by a maxi-
mum of ±100%.
In the following example, the offset point needs
to be moved 50% to the bottom. Press the value
field in OFFSET Y line:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
000%
INC
RES
DEC
+050%
+030%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press
The field highlights blue:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
000%
INC
RES
DEC
+050%
+030%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Next, press the DEC button or the down arrow
key ( q ) to move the offset point 50% below the
currently set mixer point:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
–050%
INC
RES
DEC
+050%
+030%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press the RES button to reset the changed value
back to the default.
Attention
The curve shown aboveis for demonstration
purposes only and does notrepresent an ac-
tual mixer guide line.
Mixer Switch
Once a mixer is activated, the value fields in the ACT
and CTL lines automatically change to  ON . This
activates the relevant mixer and turns it on perma-
nently in the current phase. Refer to the Activating
and Deactivating Mixers section (page 136) for more
information.
Each mixer can be turned on and off by assigning it
a switch that has not been assigned other functions.
Press the value field in the CTL line:
BACK
CH1
A
OFFSET X
CTL
ON
+125%
–050%
INC
RES
DEC
+050%
+030%
CH3
>>
ACT
ON
B
OFFSET Y
SYM
OFF
SERVO
PHASE 1 Prog.MIX
TRIM
ON
Press
