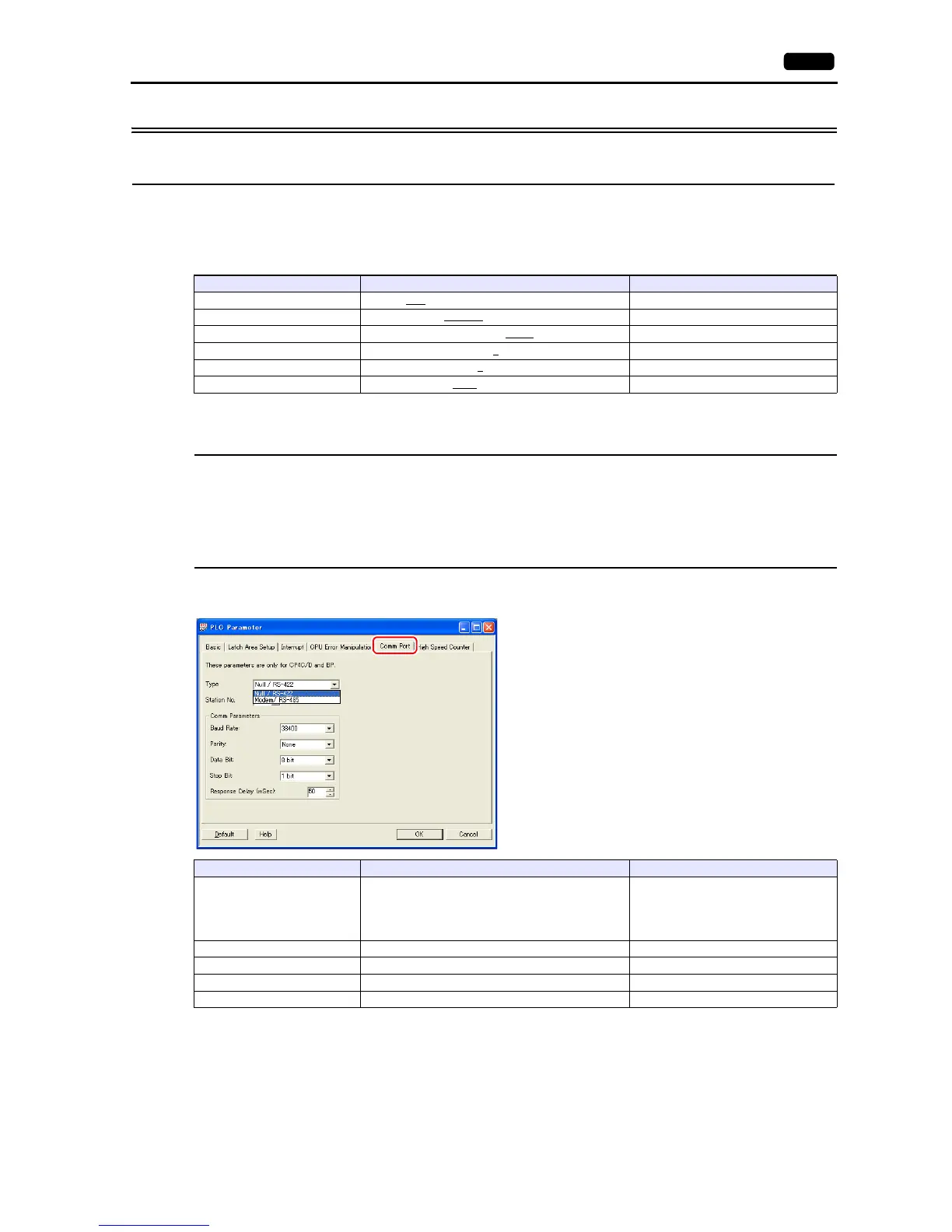

8.1 PLC Connection 8-5
8.1.2 CP Series
Communication Setting
Editor
Communication setting
(Underlined setting: default)
PLC
LOADER Port
No particular setting is necessary on the PLC.
The communication parameters are fixed; signal level: RS-232C, baud rate: 38400 bps, data length: 8 bits, stop bit: 1 bit, parity:
none.
CM1-CP4C/CM1-CP4D
Make communication settings using the application software “CICON”. For more information, refer to the instruction manual
issued by CIMON.
Item Setting Remarks
Connection Mode 1 : 1
/ Multi-link2 / Multi-link2 (Ethernet)
Signal Level RS-232C
/ RS-422/485
Baud Rate 9600 / 19200 / 38400
bps
Data Length 7 / 8
bits
Stop Bit 1
/ 2 bits
Parity None
/ Odd / Even
Item Setting Remarks
Type Null / RS-422, Modem / RS-485
RS-232C connection: Null / RS-422
RS-422 (4-wire) connection:
Null / RS-422
RS-485 (2-wire) connection:
Modem / RS-485
Baud Rate 9600 / 19200 / 38400 bps
Parity Even / Odd / None
Data Bit 7 / 8 bits
Stop Bit 1 / 2 bits
