Hakko Electronics Monitouch V9 Series - Page 214

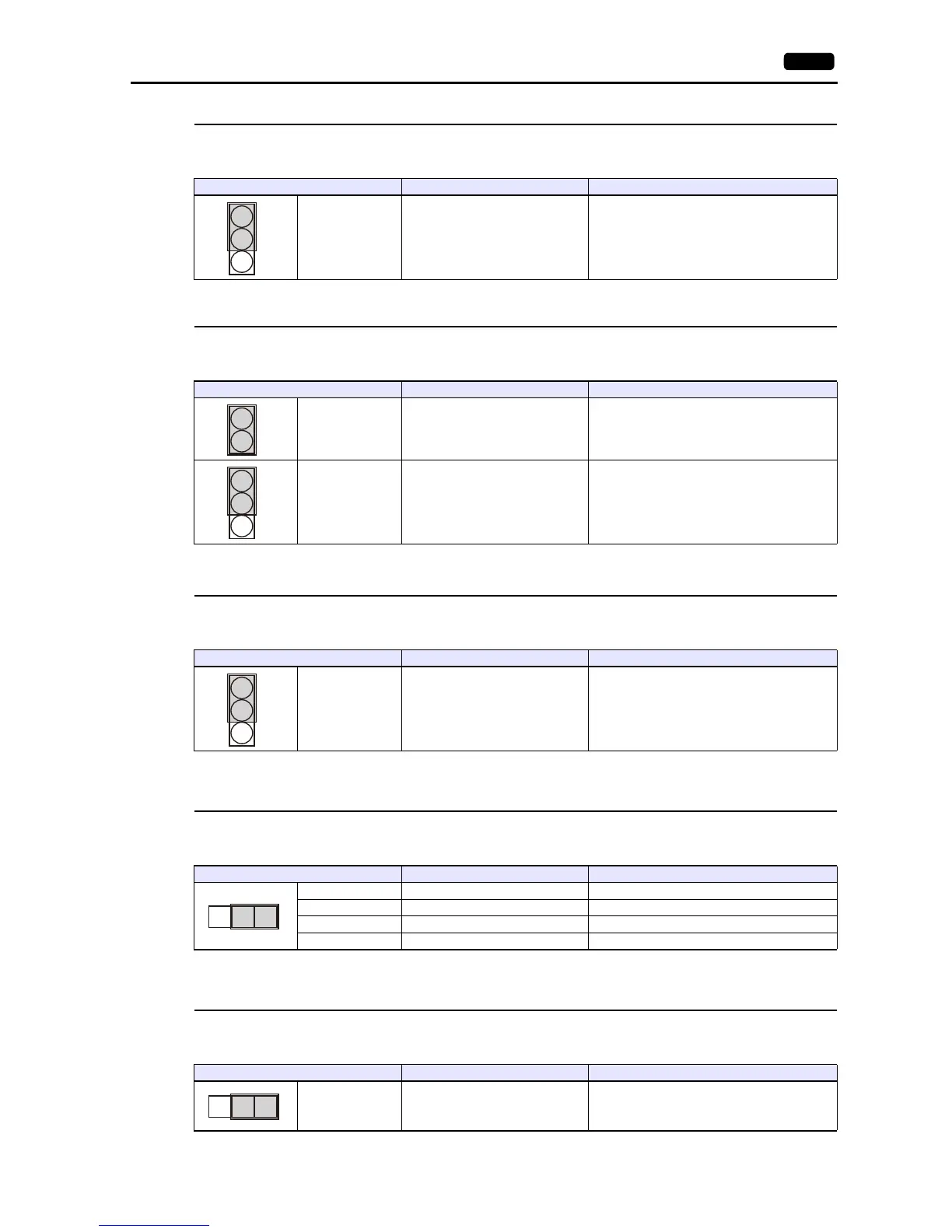

10.1 Temperature Controller/Servo/Inverter Connection 10-3
PMAC2 PCI
BASE BOARD E-POINT
Turbo PMAC PCI
MAIN BOARD E-POINT
Turbo PMAC2 PCI
BASE BOARD E-POINT
UMAC Turbo CPU
TURBO CPU BOARD E-POINT
3U Turbo MPMAC2
TURBO CPU BOARD E-POINT
E-POINT Contents Setting
E17
E18
Serial port type selection RS-232C: Install a jumper between pins 1 and 2.
E-POINT Contents Setting
E49 Parity control for serial communication No parity: Install a jumper between pins 1 and 2.
E110 Serial port setting RS-232C: Install a jumper between pins 1 and 2.
E-POINT Contents Setting
E17
E18
Serial port type selection RS-232C: Install a jumper between pins 1 and 2.
E-POINT Contents Setting
E17A PHASE+ valid/invalid Invalid: Install a jumper between pins 1 and 2.
E17B PHASE- valid/invalid Invalid: Install a jumper between pins 1 and 2.
E18A SERVO+ valid/invalid Invalid: Install a jumper between pins 1 and 2.
E18B SERVO- valid/invalid Invalid: Install a jumper between pins 1 and 2.
E-POINT Contents Setting
E17
E18
Serial port selection RS-232C: Install a jumper between pins 1 and 2.
2
1
3
2
1
2
1
3
2
1
3
231
231
